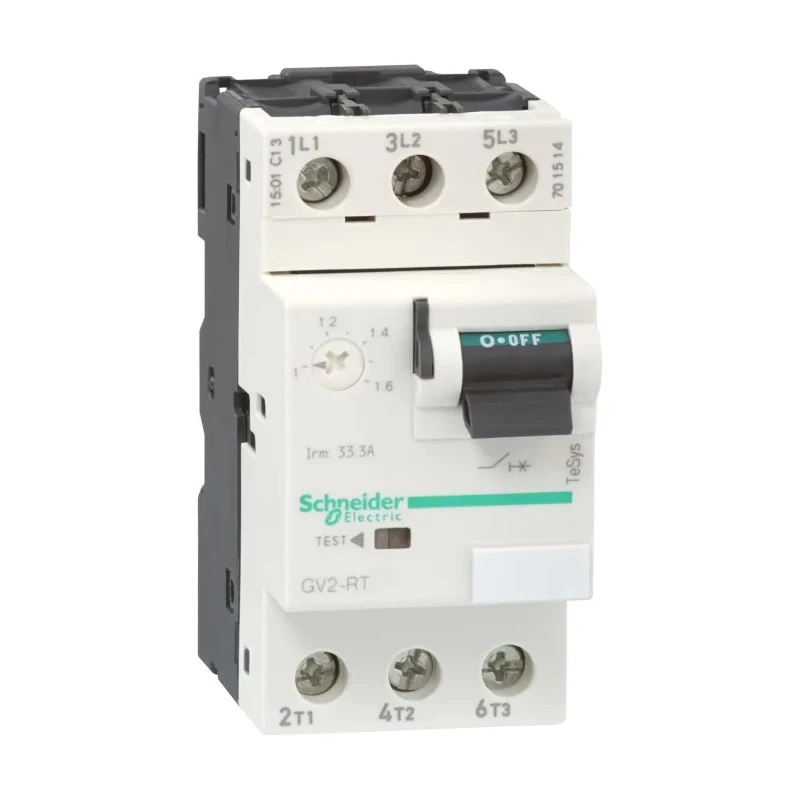

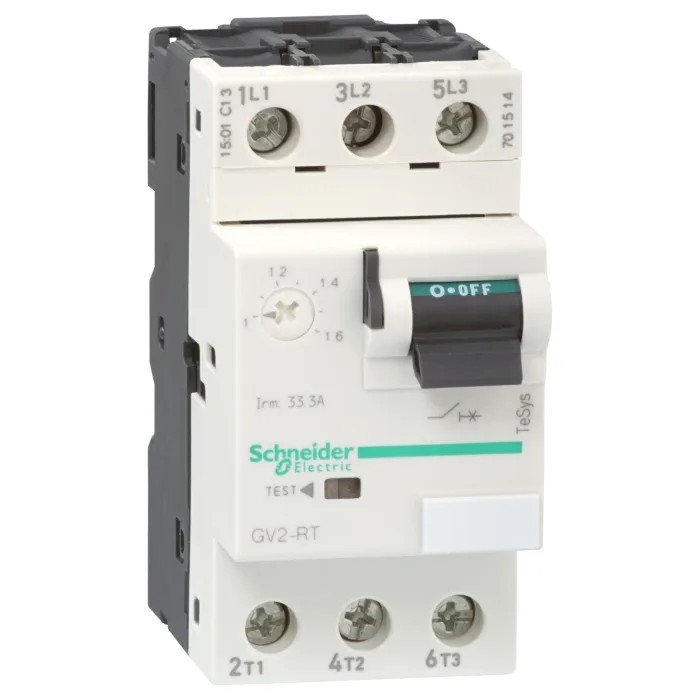

Schneider Electric Motor Protection Circuit Breaker 10A, 6A, 690V, Thermal Magnetic, 3 Poles GV2RT14

Schneider Electric GV2RT14 Motor Protection Circuit Breaker is a high-quality thermal magnetic circuit breaker designed for three-phase AC motor protection. It provides adjustable overload and short-circuit protection for motors operating on AC networks up to 690 volts.

This device features selectable thermal adjustments from 6 to 10 amperes, enabling precise overload protection tailored to your motor's requirements. The magnetic trip offers rapid interruption at 200 amps to protect against short circuits. With a breaking capacity of up to 100 kA, it is well-suited for environments with high fault currents.

The three-pole configuration provides coordinated safeguarding for three-phase motor circuits. Its compact manual motor-starter design facilitates easy integration into control panels or DIN-rail setups. The device secures electrical connections with screw-clamp terminals tightened to 1.7 N·m torque, ensuring reliable conductor contact.

Engineered with an IP20 rated enclosure, the GV2RT14 protects users from accidental contact while maintaining solid object ingress resistance. It operates reliably across a wide temperature range from -20 °C to 60 °C, suitable for diverse industrial and commercial settings.

Certified to multiple standards such as EN/IEC 60947-2, DNV GL, CSA, CCC, BV, ATEX, REACH/RoHS, and UL, this breaker delivers trusted performance worldwide. It supports continuous operation with 100,000 mechanical and electrical cycles for AC-3 duty at 415 volts, providing durability for demanding applications.

Applications include industrial automation motor panel protection, retrofit motor safeguarding with DIN rail compatibility, electrical distribution boards, and transformer secondary protection.

This motor protection unit's reliable performance, robust construction, and ease of installation make it an essential component for protecting electrical motor systems in industrial, manufacturing, HVAC, and commercial environments.

Adjustable thermal overload protection delivers precise current safeguarding. Rapid short-circuit interruption with 200A magnetic trip capability. High breaking capacity up to 100kA supports fault events in industrial setups.

Three-pole design enables comprehensive three-phase motor protection. DIN-rail clip mounting and panel adaptor plate provide installation flexibility. IP20 enclosure rating ensures user safety and equipment protection. Wide ambient operating temperature range from -20°C to 60°C.

Complies with international standards ensuring application compliance. 100,000 mechanical and electrical operation cycles for long service life. Explore extensive Motor Protection Circuit Breaker options and Schneider Electric products through EnvMart for optimal electrical system safeguardings.
