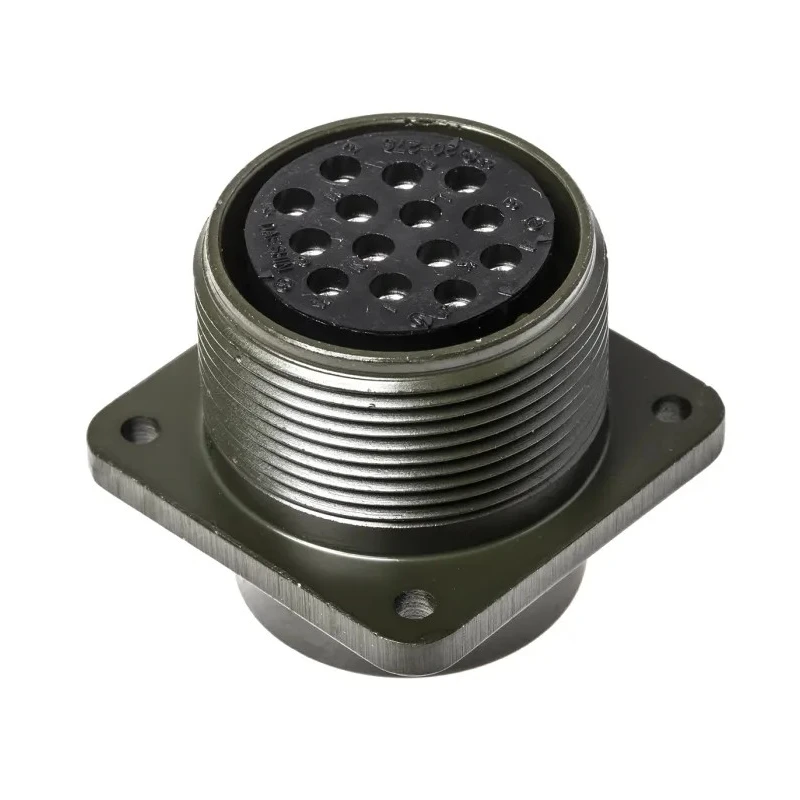

Amphenol Industrial MIL Spec Circular Connector Box Mount 14 Way Female Connector, Copper Alloy, Straight, 500-700V, MS3102A
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Industrial |
| Colour | Black |
| Orientation | Straight |
| Model | MS3102A |
| Mount Type | Box Mount |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | MS3102A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |

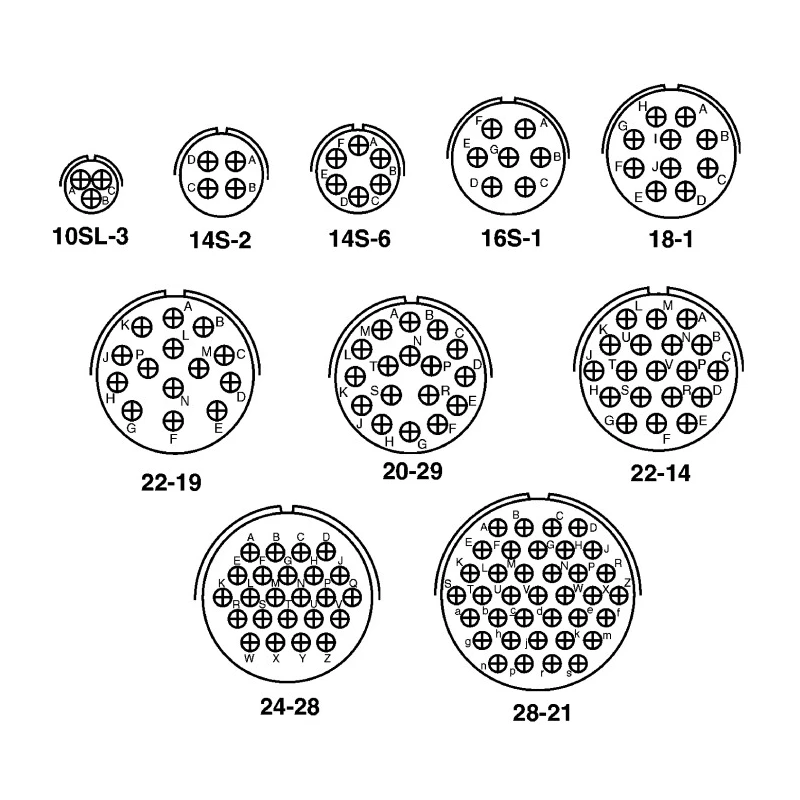

| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 20 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- The connector features 14 female contacts with copper alloy material and silver plating for excellent conductivity.
- It operates at 500 to 700 volts AC and withstands temperatures from -55°C to 125°C.
- The housing is constructed of aluminum alloy with a zinc cobalt plated shell for enhanced corrosion resistance.
- It utilizes a screw coupling mating type with threaded coupling and keying to prevent mismating.
- The straight orientation connector includes strain relief and standard shell size 20 for typical mounting requirements.
- Designed to MIL-DTL-5015 military specification for rugged and reliable performance.
- Intended for use in communication equipment, computers, shipboard installations, and ground support systems.
- This box mount circular receptacle is known for high dielectric strength due to resilient rubber inserts.
Product Description
Amphenol Industrial MS3102A MIL Spec Circular Connector is a 14 way female, straight, box mount circular connector designed to meet the demanding MIL-DTL-5015 military standard. Constructed with a high-grade aluminum alloy housing and a zinc cobalt plated shell, it offers exceptional durability and corrosion resistance for industrial and military applications.
The connector supports operating voltages between 500 and 700 volts AC and functions reliably across a broad temperature range of -55°C to 125°C. The female contacts are made from copper alloy with silver plating, ensuring excellent electrical conductivity and longevity.
This MS3102A series connector features threaded screw coupling with single key and keyway polarization to ensure precise and secure mating, preventing accidental mismating. The resilient synthetic rubber inserts provide high dielectric strength and vibration resistance, which are critical in harsh environments.
Ideal for applications such as communication systems, computer equipment, shipboard installations, and ground support systems, these connectors are designed to withstand mechanical forces and environmental stresses without degradation in performance.

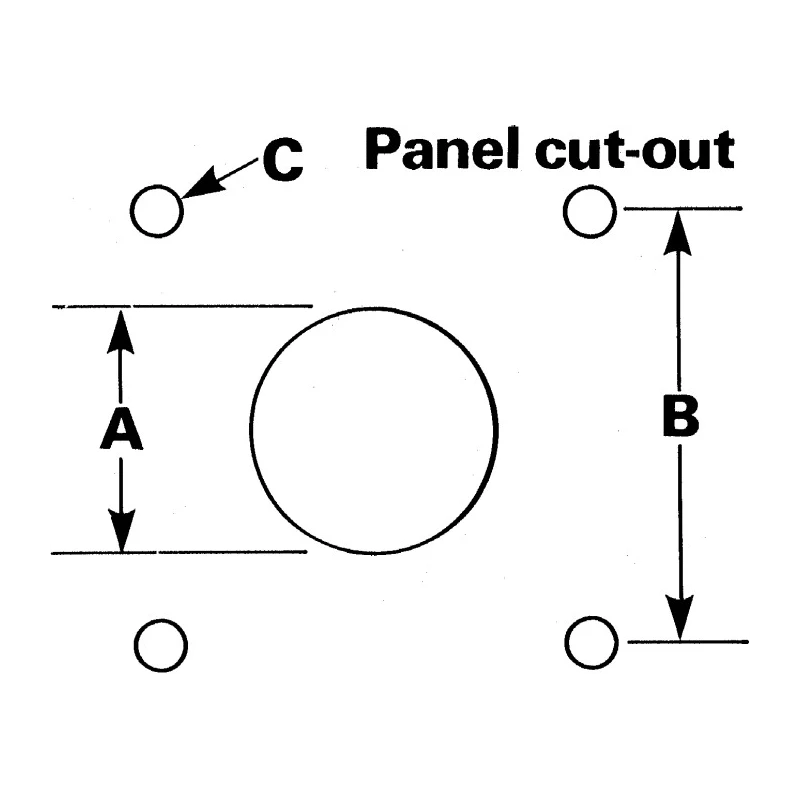

The box mount style allows easy integration into equipment cases or boxes where no additional cable support is needed. The standard shell size 20 and strain relief features enhance the connector's installation flexibility and mechanical reliability.
Durable MIL-DTL-5015 rated circular connector for military and industrial use. 14 female contacts with silver plated copper alloy for excellent conductivity. High-grade aluminum alloy housing with zinc cobalt plating for corrosion resistance.
Operates between -55°C to 125°C and 500 to 700V AC voltage rating. Threaded screw coupling with keying prevents mismating. Rubber inserts provide high dielectric strength and vibration resistance. Suitable for communication, computing, shipboard, and ground support equipment.
Box mount configuration with standard shell size 20 and strain relief. Explore the extensive collection of Mil Spec Circular Connectors on EnvMart for reliable industrial-grade connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 500 to 700 volts AC.
It can operate reliably within a temperature range of -55°C to 125°C.
The connector features 14 female contacts.
The housing is made of aluminum alloy, while the contacts are made from copper alloy with silver plating for improved conductivity.
It utilizes a screw coupling mating type with keying to prevent mismating.
This unit has a standard shell size of 20.
This connector is designed for box mount applications.
It is designed to meet the MIL-DTL-5015 military specification.
It is intended for use in communication equipment, computers, shipboard installations, and ground support systems.
The termination type for the contacts is solder.
The connector is colored black.
The country of origin for this connector is the Czech Republic.
