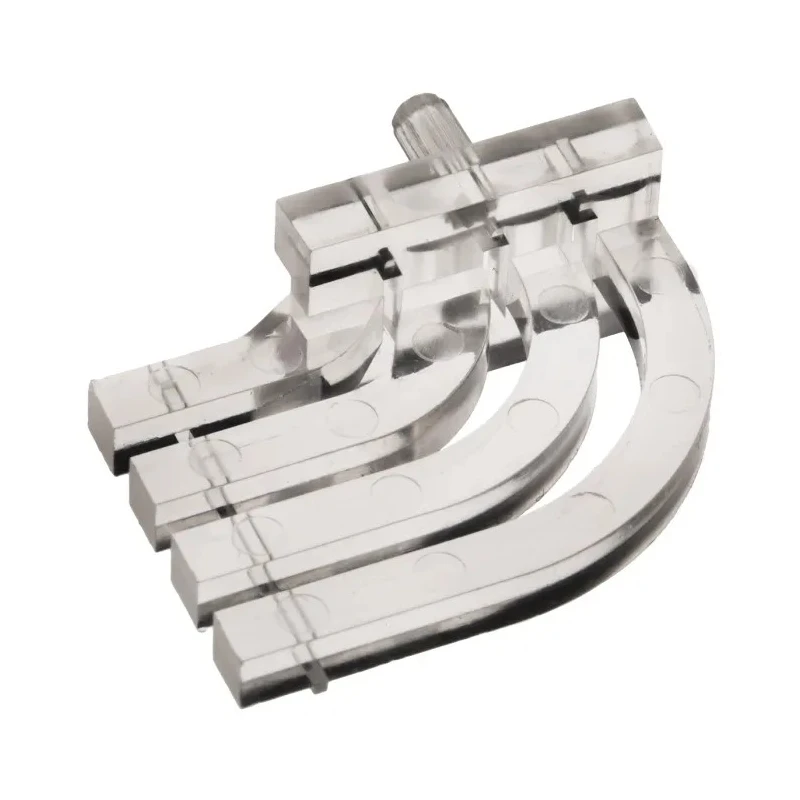

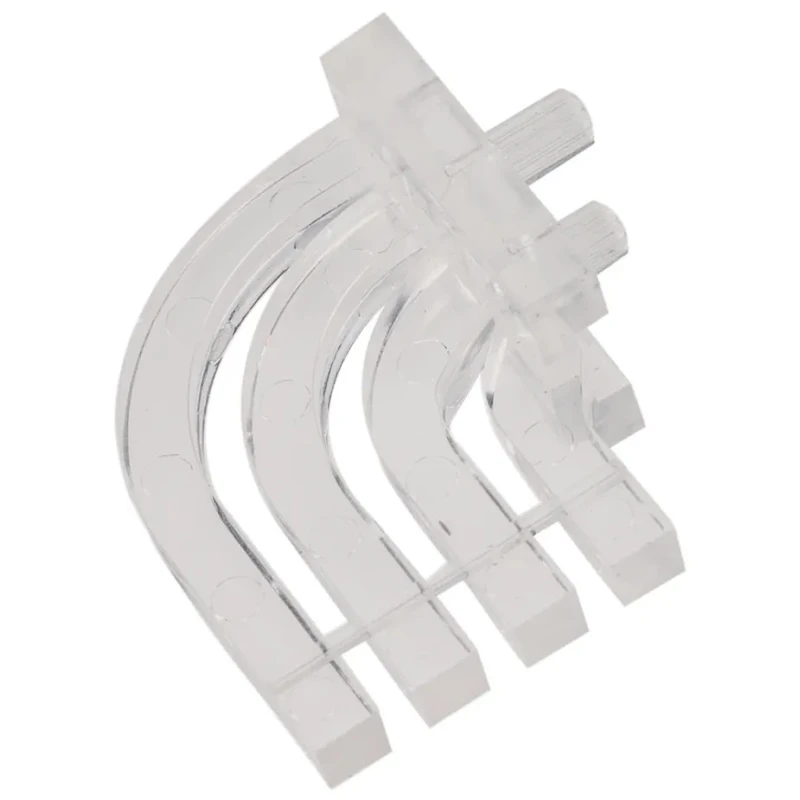

Dialight PCB 4-Way Right Angle Rigid LED Light Pipe Clear 3.1 mm 515-1023F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Orientation | Right Angle |
| Length | 28.75mm |
| Model | 515-1023F |
| Number Of Ways | 4 |
| Mount Type | PCB |
| Series | Optopipe |
| Outside diameter | 4.2mm |
| Standards/Approvals | RoHS |
| Flexible/Rigid | Rigid |
| Lens Size | 3.1 mm |
| Light Pipe Shape | Square |
| Number of Light Pipes | 4 |
| Configuration Rows x Columns | 4 x 1 |
| 515-1023 Dialight, LED Light PipeBrand | Dialight |
| Mentor GmbH Press-In 40-Way Right Angle Rigid LED Light Pipe ClearBrand | Mentor GmbH |
Key Features
- Constructed from high transmissivity polycarbonate for efficient light transmission.
- Right angle design supports compact PCB layouts.
- Features four rigid light pipes arranged in a 4 x 1 configuration.
- Compatible with PLCC-2 and PLCC-4 package SMT LEDs.
- Offers ESD protection to isolate circuits from front panel interference.
- Complies with UL94V-0 flammability standard for safety and reliability.
- Square light pipe shape with an outside diameter of 4.2 mm.
- Press-fit mount style secures the light pipe to the PCB without adhesives.
Product Description
Dialight 515-1023F is a rigid LED light pipe designed for PCB mounting and featuring a right angle orientation with a lens size of 3.1 mm. This clear, 4-way light pipe is part of Dialight's Optopipe™ series, known for its high-performance optical light transmission and compact form factor suitable for MicroLED SMD LEDs assemblies.
Made of high transmissivity polycarbonate material, the 515-1023F light pipe ensures minimal light loss while protecting delicate circuits through ESD isolation. Its right angle geometry enables efficient use of space on printed circuit boards, accommodating dense electronic designs.
The product features four light pipes arranged in a single row (4 x 1 configuration), each with a square cross-section and an outside diameter of 4.2 mm. It is specifically designed to house PLCC-2 and PLCC-4 package SMT LEDs, facilitating easy integration into various electronic devices requiring reliable visual indicators or displays.
The press-fit mount type secures the light pipe firmly to the PCB without the need for additional adhesives, simplifying assembly and maintenance. Moreover, the product meets the UL94V-0 flammability standard, ensuring enhanced safety and durability in industrial and commercial settings.
This LED light pipe is RoHS-compliant, supporting eco-friendly manufacturing and regulatory requirements. Industrial applications include electronic components manufacturing, power and connector displays, optoelectronics assemblies, and automotive or consumer electronics that require precise and efficient light guidance.
Constructed from high transmissivity polycarbonate for efficient light transmission. Right angle design supports compact PCB layouts. Features four rigid light pipes arranged in a 4 x 1 configuration. Compatible with PLCC-2 and PLCC-4 package SMT LEDs.
Offers ESD protection to isolate circuits from front panel interference. Complies with UL94V-0 flammability standard for safety and reliability. Square light pipe shape with an outside diameter of 4.2 mm. Press-fit mount style secures the light pipe to the PCB without adhesives.
Explore more products in the LED Lighting Components category at EnvMart to find compatible lighting solutions from reliable brands such as Dialight.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The lens size of this model is 3.1 mm.
This unit features four light pipes arranged in a 4 x 1 configuration.
The outside diameter of the light pipe is 4.2 mm.
It uses a press-fit mount style to secure the light pipe to the PCB without adhesives.
It is compatible with PLCC-2 and PLCC-4 package SMT LEDs.
The light pipe is constructed from high transmissivity polycarbonate for efficient light transmission.
This model complies with the UL94V-0 flammability standard for safety and reliability.
The length of this light pipe is 28.75 mm.
The orientation of this model is right angle, which supports compact PCB layouts.
Yes, it offers ESD protection to isolate circuits from front panel interference.
The country of origin for this product is India.
This model is part of the Optopipe series.
