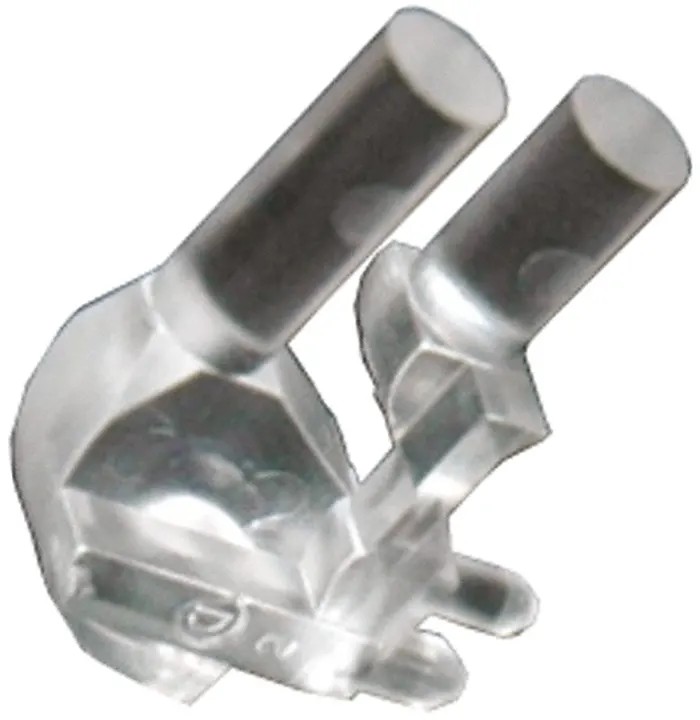

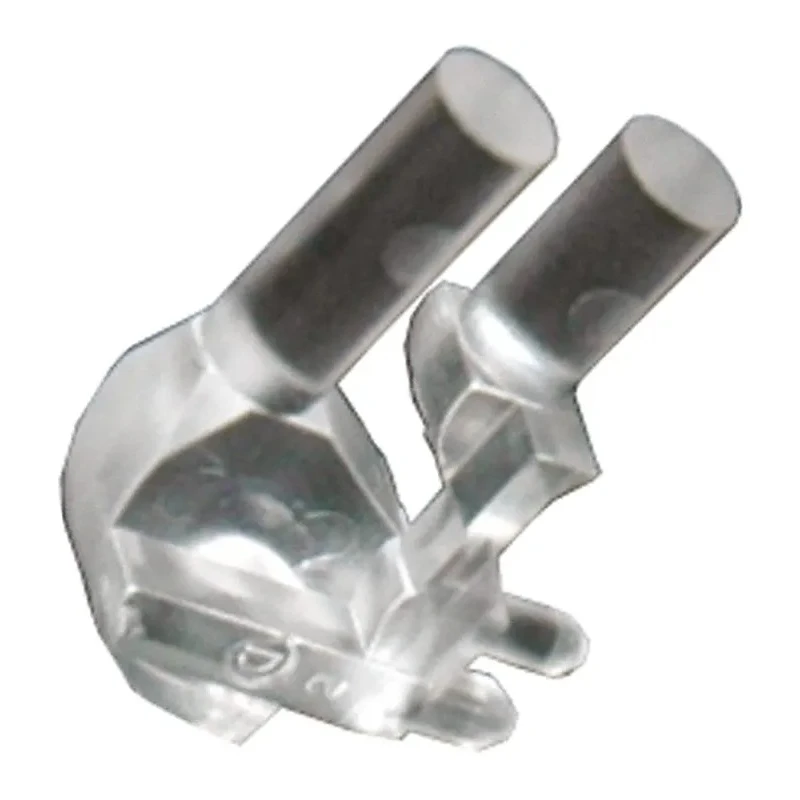

Dialight PCB 2-Way Right Angle Rigid LED Light Pipe Clear 3.5 mm 515-1094F

Dialight 515-1094F PCB 2-Way Right Angle Rigid LED Light Pipe is a high-quality optical component engineered for use with MicroLEd® SMD LEDs. Featuring a rigid polycarbonate body with high transmissivity, this LED light pipe is designed with a clear lens of 3.5 mm size and an overall length of 17.9 mm. Its right angle orientation allows optimal light direction on printed circuit boards (PCBs), enabling effective illumination performance in compact electronic assemblies.

The product can house two LEDs within its round light pipe design and provides ESD protection, which ensures circuit isolation from the front panel, enhancing product reliability in harsh operating conditions. The light pipe's rigid configuration supports secure press-fit mounting on PCBs, simplifying installation processes while maintaining robust mechanical retention.

Compliant with RoHS standards, the 515-1094F model belongs to Dialight's Optopipe™ Series, which is recognized for high durability and wide viewing angles to meet complex lighting requirements. Suitable for use in industrial, laboratory, manufacturing, and electronic equipment applications, this component enables precise LED light guiding and distribution with minimal insertion costs when used in light pipe arrays.

Its compatibility with PLCC-2 and PLCC-4 package SMT LEDs broadens its applicability across various advanced electronic products. The compact dimensions and strict technical standards make this product an essential part of LED lighting components for electronic and electrical manufacturers.

Rigid polycarbonate construction ensures durability and high transmissivity. Designed for PCB mounting with press-fit for secure installation. Houses two LEDs with a round light pipe shape for wide viewing angles. Offers ESD protection for circuit isolation from the front panel.

Complies with RoHS standards ensuring environmental safety. Length of 17.9 mm and outside diameter of 3 mm for compact design integration. Compatible with PLCC-2 and PLCC-4 package SMT LEDs in Optopipe series. Right angle orientation aids in efficient LED light routing on PCB.

Ideal for industrial and electronic component applications requiring precise LED illumination.

This Dialight LED Light Pipe model 515-1094F is engineered to meet the rigorous demands of advanced electronics assembly lines and lighting component manufacturing. Browse related LED Lighting Components and other Dialight products to find precise optical solutions for your industrial and laboratory needs at EnvMart.
