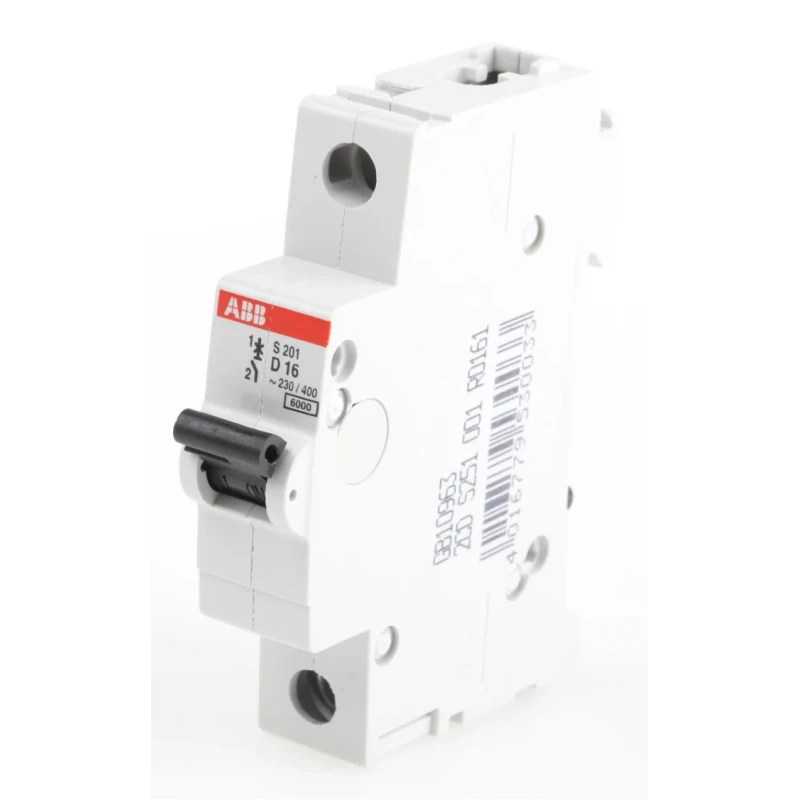

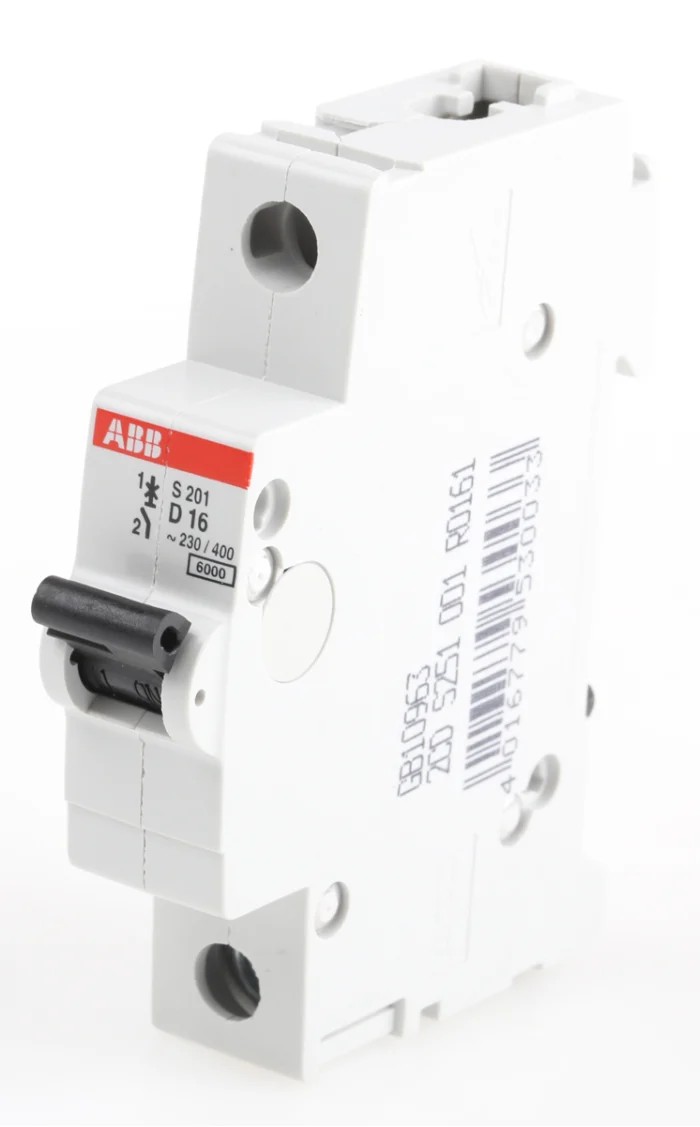

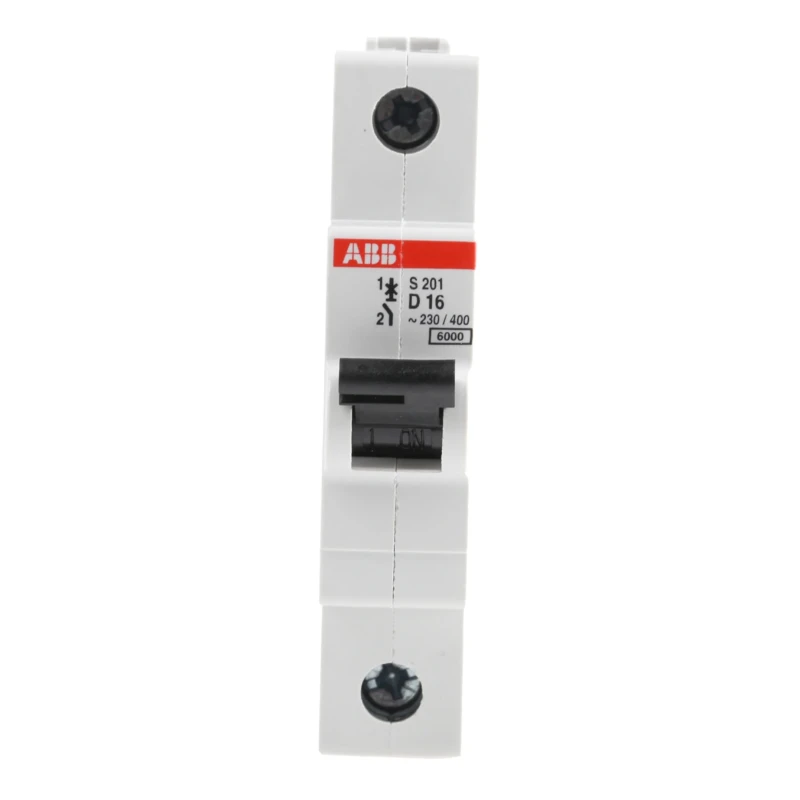

ABB System Pro M Compact Miniature Circuit Breaker 1-Pole 16A Type D 253V AC 72V DC 6kA Breaking 2CDS251001R0161 S201-D16

ABB 2CDS251001R0161 S201-D16 Miniature Circuit Breaker is a high-performance device designed for effective protection of single-phase electrical circuits against short circuits and overloads. With a current rating of 16A, it handles high currents efficiently while the Type D tripping characteristic provides delayed instantaneous tripping suitable for inductive loads and motor protection.

This MCB operates at rated voltages of 253V AC and 72V DC, making it versatile for various industrial, commercial, and residential power distribution applications. It installs quickly on standard DIN rails using screw terminals, ensuring secure and stable electrical connections.

The device features an IP40 and IP20 rating, protecting internal components from solid object ingress, suitable for controlled environments. The low power loss of just 2W enhances energy efficiency, aligning with sustainable energy goals.

Robust mechanical endurance of 20,000 operation cycles ensures longevity even under frequent switching. It withstands impulse voltages of up to 4kV, protecting sensitive components from voltage spikes. The operating temperature range from -25°C to +55°C supports performance in both cold and hot climates.

It features clear red and green ON/OFF position indicators simplifying operation and status monitoring. Manufacturing standards compliance includes IEC/EN 60947-2 and IEC/EN 60898-1, reflecting high safety and quality benchmarks.

Typical applications include process and packaging equipment, commercial buildings, and residential electrical protection systems where reliable short circuit safeguarding is essential.

Single-pole design suitable for single-phase networks. Rated current of 16A for high-current applications. Type D tripping characteristic for delayed instantaneous trip. Breaking capacity of 6kA ensures safe interruption under fault conditions.

Rated voltage of 253V AC and 72V DC for versatility. Mounts easily on DIN Rail with screw terminal type. IP40 and IP20 rated for protection against ingress. Low power loss of 2W contributes to energy efficiency. Mechanical endurance rated for 20,000 cycles guarantees long-term reliability.

Operating temperature range from -25°C to +55°C for demanding environments. Explore more ABB System Pro M Compact series products for advanced electrical protection solutions that optimize safety and energy management in your facilities.
