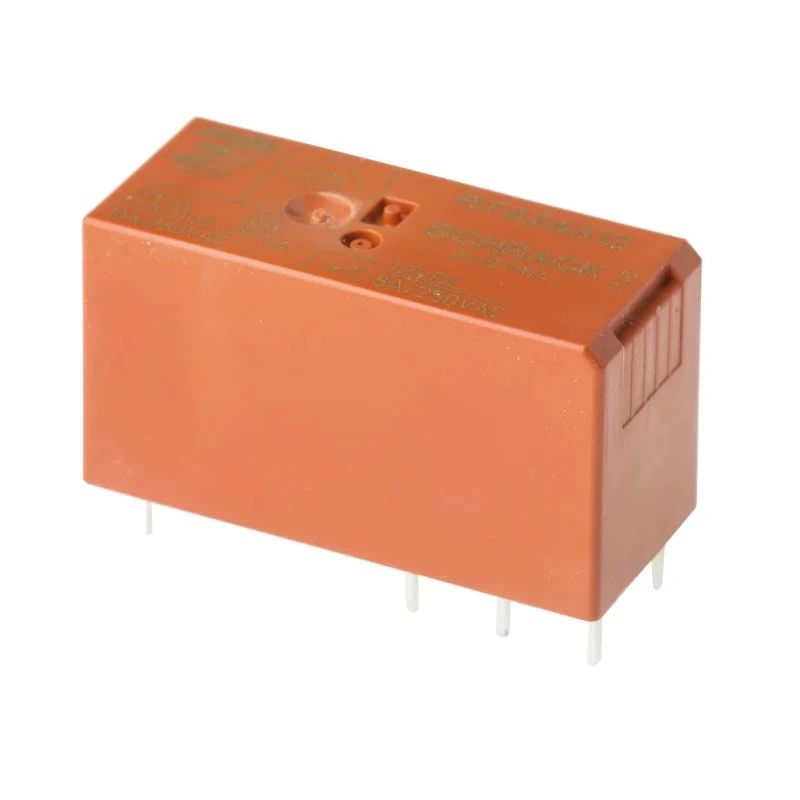

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RT424A12

TE Connectivity RT424A12 is a high-quality PCB power relay designed for industrial and electrical applications requiring reliable switching performance.

With a coil voltage of 12V DC and a switching current capacity of 8A, this relay features a double-pole double-throw (DPDT) contact configuration suitable for complex circuit switching needs.

The relay is part of the SCHRACK series which offers enhanced reinforced insulation and flux-proof construction, making it resistant to mechanical shocks (up to 100g destructive). This ensures dependable operation in harsh industrial environments.

Constructed with silver alloy contact materials, the relay guarantees low contact resistance and longevity, providing consistent electrical performance over repeated cycles.

The coil resistance is measured at 360 ohms, optimizing power consumption and response time. The relay supports switching AC voltages up to 400V AC and a maximum switching power of 2 kVA.

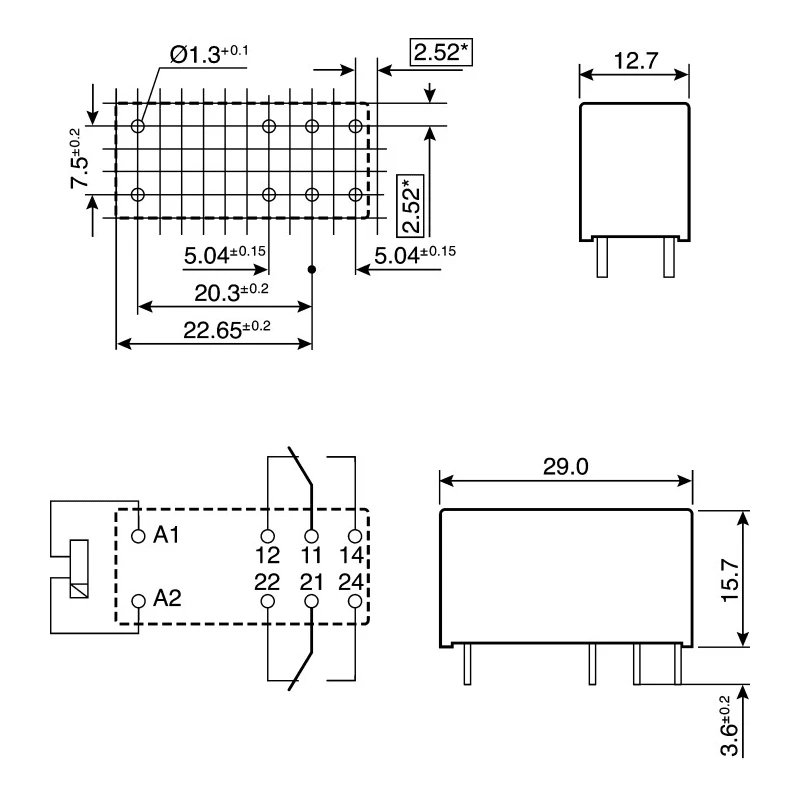

Its compact PCB mount design with dimensions 29mm (L) x 15.7mm (H) x 12.7mm (W) and solder-type terminals facilitate easy integration into printed circuit boards and diverse control panels.

Operating temperature range from -10°C to 85°C makes it suitable for demanding environments including industrial automation, power control systems, and manufacturing equipment. Certified to comply with RoHS, the relay is manufactured in Austria, ensuring high-quality standards and environmental compliance.

This TE Connectivity RT424A12 relay is widely used in industrial, commercial, and automation settings for switching and controlling electrical loads efficiently and safely. This power relay features a compact PCB mount design suitable for electrical and automation applications.

Its SCHRACK series provides reinforced insulation and shock resistance for reliable operation. The relay coil resistance is 360 ohms supporting 12V DC coil voltage. Contact materials are silver alloy ensuring low contact resistance and durability.

Operating temperature ranges from -10°C minimum to 85°C maximum for versatile environmental use. This relay supports switching AC voltage up to 400V AC and switching power of 2 kVA. Terminal type is solder, providing secure connections on PCB assemblies.

The product dimensions are 29mm length, 15.7mm height, and 12.7mm width. It complies with RoHS standards and is manufactured in Austria. Ideal for industrial control, manufacturing automation, and electronic circuit switching applications.
