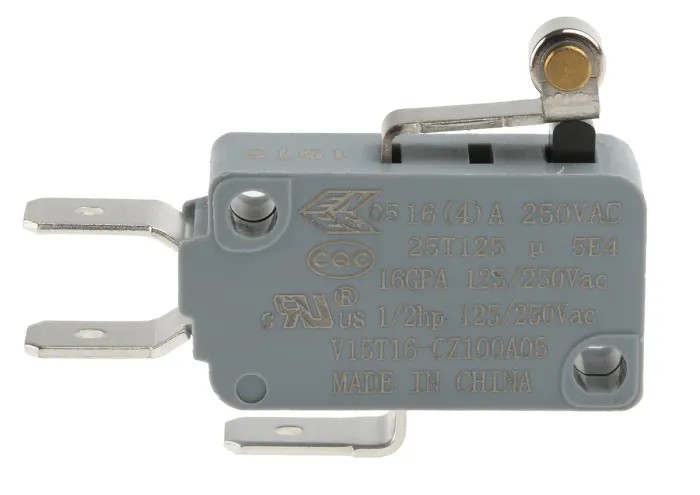

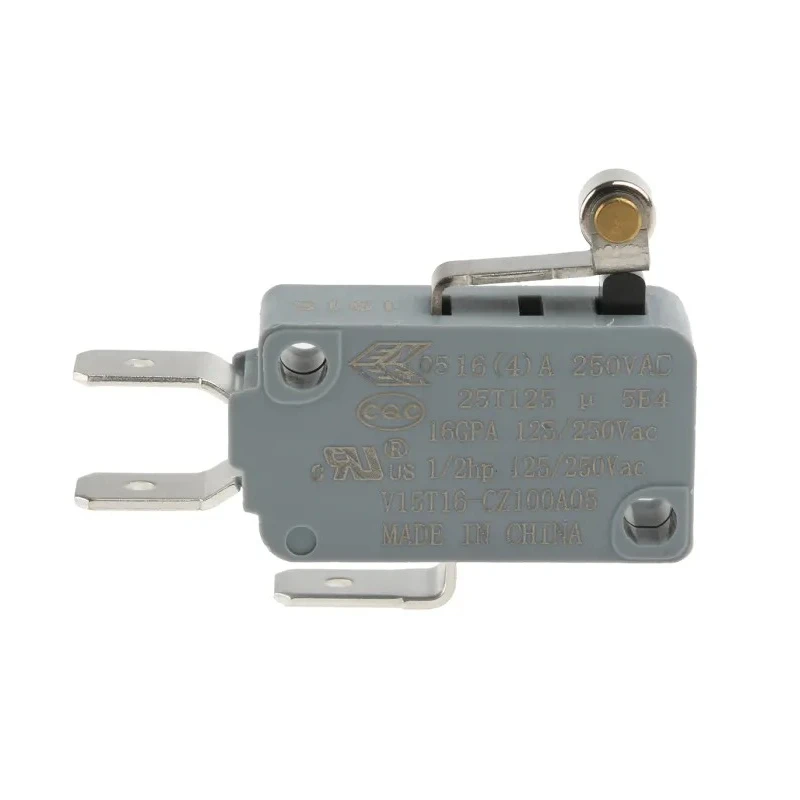

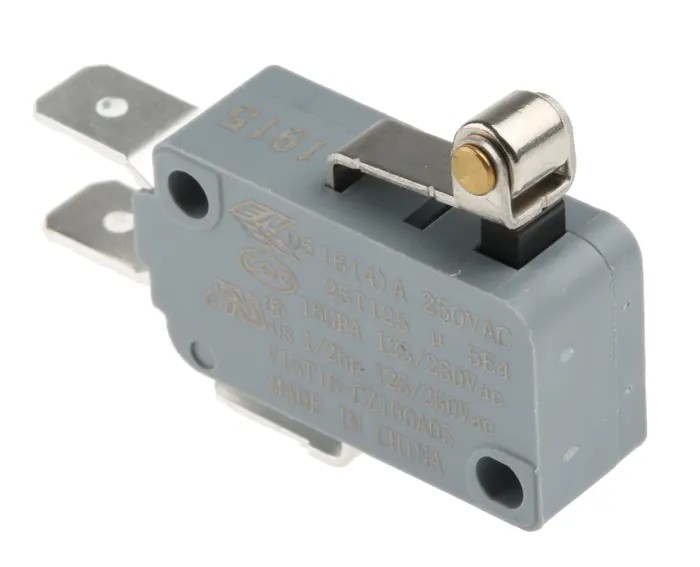

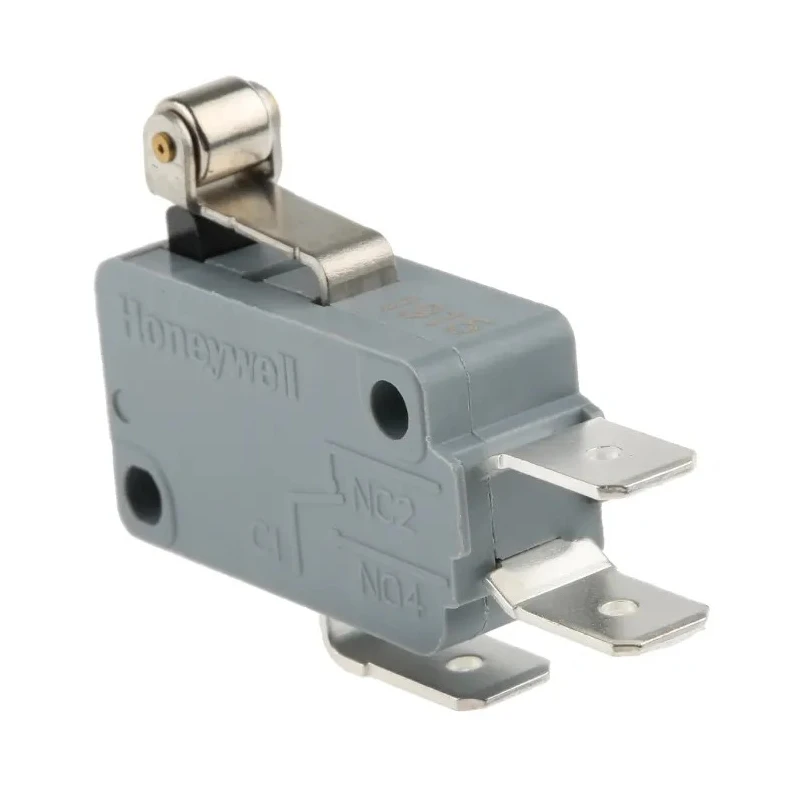

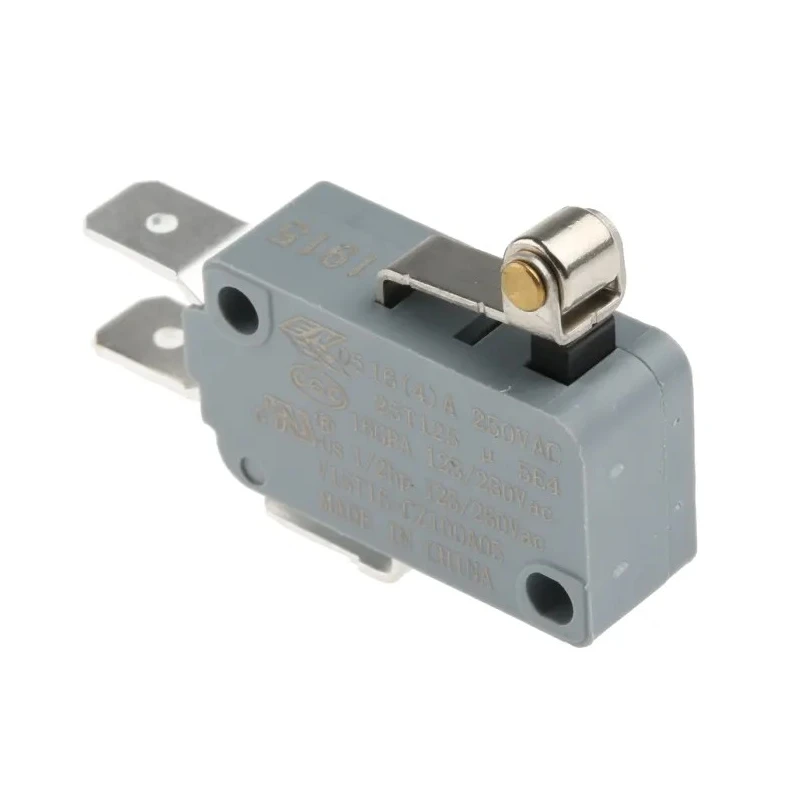

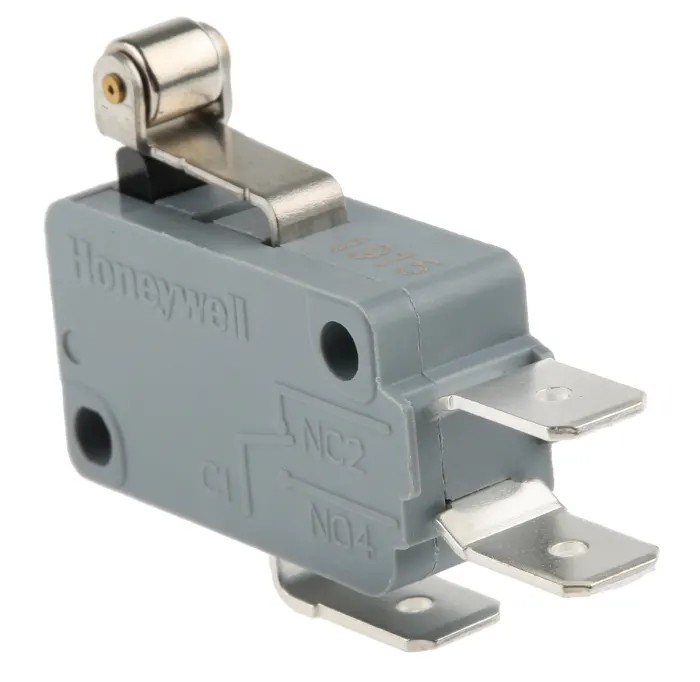

Honeywell Technologies Short Roller Lever Micro Switch, Tab Terminal, 16A, 250V AC, SPDT V15T16-CZ100A05

Honeywell V15T16-CZ100A05 Micro Switch with a short roller lever actuator is engineered for precise and reliable changeover switching in electrical and industrial systems. It features a robust 16 amp switch contact current at 250 volts AC, configured as a single-pole double-throw (SPDT) contact layout, making it ideal for a wide range of control applications.

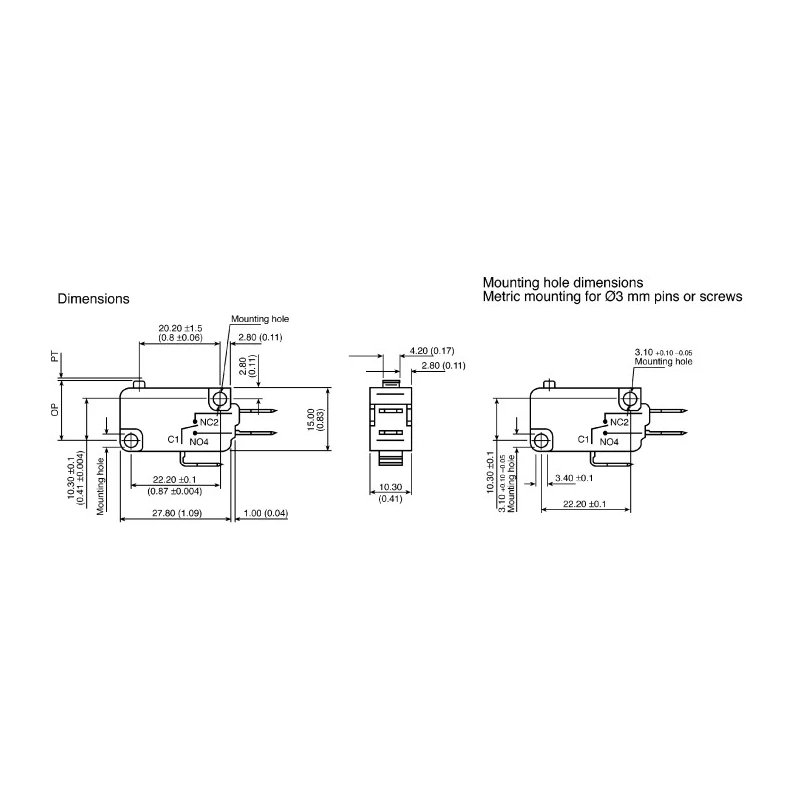

The micro switch housing is constructed from high-performance Polybutylene Terephthalate (PBT), offering excellent resistance to thermal and electrical stresses. This ensures durability and stable operation even in demanding conditions. Its compact dimensions of 27.8 mm length, 10.3 mm width, and depth allow easy integration into control panels and machinery assemblies.

With an operating temperature range spanning from -25 to 125 degrees Celsius, this switch is suitable for use across various temperature environments including cold storage and elevated heat areas. Its mechanical lifetime of up to five million operations supports extended reliability and decreased downtime in critical switching roles.

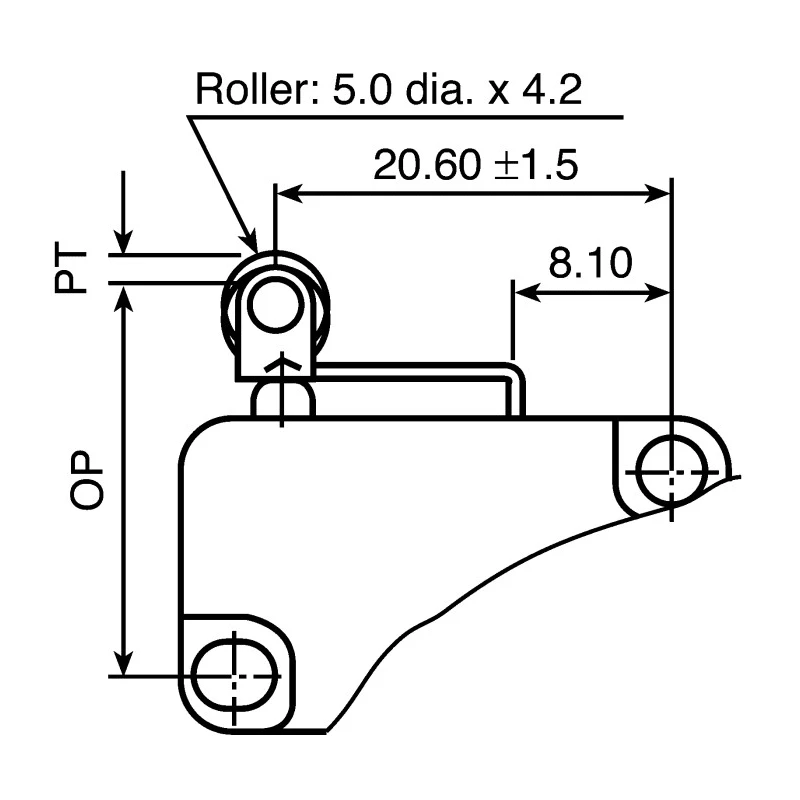

The short roller lever actuator facilitates smooth mechanical action and precise contact engagement, supporting consistent and repeatable switching cycles. Its quick-connect tab terminals enable rapid field wiring and replacement, enhancing maintenance convenience.

Honeywell's V15 series micro switches are widely used in limit switching for automated production equipment, motor starters for end-of-travel sensing, safety interlock controls in industrial enclosures, and retrofit applications requiring compact, mains-capable switches. This particular model meets multiple international approvals including UL, ENEC, cUL, and CQC, assuring compliance with safety and performance standards.

This micro switch features a short roller lever actuator for reliable and repeatable mechanical switching. It supports a switching current of 16 amps and is rated for 250 volts AC tolerance. The contact configuration is single-pole double-throw, suitable for versatile switching needs.

The housing is made from durable Polybutylene Terephthalate (PBT) thermoplastic material resistant to thermal stress. It has a long mechanical life rated at 5 million operations, reducing maintenance frequency. Operating temperature range is from -25°C up to 125°C, suitable for harsh environments.

Designed with quick-connect tab terminals allowing fast installation and easy field replacement. Complies with international safety standards including UL, ENEC, cUL, and CQC for quality assurance.

This micro switch assembly is especially beneficial for industrial automation, manufacturing controls, HVAC systems, and electrical panel integration, offering high reliability and ease of maintenance. Browse the Electronics & Electricals - Switches & Sockets categories on EnvMart for more quality Micro Switch products and components.
