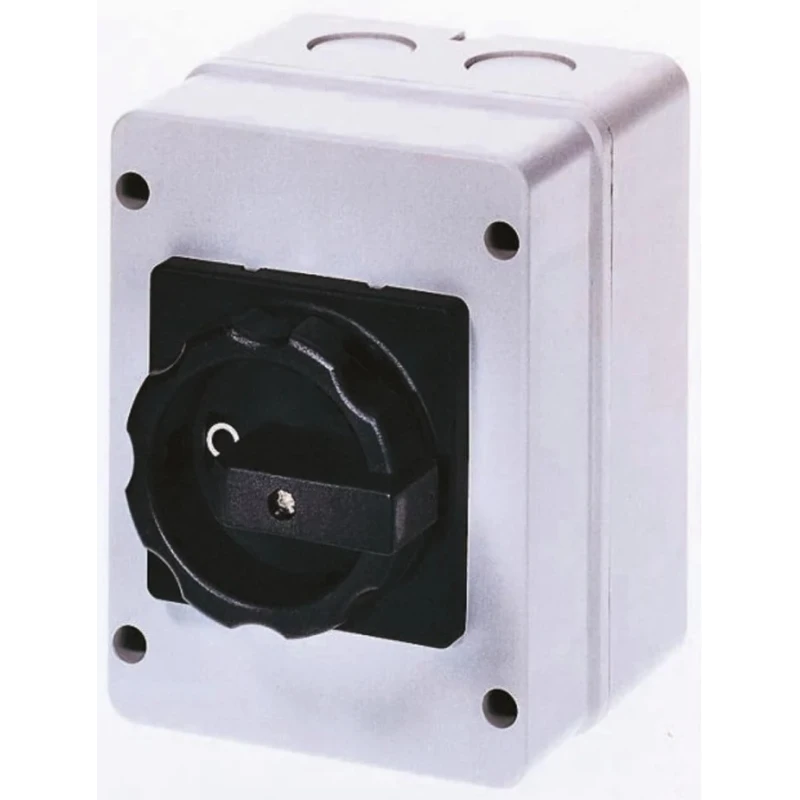

Siemens 3-Pole Front Isolator Switch 63A 22 kW IP65 690V AC

Siemens 3LD2565-0TB51 3-Pole Front Isolator Switch is engineered to provide high reliability and robust switching performance in industrial and commercial electrical installations. Rated at 63 amperes and 22 kilowatts with an IP65 ingress protection rating, it ensures outstanding resistance against dust and water ingress, suitable for harsh operating environments.

This front mount isolator switch is designed for three-phase systems with three poles and a 3-phase electrical configuration. It includes features such as an insulated housing and a black handle for easy and safe operation. The switch is sealed to IP65, providing protection from dust and jets of water, making it ideal for both indoor and outdoor applications.

The product conforms to key international certifications including CCC, CE, CSA, EAC, LRS, UKCA, UL, and VDE, ensuring compliance with global safety and performance standards. The switch can handle switching currents of up to 63A and switching voltages of 690V AC, supporting a switching power capacity of 22 kW, suitable for various electrical applications.

The compact dimensions of 199mm length, 146mm width, and 149mm depth facilitate installation in diverse panel configurations and constrained spaces. Its metric screw connections with box terminal types provide secure and reliable wiring connections.

Operating temperature range from -25°C to 55°C ensures functionality in varied climatic conditions. This switch is not designed for hazardous areas and is not compatible with padlock locking. It is ideal for industrial automation, electrical distribution, manufacturing, HVAC, and commercial electrical systems.

Designed for front mounting and isolated box installation with neutral bar. Features black handle and sealed housing complying with IP65 standards. Suitable for three-phase electrical systems with 3 poles and 3 electrical phases.

Operates within a temperature range of -25°C to 55°C for reliable performance. Utilizes metric screw connections for terminal wiring with box-type terminals. Certified with multiple international standards including CCC, CE, CSA, EAC, LRS, UKCA, UL, and VDE.

Compact dimensions of 199mm length, 146mm width, and 149mm depth facilitate installation in constrained spaces. Supports switching power up to 22 kW and switching AC voltage up to 690V AC.

This Siemens isolator switch is an essential component for safety isolation in electrical panels, ensuring safe maintenance and emergency shutdown situations. Explore additional Siemens electrical products and Isolator Switches on EnvMart for comprehensive electrical solutions.
