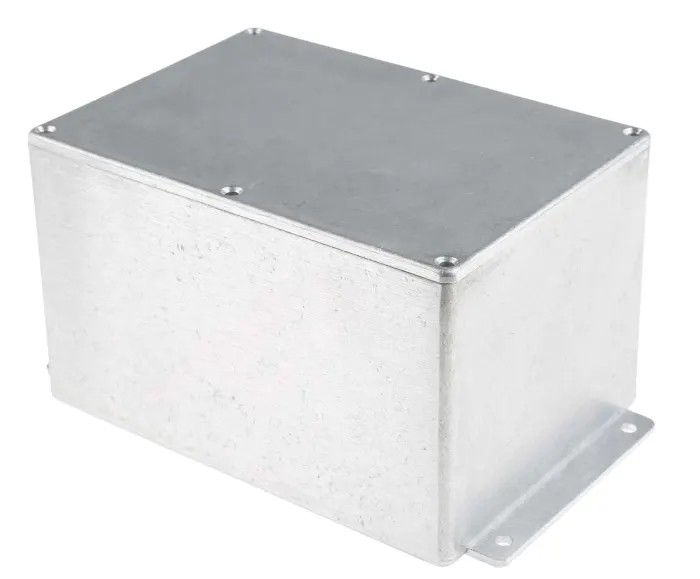

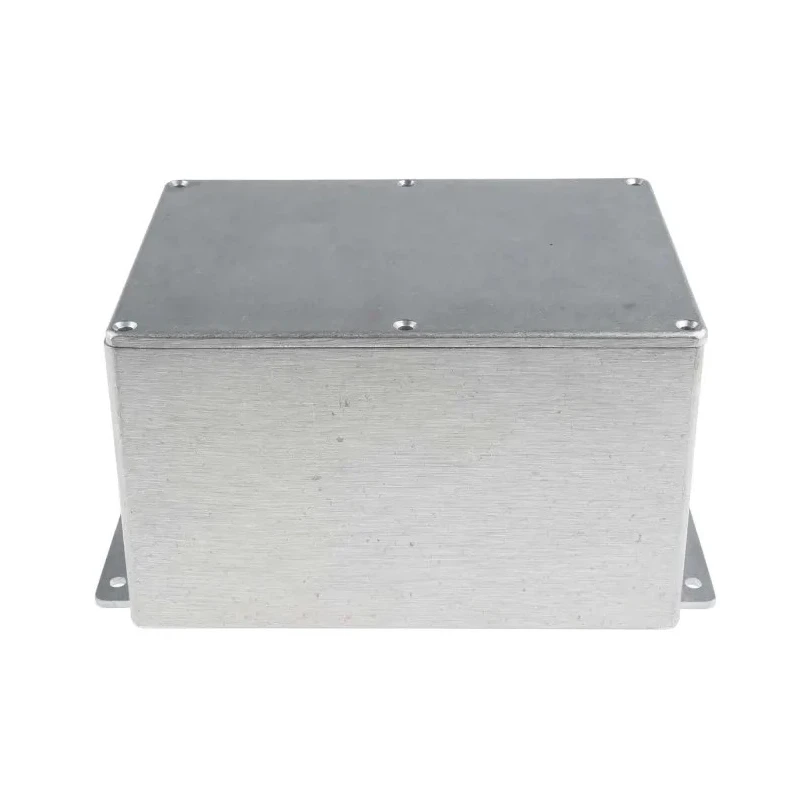

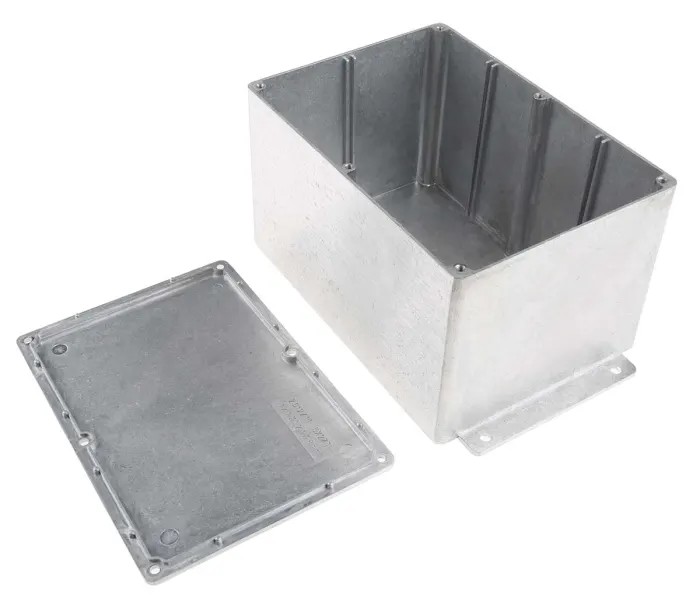

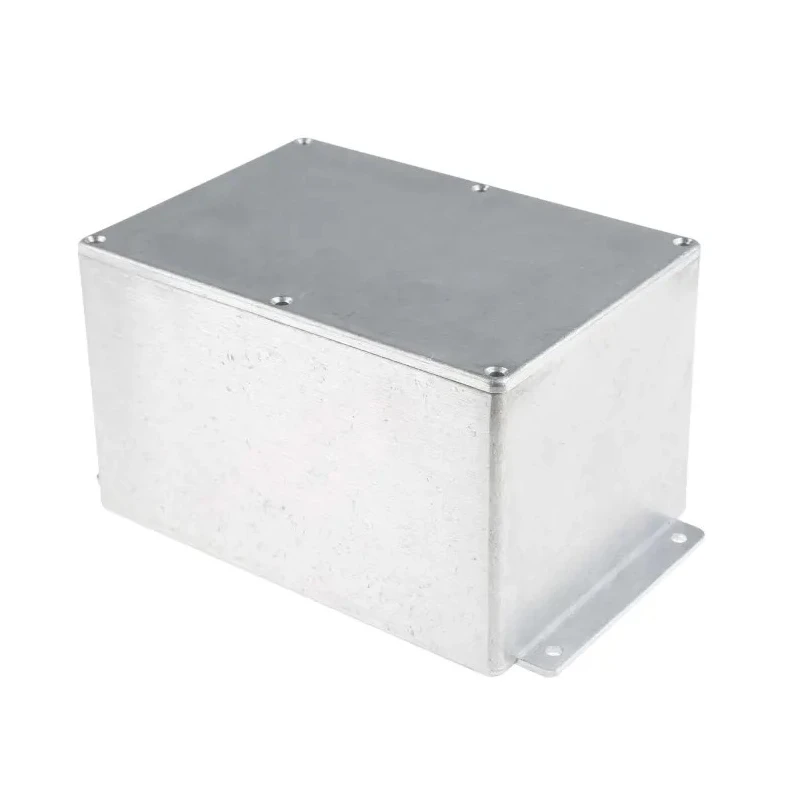

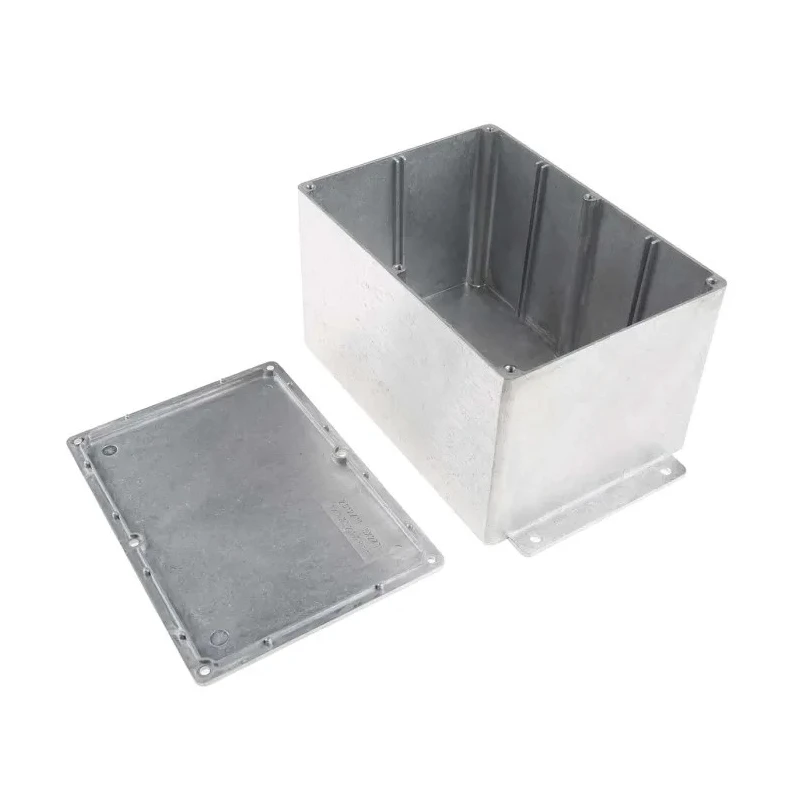

RS PRO Flanged Silver Lid Die Cast Aluminium Enclosure 105.4 mm x 201.7 mm x 121.2 mm 517-3793
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display | Screen |
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Model | 517-3793 |
| External Width | 121.2mm |
| External Height | 105.4mm |
| Shielding | Shielded |
| External Length | 201.7mm |
| Lid Colour | Silver |
| BNL Pulley AcetalBrand | BNL |
Key Features
- Constructed from high-quality die cast aluminium ADC 12 alloy for durability.
- Flanged design enables easy wall mounting with mounting flange at enclosure base.
- Lid is lipped for tight fit with a 1.5° taper per side to base ensuring EMI/RFI screening.
- Shielded enclosure offers screening better than 40dB at 10MHz and 76dB at 100kHz.
- Natural aluminium finish with no external coating; powder painting recommended for coating needs.
- Capable of withstanding temperatures up to 250°C without structural degradation.
- Fastened by M3.5 x 9 mm Supadrive countersunk stainless steel screws.
- Designed to house and protect electronic equipment from interference and environmental factors.
Product Description
RS PRO 517-3793 flanged die cast aluminium enclosure provides reliable shielding and protection for sensitive electronic and electrical equipment. Featuring a sturdy ADC 12 aluminium alloy body and a silver lipped lid, this enclosure ensures superior EMI and RFI screening performance, exceeding 40dB at 10MHz and 76dB at 100kHz. The enclosure dimensions are 105.4 mm in height, 201.7 mm in length, and 121.2 mm in width, with mounting flanges integrated into the base for convenient wall mounting.
The enclosure has a natural aluminium finish, free of any external coatings, making it suitable for powder painting if desired. It tolerates temperatures up to 250°C, maintaining its structural integrity and shielding properties under harsh conditions. The lid secures tightly to the base via a 1.5° taper per side and is fastened using M3.5 x 9 mm Supadrive countersunk stainless steel screws, placed outside the internal equipment area to prevent interference.
These enclosures are ideal for general purpose applications requiring robust EMI/RFI shielding, including industrial control systems, laboratory instruments, remote control systems, and other electronic assemblies. The shielding capability, combined with a solid aluminium construction and secure flanged mounting, make it an excellent choice for protecting electronics in demanding environments.
Constructed from die cast aluminium ADC 12 alloy for enhanced strength. Integrated flanged mounting simplifies installation. Lipped lid design ensures effective EMI/RFI screening. High temperature resistance up to 250°C.
Natural finish permits customization with powder coating. Supadrive countersunk stainless steel screws for secure lid fastening. Designed for housing DIN rail mounted electrical components. Suitable for industrial, electrical automation, laboratory, HVAC, and manufacturing applications.
RS PRO general purpose die cast aluminium enclosures offer dependable protection and shielding for a wide range of electrical and electronic equipment, combining mechanical robustness with superior shielding performance. Explore additional sizes and options in the RS PRO General Purpose Enclosures range on EnvMart for your industrial or laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 105.4 mm in height, 201.7 mm in length, and 121.2 mm in width.
It is constructed from die cast aluminium ADC 12 alloy, providing enhanced strength and durability.
It offers EMI and RFI shielding performance exceeding 40dB at 10MHz and 76dB at 100kHz.
It can withstand temperatures up to 250°C without structural degradation.
The lid is fastened using M3.5 x 9 mm Supadrive countersunk stainless steel screws, which are placed outside the internal equipment area to prevent interference.
Yes, it features integrated flanged mounting for convenient wall mounting.
The enclosure has a natural aluminium finish with no external coating, allowing for powder painting if desired.
It is ideal for general purpose applications requiring robust EMI/RFI shielding, including industrial control systems, laboratory instruments, and remote control systems.
The lid is lipped for a tight fit with a 1.5° taper per side to the base, ensuring effective EMI/RFI screening.
The country of origin for this enclosure is Taiwan.
Yes, it is designed for housing DIN rail mounted electrical components.
It is suitable for demanding environments such as industrial, electrical automation, laboratory, HVAC, and manufacturing applications.
