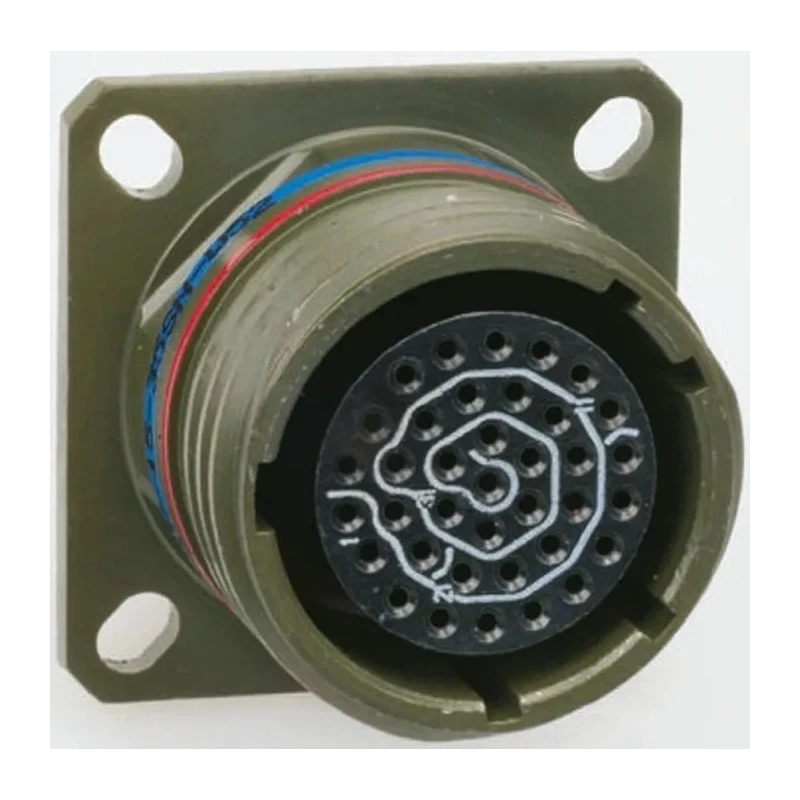

Amphenol Limited MIL Spec Circular Connector TV Copper Alloy Straight 6 Way Wall Mount 400, 500V ac TVP00RW-09-35PA(W52)

Amphenol Limited TVP00RW-09-35PA(W52) MIL Spec Circular Connector is a high-quality copper alloy, straight 6 way wall mount connector designed for demanding industrial and military applications requiring durability and reliable electrical performance.

This connector features a strong machined aluminium alloy shell that ensures mechanical robustness. The shell is finished with an olive drab zinc cobalt plating providing corrosion resistance while maintaining environmentally friendly cadmium-free compliance, suitable for critical installations.

Gold-plated copper alloy contacts inside provide excellent electrical conductivity and resistance to wear, enabling stable connections at voltages rated up to 400 and 500 volts AC. The connector supports a rated current of 5 amperes and is designed with 6 contacts allowing multi-circuit configurations.

Operating temperature ranges from -65°C to a maximum of 175°C, making it suitable for harsh environments including industrial, military, aerospace, and transportation sectors. Termination is by crimp rear release type and coupling is screw-based for secure mating.

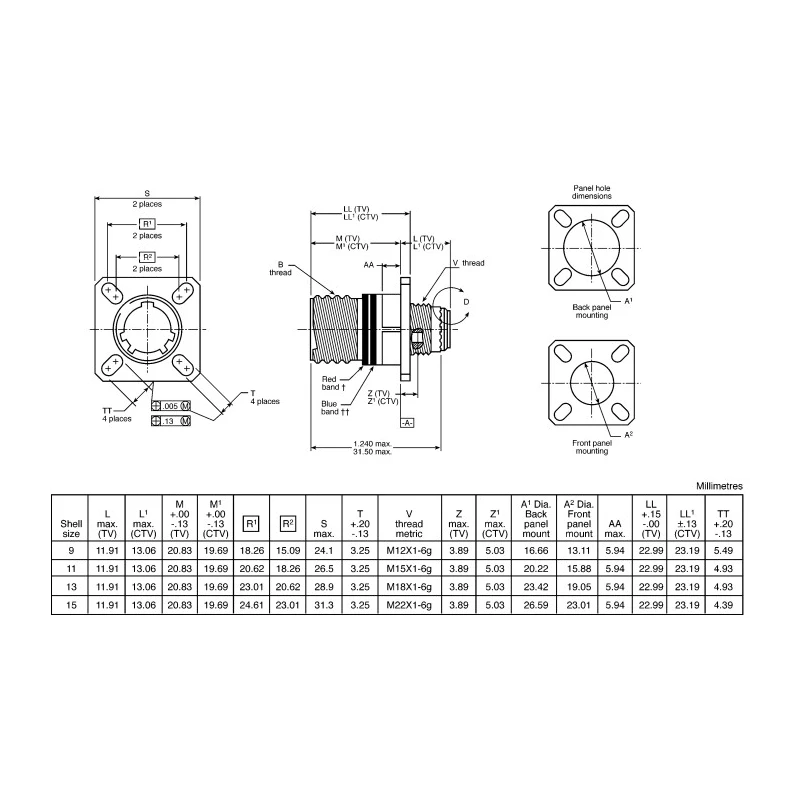

The connector size is standard shell size 09 with a straight orientation and strain relief to protect wiring from mechanical stress. The green coloured housing aids in identification and installation.

Constructed with high strength machined aluminium alloy shell providing durable housing. Features zinc cobalt plating for corrosion resistance and cadmium-free compliance. Includes gold-plated copper alloy contacts ensuring solid electrical connectivity.

Suitable for harsh environments with operating temperatures from -65°C up to 175°C. Designed to meet MIL-DTL-38999 military specifications for reliable performance. Crimp termination type with screw coupling ensures secure connections.

Standard shell size 09 with a straight orientation and strain relief for cable protection. Mount type is wall mount with a green colour finish for identification. Supports a current rating of 5 A and features 6 contacts for multi-circuit connection.

This connector is ideal for use in industrial, military, aerospace, and communication systems where reliable, robust, and high-quality connections are essential. Explore more in the Mil Spec Circular Connector category on EnvMart for compatible accessories and connectors.
