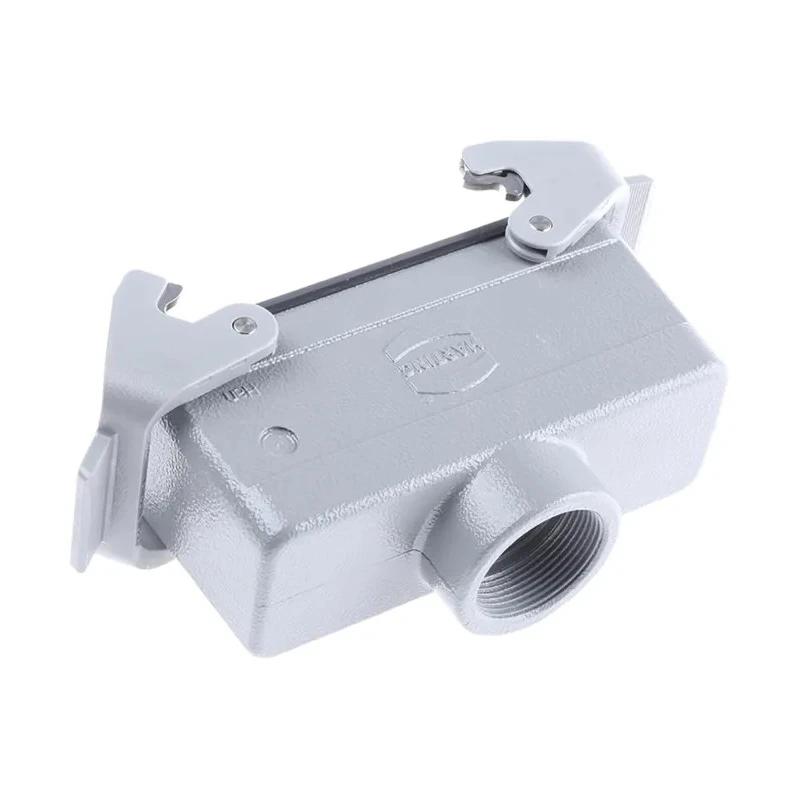

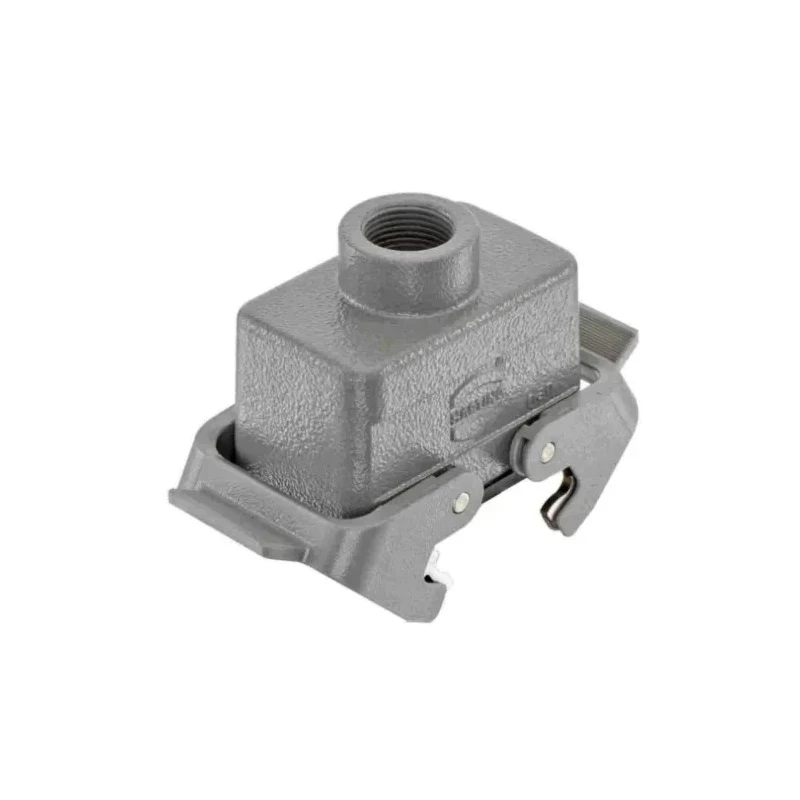

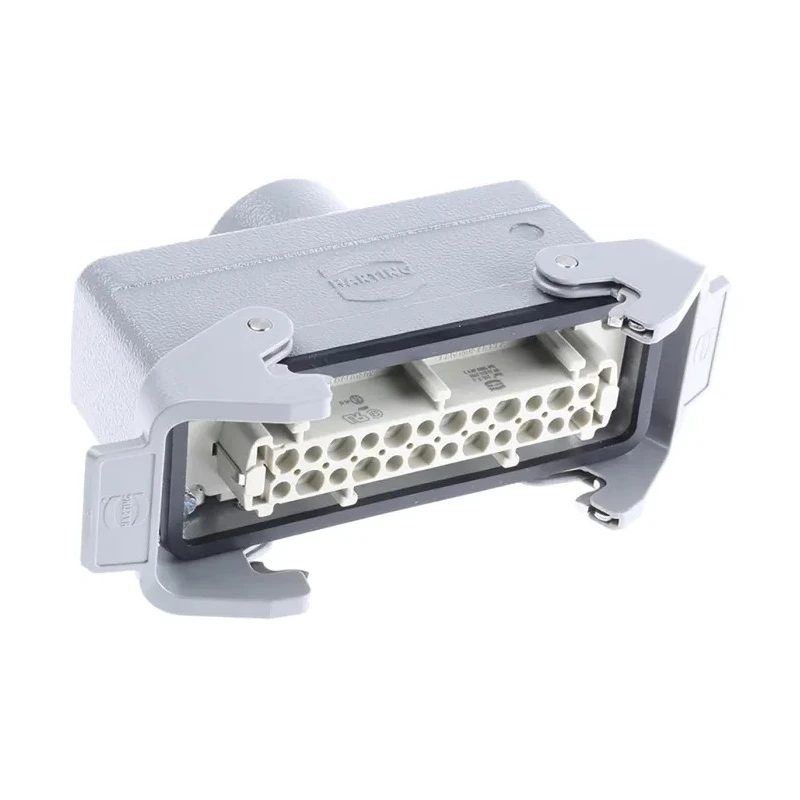

HARTING Heavy Duty Power Connector Panel Mount Screw Termination 24 Contacts 16A 500V Han E Female 09330242701+19300241732

Free Delivery in India | Lowest Global Shipping Charges

HARTING Heavy Duty Power Connector Panel Mount Screw Termination 24 Contacts 16A 500V Han E Female 09330242701+19300241732

Name: HARTING Heavy Duty Power Connector Panel Mount Screw Termination 24 Contacts 16A 500V Han E Female 09330242701+19300241732
Brand: HARTING
SKU: 122014
Price: 115.6 USD
Availability: InStock



Category Heavy Duty Power Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	500V
Brand	HARTING
Orientation	Straight
Current	16A
Model	09330242701+19300241732
IP Rating	IP44
Mount Type	Panel
Contact Material	Copper Alloy
Series	Han E
Termination Type	Screw
Maximum Operating Temperature	125°C
Thread Size	M32
Minimum Operating Temperature	-40°C
Number of Rows	2
Pole Format	24+PE
Contact Plating	Silver
Number of Contacts	24
Contact Gender	Female
Connector Gender	Female

Key Features

Features a Han E series female connector with a straight orientation.
Designed for panel mounting with a robust M32 thread size and screw termination.
Operates reliably over a temperature range of -40°C to 125°C.
Constructed with copper alloy contacts finished with silver plating for excellent conductivity.
Provides an IP44 ingress protection rating against dust and splashing water.
Includes 24 signal contacts plus a protective earth (PE) contact for secure power distribution.
Suitable for industrial and automation control cabinet applications requiring multi-circuit power connections.

Product Description

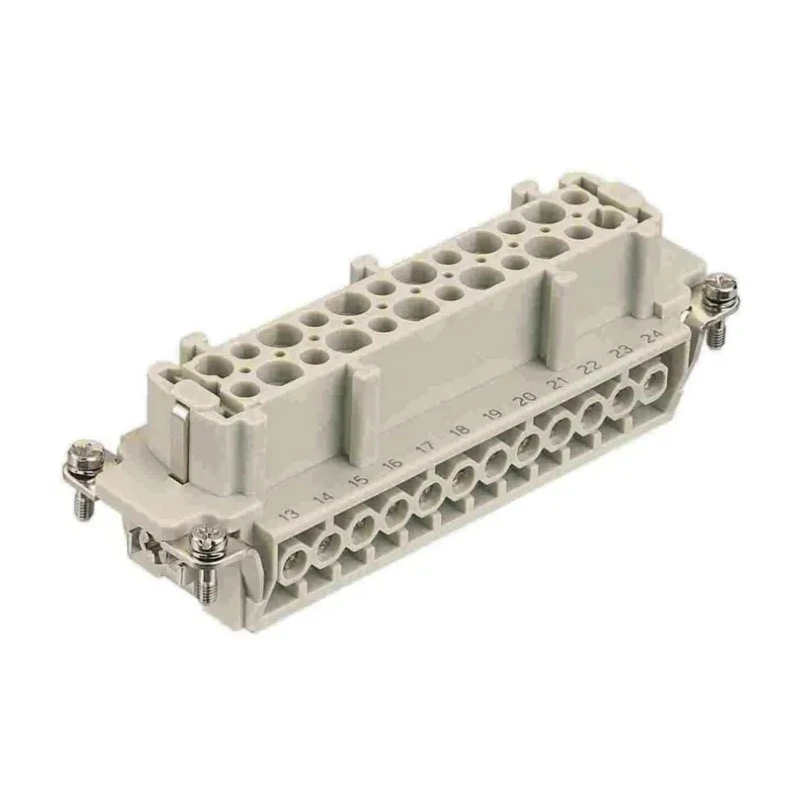

HARTING 09330242701+19300241732 is a Heavy Duty Power Connector designed for panel mounting with screw termination, supporting 16A current and 500V voltage. This durable Han E female connector features 24 contacts arranged in two rows along with a protective earth contact, providing a reliable interface for industrial power distribution.

Built with copper alloy contacts coated in silver plating, it ensures low electrical resistance and long-term conductivity suitable for repeated connection cycles. The connector supports a wide operating temperature from -40°C to 125°C, making it suitable for demanding industrial environments.

The panel mount design utilizes an M32 thread size for mechanical stability, maintaining connector integrity even in vibration-prone applications. The IP44 ingress protection rating safeguards the connector against solid particles larger than 1 mm and splashing water, enhancing reliability in workshop or factory conditions.

This product fits well in automation control cabinets requiring multi-circuit feed, industrial machinery with panel power inlets, distribution modules in electrical panels, and temporary power setups during factory maintenance. It offers a high degree of flexibility for multi-pin female power connections with earthing.

Features a Han E series female connector in a panel mount configuration. Supports 24 contacts plus a protective earth for versatile power connections. Screw termination with an M32 thread provides easy and secure panel installation.

High current rating of 16A and medium voltage insulation up to 500V. Durable copper alloy contacts plated with silver for low resistance and longevity. Wide temperature operating range from -40°C to 125°C. Ingress protection rating IP44 for industrial use environments.

Manufactured in Germany to robust industry standards, this connector is ideal for heavy duty and industrial power applications requiring dependable panel-mounted connectors. Its technical specifications and design provide a reliable solution for multi-circuit electrical power distribution where safety, durability, and electrical performance are critical.

Explore our extensive range of connectors and heavy duty power solutions available at EnvMart for industrial and commercial electrical connectivity needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a current rating of 16A and a voltage rating of 500V, making it suitable for various industrial applications.

It has an IP44 ingress protection rating, which safeguards against dust and splashing water, enhancing its reliability in industrial environments.

The connector operates reliably over a temperature range of -40°C to 125°C, suitable for demanding industrial conditions.

This unit features a total of 24 contacts, including a protective earth (PE) contact for secure power distribution.

It utilizes screw termination, which provides a secure connection for reliable performance in panel-mounted applications.

The contacts are constructed from copper alloy and finished with silver plating to ensure excellent conductivity and low electrical resistance.

The connector features an M32 thread size for mechanical stability during installation, ensuring it remains secure even in vibration-prone environments.

Yes, it is designed for applications such as automation control cabinets requiring multi-circuit power connections, making it versatile for industrial use.

This model has a straight orientation, facilitating easy installation and connection in panel mount setups.

It is manufactured in Germany, adhering to robust industry standards for heavy-duty power applications.

The connector has two rows of contacts, arranged to optimize space and connectivity in panel applications.

This model is part of the Han E series, known for its reliability in heavy-duty power distribution applications.
