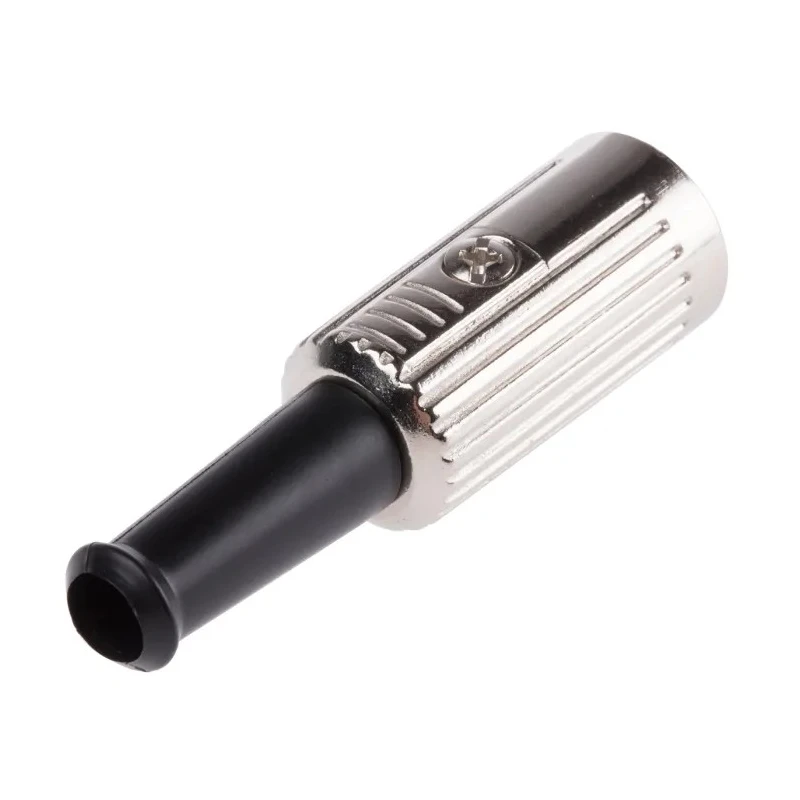

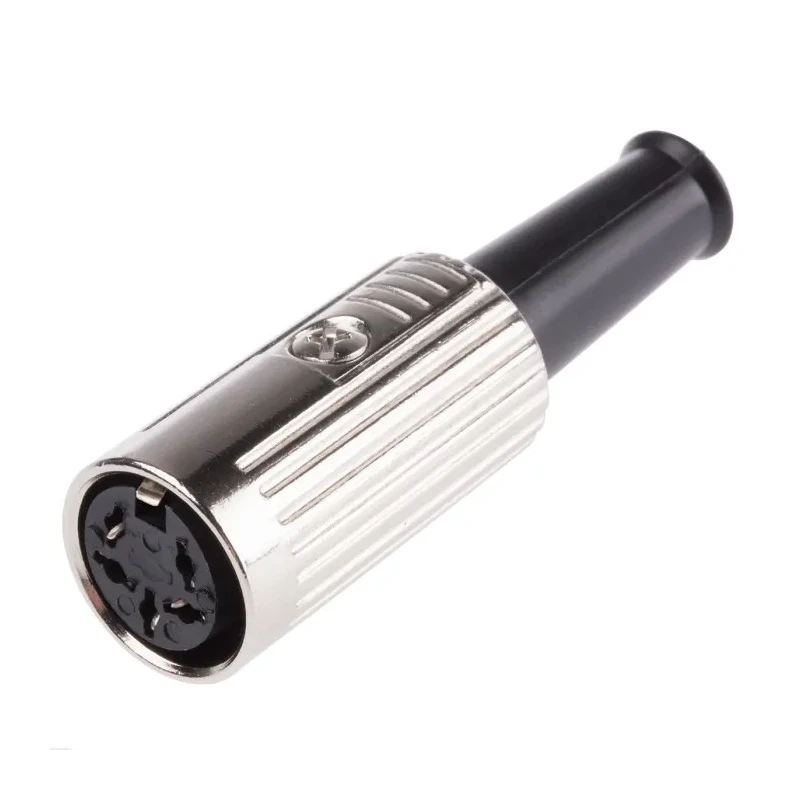

RS PRO 5 Pole Straight Standard DIN Socket, 4A, 100V AC, Push Lock, Cable Female 491-213
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 100V ac |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 4A |
| Model | 491-213 |
| Mount Type | Cable |
| Housing Material | ABS |
| Contact Material | Brass |
| Series | RS PRO |
| Insulation resistance | 100MΩ at 500V DC min |
| Rating | 100V AC 4A max |
| Voltage Withstand | 250V AC for 1 minute |
| Shield Type | Shielded |
| Contact Resistance | Pins 30mΩ max. Shell 50mΩ max |
| Pole Format | 5 |
| Contact Plating | Silver |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Push Lock |
| Connector Size | Standard |
| Set screw and 'T' holder | Steel Nickel Plated |
| RS PRO 5 Pole Din, 4A, Female, Cable MountBrand | RS PRO |
Key Features
- Durable ABS housing provides robust protection for the connector.
- Brass contacts plated with silver ensure reliable electrical conductivity.
- Shielded design with a zinc alloy cover enhances EMI/RFI protection.
- Supports a maximum current rating of 4 amperes at 100 volts AC.
- Offers a contact resistance of 30mΩ max for pins and 50mΩ max for the shell.
- Insulation resistance is at least 100MΩ at 500V DC for safety and reliability.
- Steel nickel-plated set screw and 'T' holder secure the connection firmly.
- Designed for industrial and electronic applications requiring secure multi-pin cable connections.
Product Description
RS PRO 491-213 is a 5 Pole Straight Standard DIN Socket designed for cable mounting, rated at 4A current and 100V AC voltage. The female connector features a push lock mating mechanism for secure and easy installation.
The connector is housed in durable ABS material and incorporates brass contacts with silver plating to optimize electrical performance. A zinc alloy shield provides effective electromagnetic interference protection, making it suitable for sensitive electronic environments.
Its technical specifications include a contact resistance of 30 milliohms maximum for pins and 50 milliohms maximum for the shell, and an insulation resistance of 100 megaohms at 500 volts DC minimum. The connector withstands a voltage of 250 volts AC for 1 minute, ensuring robust durability under transient conditions.
The set screw and 'T' holder are nickel plated steel, enhancing mechanical strength and reliability. This DIN Socket is ideal for numerous industrial, electronic, and electrical applications including power and signal transmission in control panels, audio equipment, and computer interfaces.
RS PRO offers a comprehensive range of DIN connectors with various pin counts and mounting options, providing engineers with quality and versatility. Durable ABS housing provides robust protection for the connector. Brass contacts plated with silver ensure reliable electrical conductivity.
Shielded design with a zinc alloy cover enhances EMI/RFI protection. Supports a maximum current rating of 4 amperes at 100 volts AC. Offers a contact resistance of 30mΩ max for pins and 50mΩ max for the shell. Insulation resistance is at least 100MΩ at 500V DC for safety and reliability.
Voltage withstand capability of 250V AC for 1 minute to endure transient voltage spikes. Steel nickel-plated set screw and 'T' holder secure the connection firmly. Designed for industrial and electronic applications requiring secure multi-pin cable connections.
Product is manufactured in Taiwan, Province Of China under strict quality standards. Explore more quality connectors and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this DIN socket is 4 amperes.
It supports a voltage of 100 volts AC.
The contact resistance is 30 milliohms maximum for the pins and 50 milliohms maximum for the shell.
The housing material is made of durable ABS.
The connection is secured using a steel nickel-plated set screw and a 'T' holder.
The insulation resistance is at least 100 megaohms at 500 volts DC minimum.
It can withstand a voltage of 250 volts AC for 1 minute.
This model features a female connector gender.
The mating type is push lock, allowing for secure and easy installation.
This connector has 5 poles.
This product is manufactured in Taiwan, Province Of China.
It is designed for industrial and electronic applications requiring secure multi-pin cable connections, such as power and signal transmission in control panels and audio equipment.
