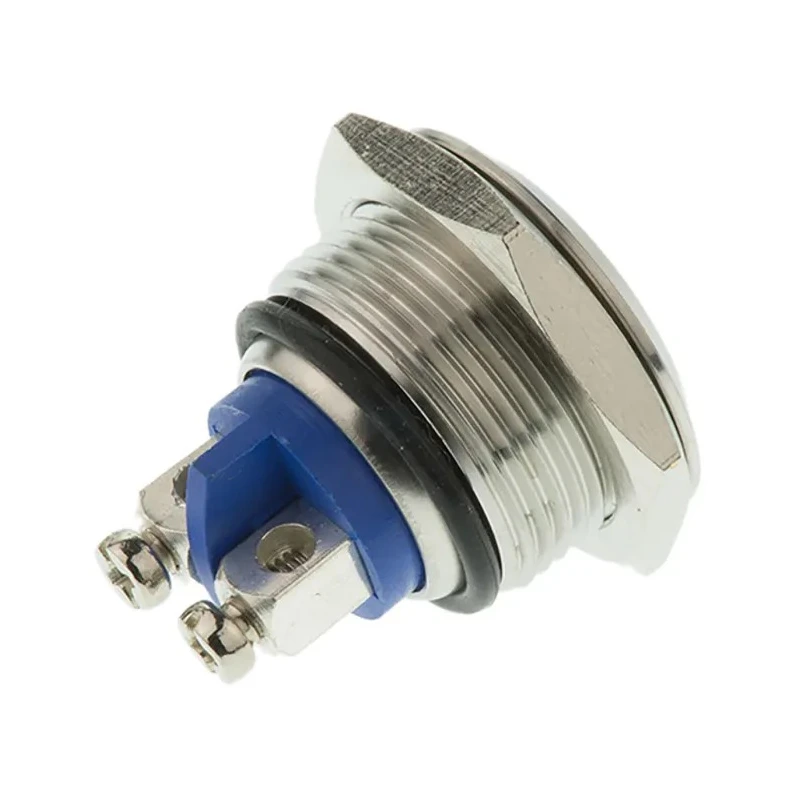

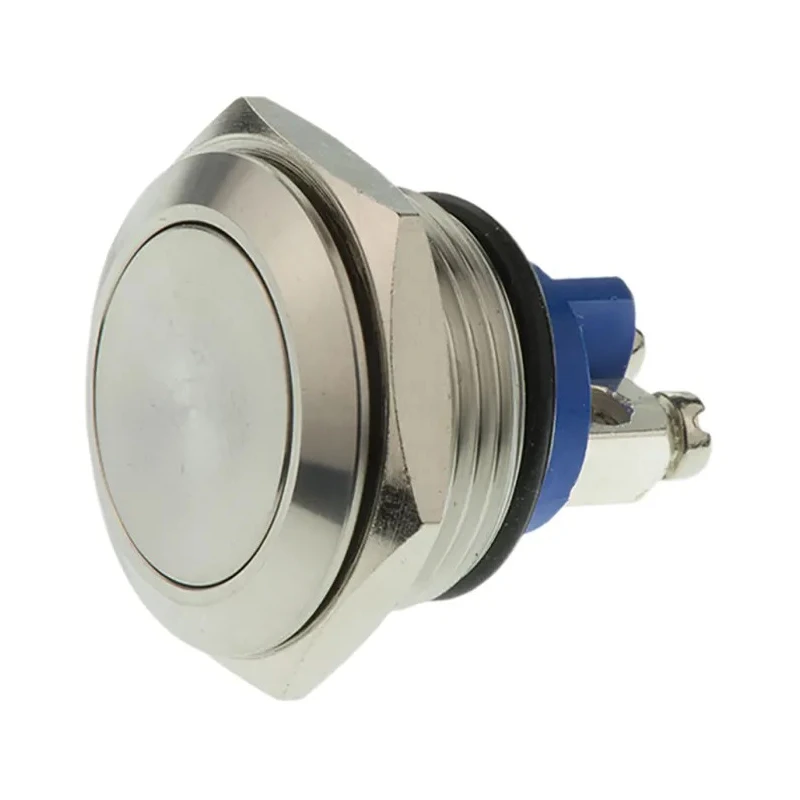

Schurter MCS ES 18 Series Push Button Switch, Momentary Operation, Through Hole Mount, 19 mm Cutout, SPST Contact 1301.9560
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schurter |
| IP Rating | IP65, IP67 |
| Mount Type | Through Hole |
| Series | MCS ES 18 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Contact Rating | 50mA @ 24V d.c |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Screw |
| Contact Resistance | 10mΩ |
| Standards/Approvals | CE, EN, RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 50mA |
| Minimum switching voltage | 50mV d.c |
Key Features
- The switch has a single pole single throw (SPST) contact configuration for signal switching.
- It is rated for IP65 and IP67 panel sealing protection.
- The actuator color is silver with screw terminals for electrical connection.
- Operates at 24 V dc contact voltage with a contact rating of 50mA and 10 milliohm contact resistance.
- Durable stainless steel momentary pushbutton with a mechanical life of 500,000 operations.
- Operates within a temperature range from -20°C to 55°C.
- Gold contacts ensure reliable low voltage and low current switching.
- Designed for panel thickness up to 6 mm with a maximum depth behind panel of 33 mm.
Product Description
Schurter 1301.9560 MCS ES 18 Series Push Button Switch is engineered for industrial and electronic applications requiring reliable momentary contact switching. Featuring a stainless steel pushbutton actuator colored in silver, this switch offers a robust design with a through-hole mount and a panel cutout size of 19 mm. It provides a single pole single throw (SPST) contact configuration suitable for low current signal switching.
This switch is sealed to IP65 and IP67 standards, ensuring protection against dust and water ingress suitable for harsh industrial, laboratory, automation, and control panel environments. The screw terminal design enhances secure and easy installation.
Designed to operate at 24 V dc with a contact rating of 50 mA and a contact resistance of 10 milliohms, this switch supports sensitive signal applications with gold plated contacts for ultrapure electrical connectivity. The device offers excellent longevity with a mechanical life expectancy of 500,000 operations and electrical life of 300,000 operations.
It withstands operational temperatures from -20°C up to 55°C and conforms to CE, EN, and RoHS quality and environmental compliance standards. The compact design allows for a panel thickness of up to 6 mm and a maximum assembly depth of 33 mm behind the panel.
Its stainless steel construction delivers mechanical robustness and a modern aesthetic. Reliable low voltage and low current switching capability is ensured by gold plated contacts. The pushbutton is ergonomically designed for easy operator access and tactile feedback.
Suitable across industrial, laboratory, manufacturing, and electrical control sectors. This Schurter MCS ES 18 Series push button switch is a trusted component for demanding professional applications requiring durable and precise momentary switching.
Explore additional Schurter Push Button Switches and components in the EnvMart catalog for comprehensive control panel solutions and industrial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration, making it suitable for signal switching applications.
The maximum operating temperature for this switch is 55°C, allowing it to function effectively in various environments.
This switch is rated for IP65 and IP67, providing protection against dust and water ingress.
The required panel cutout size for this model is 19 mm, which is necessary for proper mounting.
It has a contact rating of 50 mA at 24 V dc, making it suitable for low current applications.
This unit features screw terminals for secure and easy electrical connections during installation.
The minimum operating temperature for this model is -20°C, allowing it to be used in colder environments.
The mechanical life expectancy of this push button switch is rated at 500,000 operations, ensuring longevity in use.
The actuator is made of stainless steel and is colored silver, providing a modern aesthetic and mechanical robustness.
This model complies with CE, EN, and RoHS standards, ensuring it meets quality and environmental requirements.
The contact resistance is rated at 10 milliohms, which supports reliable low voltage and low current switching.
The maximum depth behind the panel for this switch is 33 mm, which must be considered during installation.
