RS PRO Medically Approved Bellow Momentary Foot Switch SPST Polyvinyl Chloride 30V DC 50mA Contact Current 456-1701
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Colour | Black |
| Operating Temperature | -5°C to +40°C |
| Height | 13mm |
| Length | 40mm |
| Model | 456-1701 |
| IP Rating | IP67 |
| Width | 40mm |
| Housing Material | Polyvinyl Chloride |
| Series | RS PRO |
| Contact Configuration | SPST |
| Contact Rating | 50 mA |
| Switch Configuration | SPST |
| Standards/Approvals | IEC 60601-1, UL 60601-1 |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 50mA |
| Switch Environment | Medically Approved Foot Switch Bellow |
| Black, RS stock no | 456-1701 |
| Grey, RS stock no | 456-1739 |
| Red, RS stock no | 456-1717 |
| Green, RS stock no | 456-1745 |
Key Features
- Designed for momentary SPST (Single Pole Single Throw) switch operation.
- Constructed with polyvinyl chloride for corrosion and wear resistance.
- Sealed to IP67 for protection against dust and temporary water immersion.
- Operates at 30V DC contact voltage with a 50mA contact current rating.
- Compliant with IEC 60601-1 and UL 60601-1 medical safety standards.

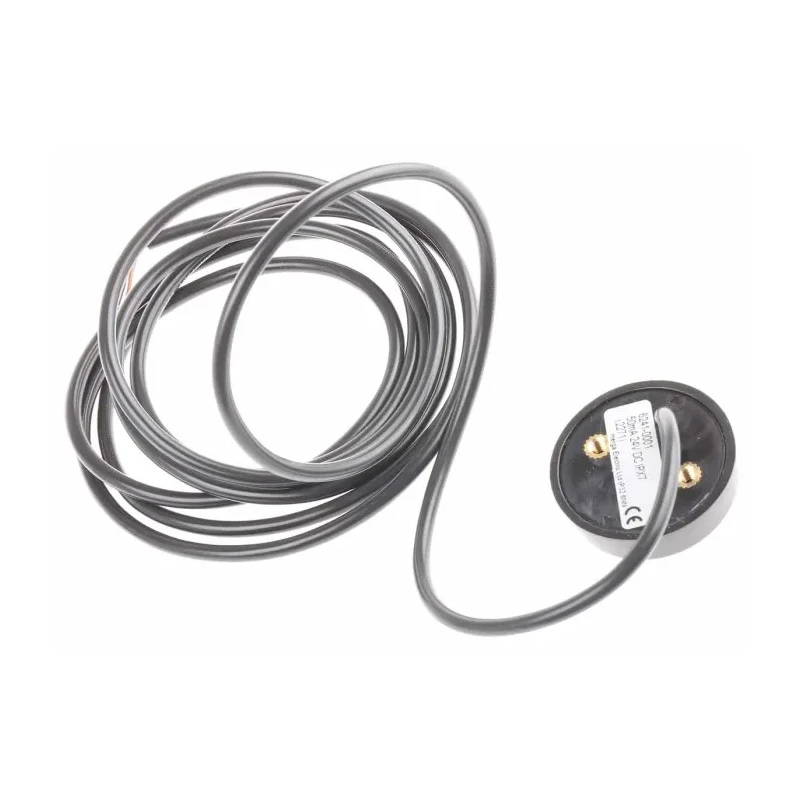

- Includes 2 metres of 2-core black cable with back entry and fitted M4 inserts.
- Suitable for industrial machinery, medical equipment, and musical instruments.
Product Description
RS PRO 456-1701 bellow foot switch is a medically approved momentary SPST foot switch designed for reliable and lightweight applications requiring durable actuation with minimal force. The switch features a robust polyvinyl chloride (PVC) housing that resists wear and corrosion.

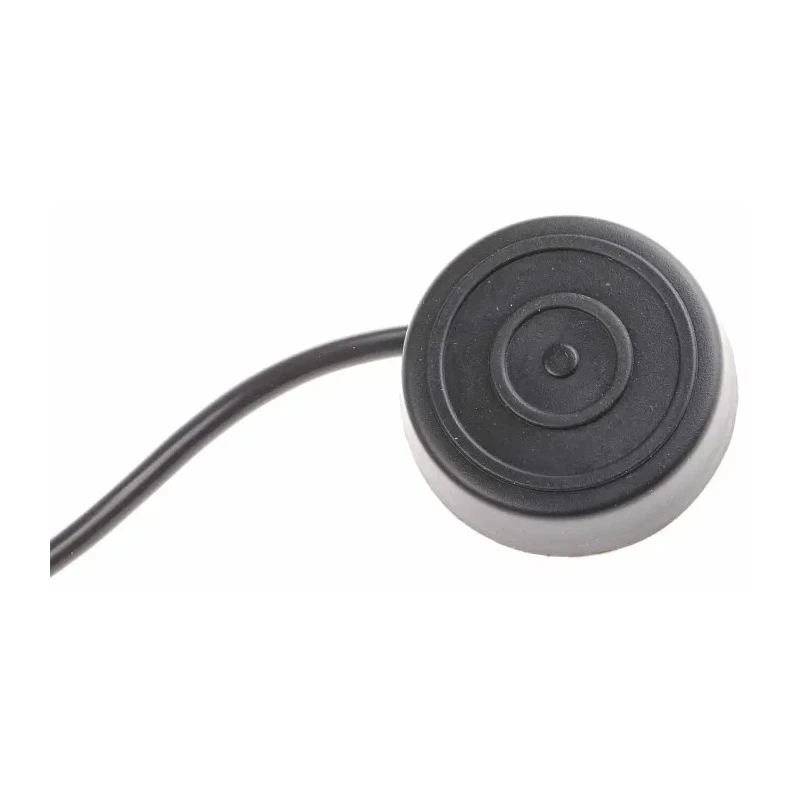

Its bellow design offers hands-free and low profile tactile operation, easily activated by pressing on the surface with a foot. The switch is sealed to IP67 standards, protecting against dust and temporary water immersion, making it suitable for demanding industrial and medical environments.
Rated for a contact voltage of 30V DC and contact current of 50mA, this switch complies with internationally recognized medical electrical safety standards IEC 60601-1 and UL 60601-1. It includes a 2-metre pre-fitted 2-core black cable and back entry cable design with M4 inserts on the base for secure mounting.
Applications include control in industrial machinery, medical devices, and musical instruments, where reliable, hands-free control is essential. Momentary SPST switch for precise electrical control. Durable polyvinyl chloride housing ensures long service life.
IP67 rated sealing protects against dust and water ingress. Medical grade compliance for safe use in sensitive environments. Compact size facilitates versatile installation options. Supplied with 2 metres of black cable for flexible connectivity.
Back entry cable design with M4 mounting inserts. Explore our comprehensive range of Foot Switches and medical-grade electrical components at EnvMart to find products that meet your industrial and medical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this foot switch is 50mA.
This model operates at a maximum contact voltage of 30V DC.
The foot switch has an IP67 rating, providing protection against dust and temporary water immersion.
It is constructed with polyvinyl chloride (PVC), which offers resistance to wear and corrosion.
The dimensions of the foot switch are 40mm in length, 40mm in width, and 13mm in height.
The operating temperature range for this unit is -5°C to +40°C.
This model uses a momentary SPST (Single Pole Single Throw) switch configuration.
Yes, it is medically approved and complies with IEC 60601-1 and UL 60601-1 medical safety standards.
It includes a 2-metre pre-fitted 2-core black cable with a back entry design.
This foot switch is suitable for use in industrial machinery, medical devices, and musical instruments.
The switch operation type of this model is momentary, allowing for temporary activation when pressed.
The foot switch features M4 inserts on the base for secure mounting.
