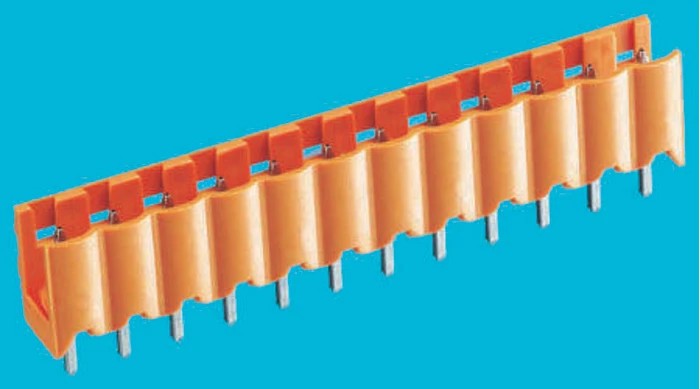

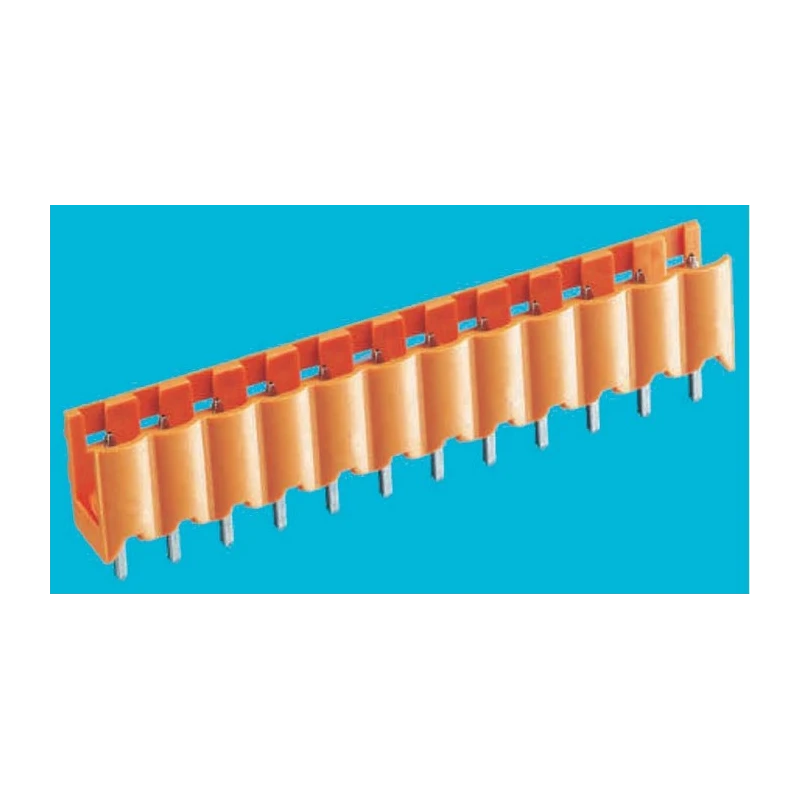

Weidmüller OMNIMATE SL Series Pluggable Terminal Block 14-Contact 5.08 mm Pitch 1 Row 450V 12A 1523060000

Weidmüller 1523060000 OMNIMATE SL Series Pluggable Terminal Block is a high-quality industrial electronic component designed for secure and efficient wire-to-board connections. Featuring 14 contacts with a standardized 5.08 mm pitch and configured in a single row, this terminal block supports a voltage rating of 450V and a current rating of 12A, ideal for various electronic and power connector applications.

Constructed from durable polybutylene terephthalate, the housing material provides excellent mechanical strength and electrical insulation. Its straight orientation and male connector design enable straightforward integration into electronic circuits through solder wire connection method, ensuring stable and long-lasting connections.

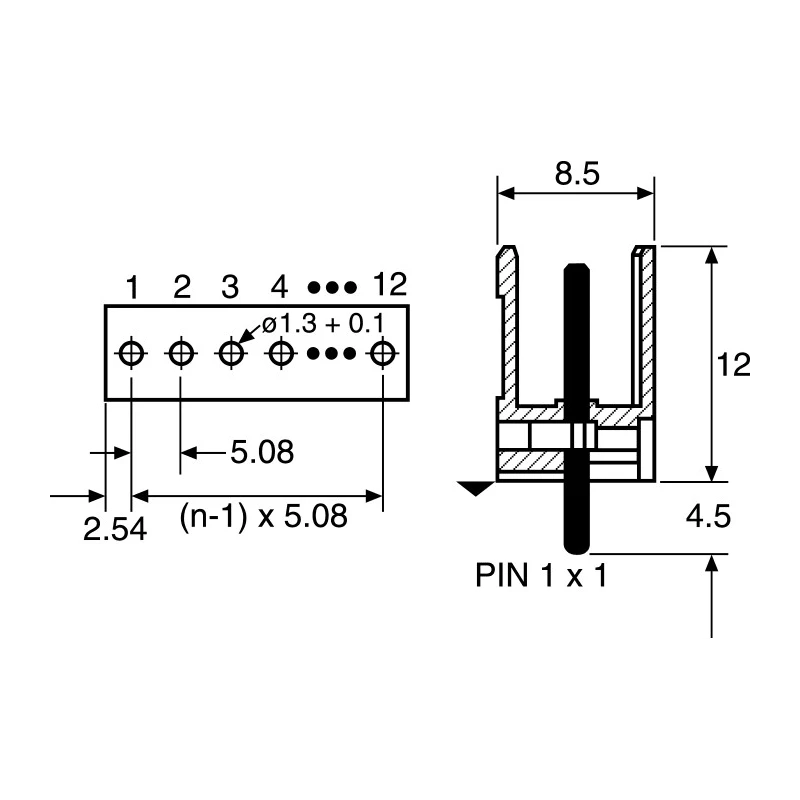

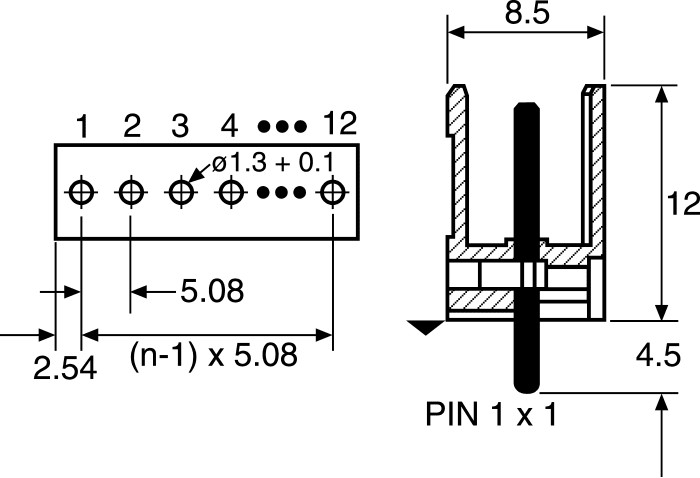

The compact size with a width of 71.12 mm, depth of 8.4 mm, and length of 4.5 mm allow efficient space utilization on printed circuit boards (PCBs). This terminal block is part of the renowned OMNIMATE SL series, which offers versatile and reliable pluggable terminal solutions for industrial, manufacturing, HVAC, electrical, and laboratory equipment applications.

Key features of this terminal block include open end vertical PCB header connectors, compatibility with wire sizes ranging from 0.5 to 1.5 mm², and advanced connector technologies such as leaf spring and spring rising clamp. Polarizing pins are included to prevent mismatched connections, enhancing safety and reliability.

Produced in Germany, this product meets stringent quality standards to ensure robustness in demanding industrial environments. The Weidmüller OMNIMATE SL series is trusted worldwide for applications requiring efficient wire-to-board connectivity in control panels, automation systems, and power management setups.

Features 14 contacts providing reliable electrical connections. Standard 5.08 mm pitch ensures compatibility with OMNIMATE SL series. Constructed with durable polybutylene terephthalate housing material. Designed for straight orientation with male connectors.

Supports solder wire connection method for secure attachment. Compact dimensions with width 71.12 mm, depth 8.4 mm, and length 4.5 mm. Rated voltage of 450V and operating current up to 12A. Manufactured in Germany ensuring high-quality standards.

Part of the OMNIMATE SL series known for efficient wire-to-board connections. Suitable for industrial electronic assemblies requiring robust terminal connections. Explore our comprehensive range of Pluggable Terminal Blocks and electronic components at EnvMart for reliable performance in your industrial and laboratory projects.
