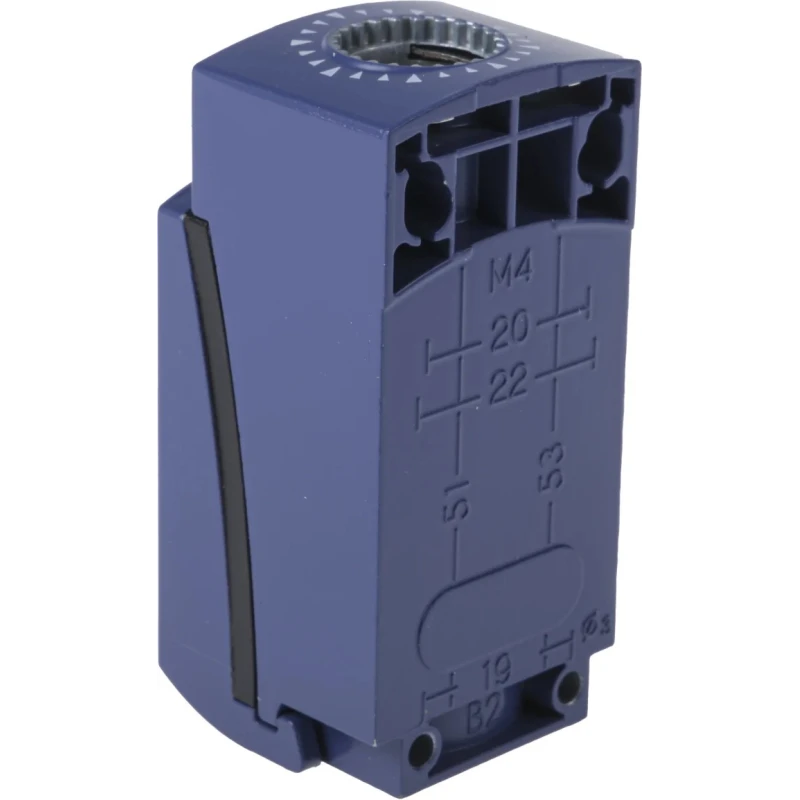

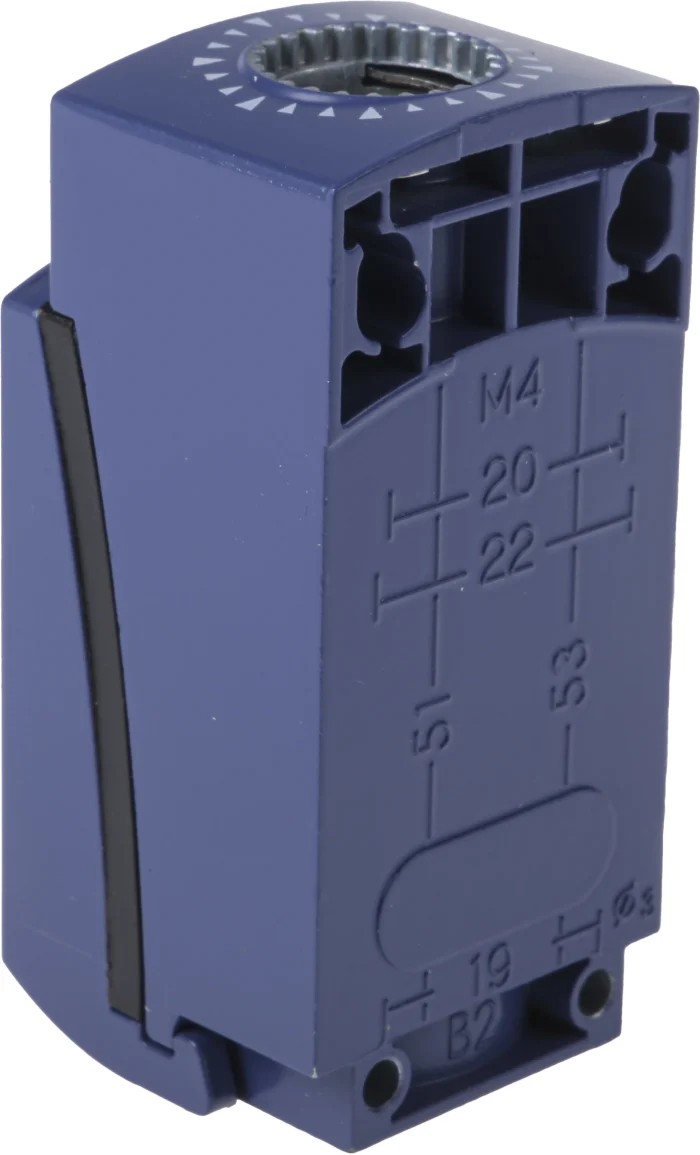

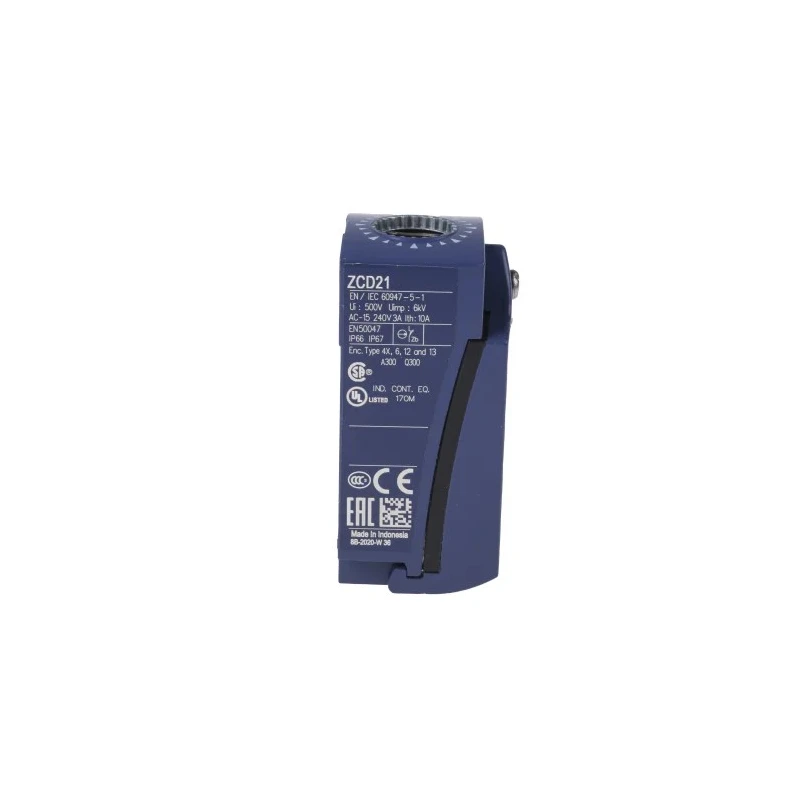

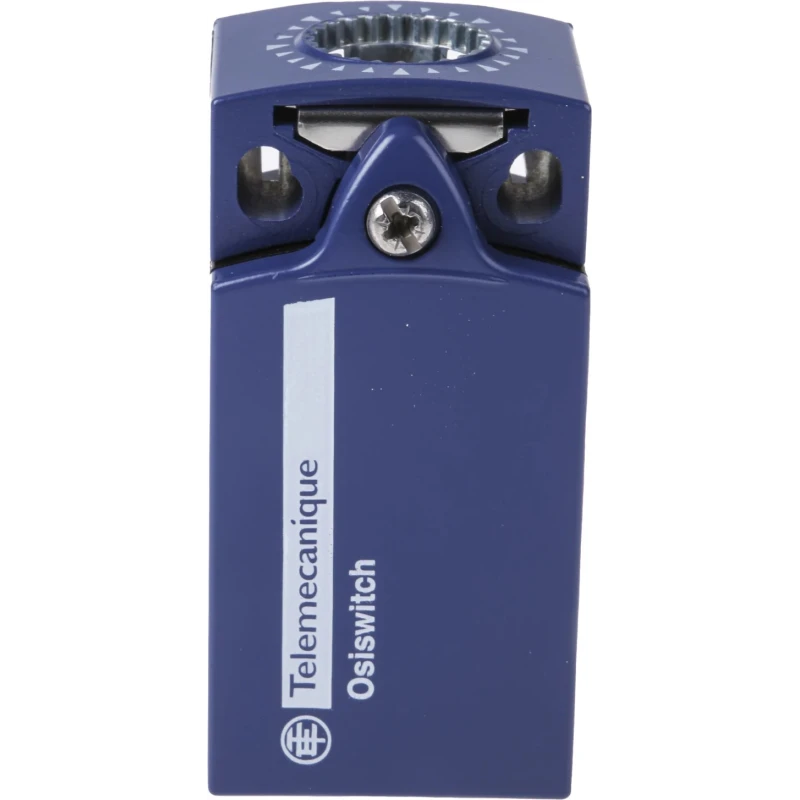

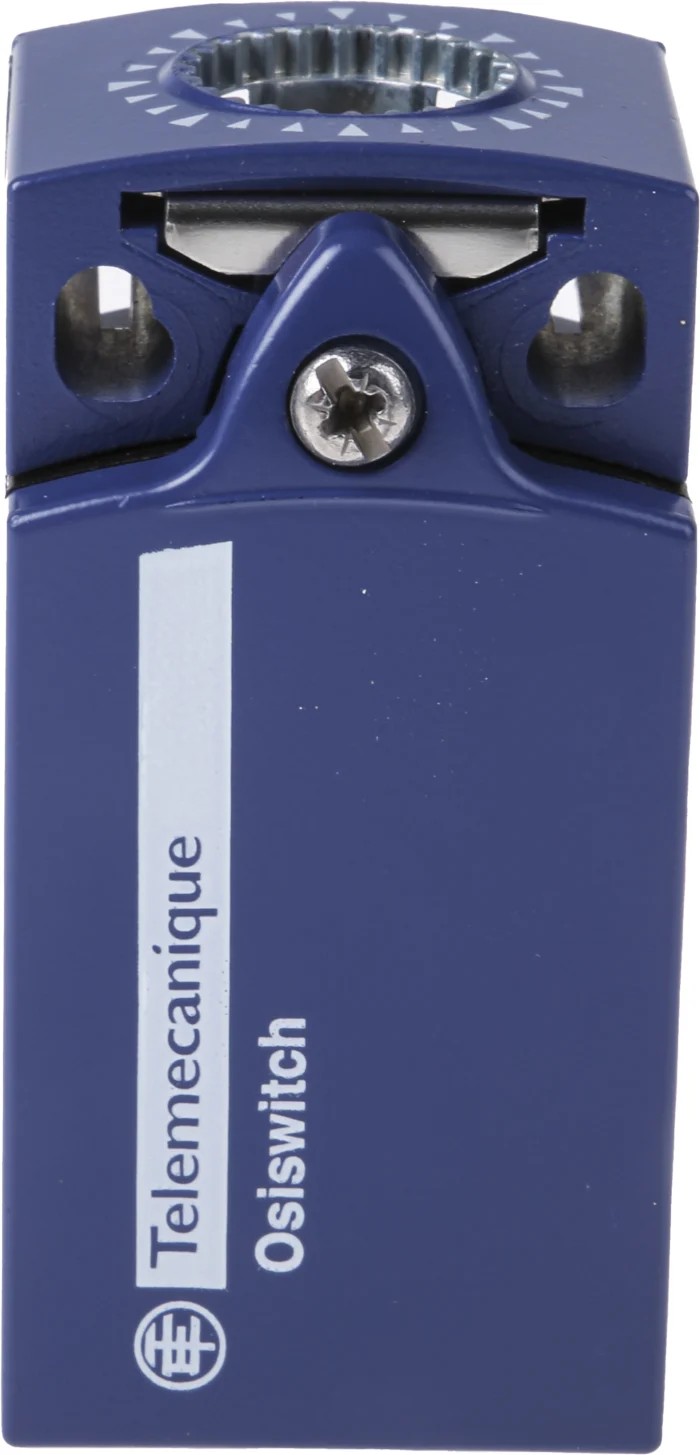

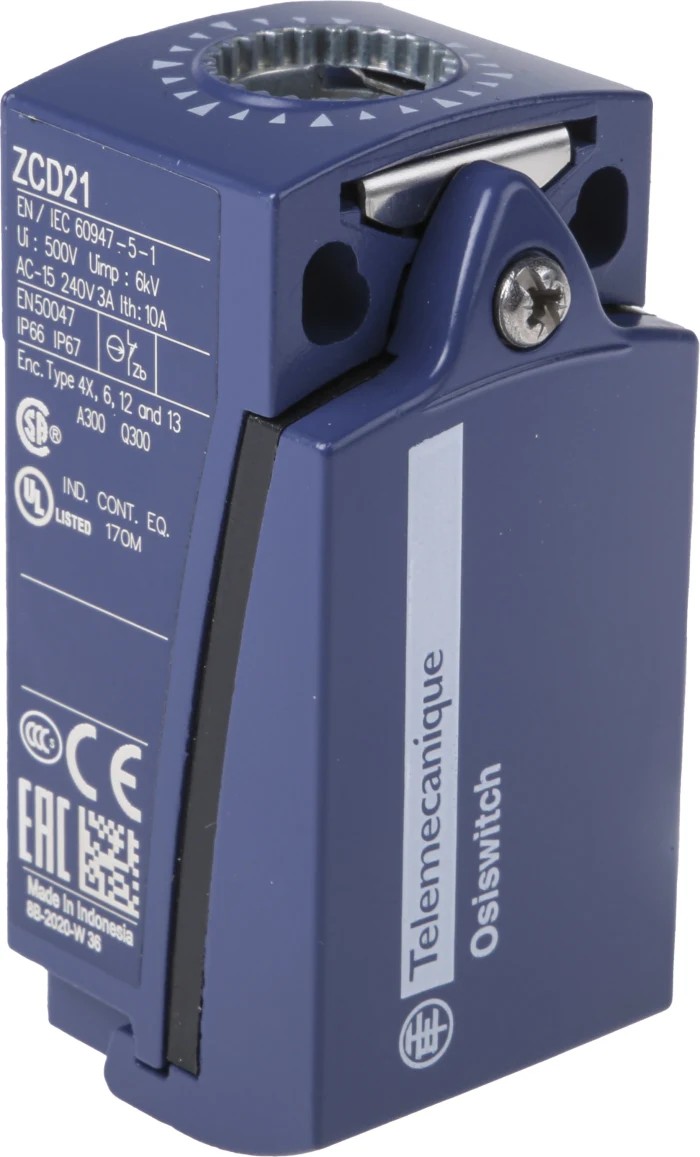

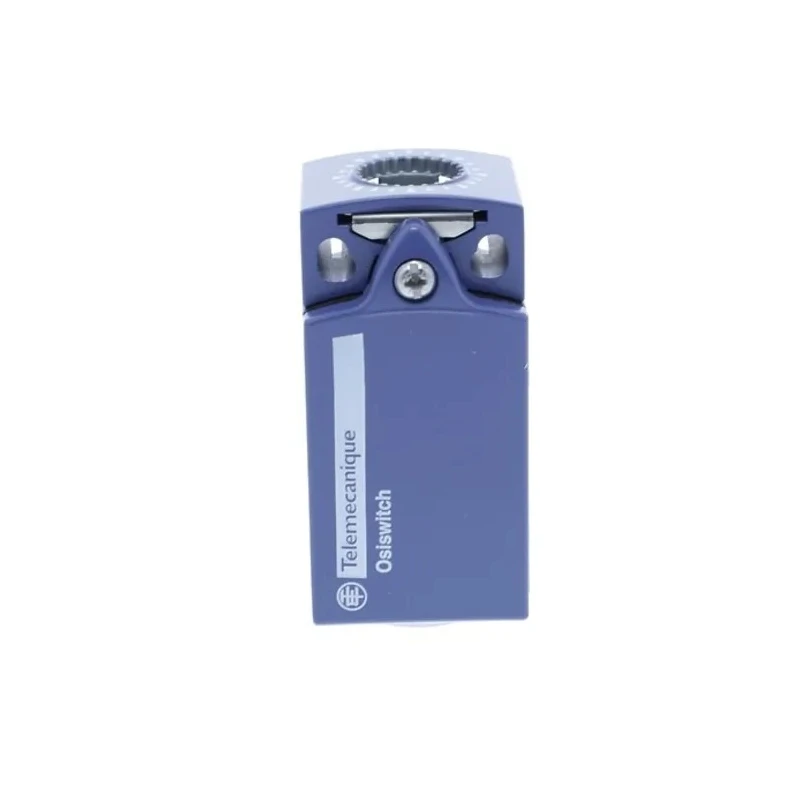

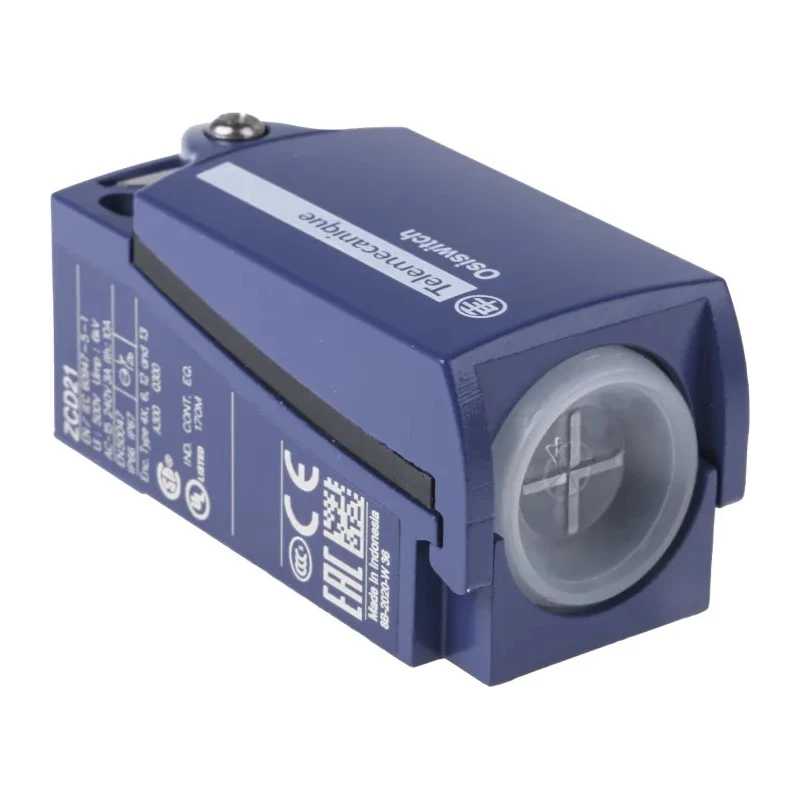

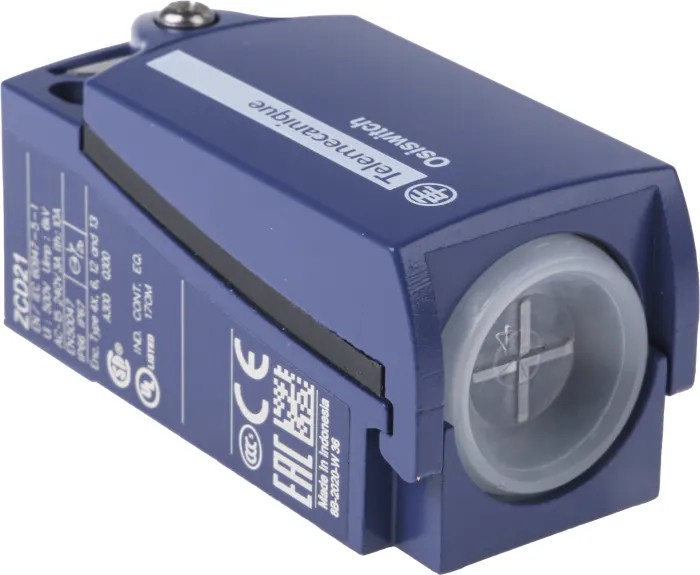

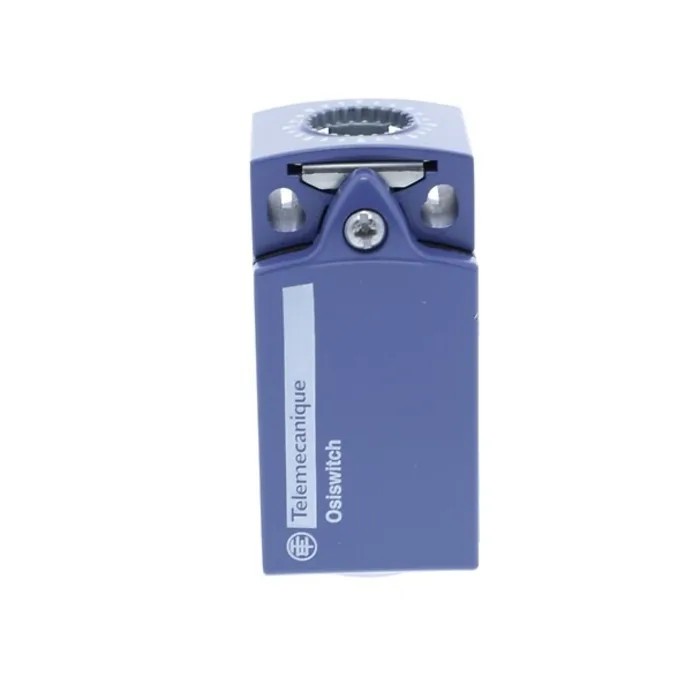

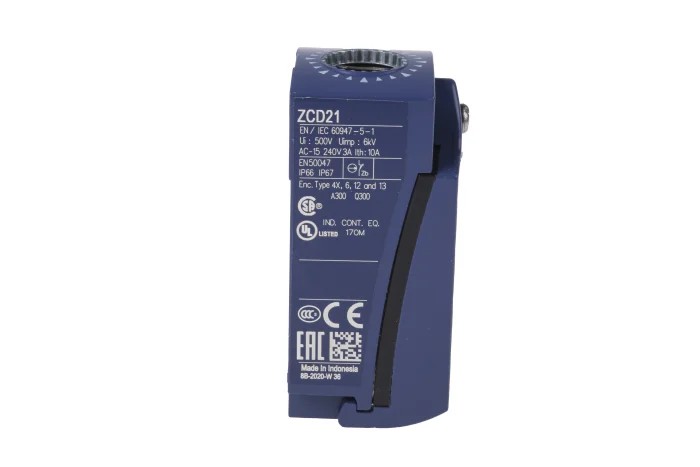

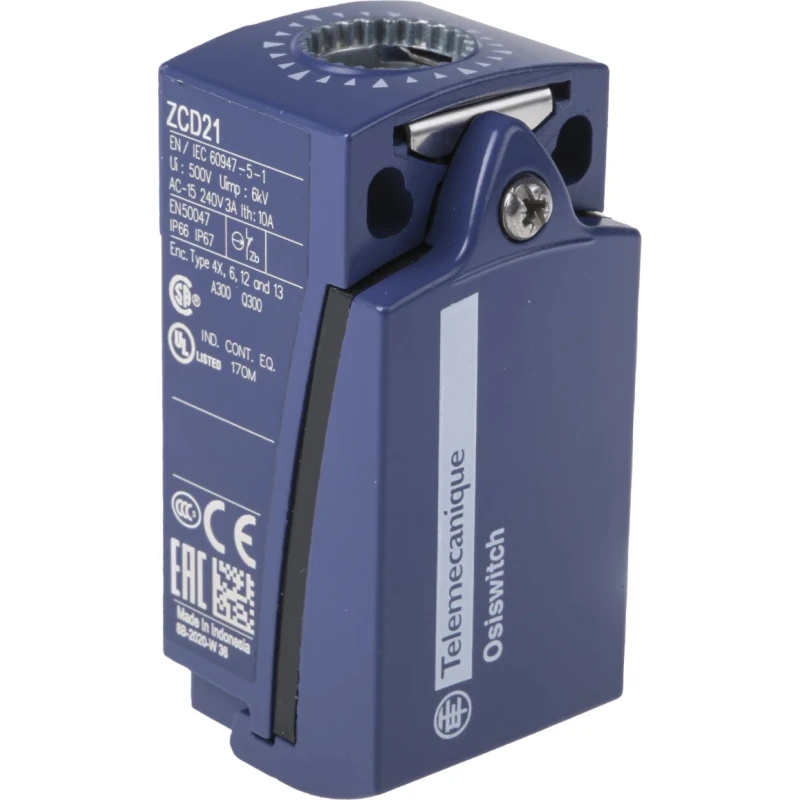

Telemecanique Sensors ZCD Series Limit Switch Body 1 NO/1 NC, IP66/IP67, Zamak Housing, 240V AC, 1.5A ZCD21
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 65mm |
| Model | ZCD21 |
| Depth | 30mm |
| IP Rating | IP66, IP67 |
| Width | 31mm |
| Housing Material | Zamak |
| Series | ZCD |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1.5A |
| Terminal type | Screw Clamp |
| Standards/Approvals | RoHS, REACH, IEC, EN |
| Mechanical Life | 5000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
Key Features
- Compact design with snap-action contacts for precise position detection.
- Durable zamak housing providing excellent corrosion resistance.
- Rated for 240V AC and 1.5A switching current.
- Screw clamp terminals ensure secure and vibration-resistant wiring.
- Wide operating temperature range from -25°C to 70°C.
- Suitable for industrial automation and control system applications.
- Mechanical life rated for up to 5,000,000 cycles.
- IP66/IP67 rating enables reliable use in washdown and harsh environments.
Product Description
Telemecanique Sensors ZCD21 limit switch body is a compact industrial enclosure designed to house a snap-action switching mechanism for accurate position detection in electrical and automation control systems. Featuring a tough zamak housing, this switch body is engineered for high durability and corrosion resistance, making it ideal for heavy-duty industrial environments.
With IP66 and IP67 ingress protection ratings, the switch body offers excellent protection against dust and water ingress, suitable for outdoor and washdown applications including food processing, chemical plants, and production lines exposed to moisture. It operates reliably over a wide temperature range from -25°C to 70°C, supporting various harsh environmental conditions.
The ZCD21 model includes one normally open (NO) and one normally closed (NC) contact configured with snap-action technology for swift and precise switching. It is rated for AC switching of up to 240V and 1.5A, and DC switching up to 250V, suitable for control circuit loads in industrial automation.
Screw clamp terminals enable secure, vibration-resistant wiring, facilitating installation in confined panels without requiring special ferrules. The mechanical life expectancy reaches 5 million cycles, ensuring long-lasting operation in repetitive machine-end travel detection, actuator positioning, and safety interlock systems.
Compact zamak housing with excellent corrosion resistance. IP66 and IP67 rated for dust and water ingress protection. 1 NO and 1 NC snap-action contacts for accurate switching. Switching current up to 1.5A at 240V AC and 250V DC.
Durable construction for demanding industrial environments. Screw clamp terminals for reliable wiring connections. Mechanical life of 5,000,000 cycles for extended service. Wide temperature range operation from -25°C to 70°C.
Compliance with RoHS, REACH, IEC, and EN standards.
This Limit Switch body is perfect for use in industrial automation for conveyor limit detection, valve and actuator positioning, control panel installations, and safety interlocks on production equipment. Its rugged design, high ingress protection, and long mechanical life make it a reliable choice in manufacturing, industrial machinery, and outdoor applications.
Explore the range of Telemecanique Sensors products at EnvMart for further industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a switching current of 1.5A at 240V AC and can also handle DC switching up to 250V.
The dimensions of this unit are 65mm in length, 31mm in width, and 30mm in depth.
The mechanical life of the ZCD21 is rated for up to 5,000,000 cycles, ensuring long-lasting operation.
It features one normally open (NO) and one normally closed (NC) contact, utilizing snap-action technology for precise switching.
This model has an IP66 and IP67 rating, providing excellent protection against dust and water ingress.
The ZCD21 operates reliably over a wide temperature range from -25°C to 70°C.
The housing of this limit switch is made from zamak, which provides excellent corrosion resistance.
It is equipped with screw clamp terminals, which ensure secure and vibration-resistant wiring connections.
This limit switch complies with RoHS, REACH, IEC, and EN standards.
It is suitable for industrial automation applications such as conveyor limit detection, valve and actuator positioning, and safety interlocks.
The snap-action contact type allows for swift and precise switching, enhancing the accuracy of position detection in control systems.
The country of origin for this model is Indonesia.
