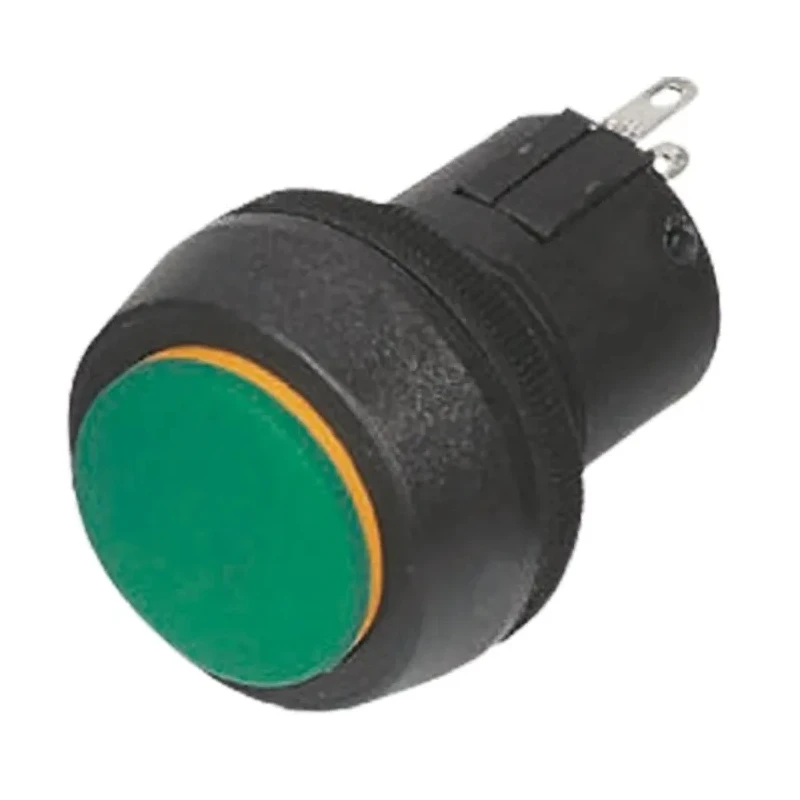

ITW Switches 76-97 Series Push Button Switch Latching Panel 22 mm Cutout SPDT IP67 250 V 10A 76-9712/439088G
Specifications
| Country of Origin | Belize |
|---|---|
| Brand | ITW Switches |
| Dimensions | Depth behind panel 28mm, max. panel thickness 6mm, panel cut-out 22.5mm |
| Model | 76-9712/439088G |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 76-97 |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Contact Rating | 10A @ 250V a.c |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Switch Operation | Latching |
| Actuator Colour | Green |
| Contact DC Voltage | 250V |
| Actuator Style | Button |
| Switch Contact Current | 10A |
| Contact AC Voltage | 250V ac |
| Electrical Life | 105 operations |
Key Features
- The switch features a green button actuator color for clear identification.
- It requires a 22 mm panel cutout size, suitable for panel mounting.
- It is rated for 250 V AC/DC with a contact current of 10 A, ensuring robust performance.
- The switch has an IP67 rating, providing excellent protection against dust and water ingress.
- The device operates reliably within temperatures ranging from -40°C to 105°C.
- The switch is non-illuminated and features a latching on-off operation for secure control.
- Its maximum panel thickness is 6 mm and depth behind the panel is 28 mm.
- Compliant with CSA and UL safety standards to ensure quality and reliability.
Product Description
ITW Switches 76-9712/439088G is a high-quality push button switch from the 76-97 series, designed primarily for panel mounting applications. This latching switch features a green button actuator providing tactile feedback and secure control with SPDT (Single Pole Double Throw) contact configuration, ideal for on-off switching needs.
Engineered for durability, this switch supports a contact rating of 10 A at 250 V AC/DC, making it suitable for a wide array of electrical and industrial automation applications. Its robust high-impact plastic body is sealed to IP67 standards, delivering dependable protection against dust and immersion in water, assuring functionality even in demanding environments.
The switch is designed for operational temperature ranges from -40°C to 105°C, allowing use in harsh climatic conditions. It connects via solder terminals and fits panel cutouts of 22 mm, with a maximum panel thickness of 6 mm and a mounting depth of 28 mm behind the panel.
Complying with CSA and UL certifications, the switch meets established electrical safety and performance criteria. Its electrical life of over 100 operations guarantees reliability in repetitive switching tasks. This product is sourced from Belize and is intended for use in industrial, panel assembly, HVAC control systems, and automated machinery interfaces.
The switch provides a robust and secure latching operation for industrial control panels. The non-illuminated green actuator ensures easy visibility and user control. The IP67 protection class guarantees resistance to dust and water ingress.
Compliant with CSA and UL standards for safety and reliability. Compact design fits panels with a 22 mm cutout and up to 6 mm thickness. Suitable for operating temperatures from -40°C to 105°C. Reliable solder terminal connections for secure wiring.
Long electrical life of 105 operations ensures durability in demanding environments.
This high-quality push button switch is ideal for integration in electrical, industrial automation, machinery control, and HVAC systems. Explore more in our Electronics & Electricals > Switches & Sockets > Push Button Switch category at EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a contact rating of 10 A at 250 V AC/DC, suitable for various electrical applications.
It has an IP67 rating, providing excellent protection against dust and immersion in water.
The switch operates reliably within a temperature range of -40°C to 105°C.
It features a Single Pole Double Throw (SPDT) configuration, allowing for on-off switching.
This switch requires a panel cutout size of 22 mm for proper installation.
The maximum panel thickness for this model is 6 mm.
It connects via solder terminals, ensuring secure wiring for reliable operation.
It complies with CSA and UL safety standards, ensuring quality and reliability.
The depth behind the panel required for this switch is 28 mm.
The electrical life of this switch is rated for over 100 operations, ensuring durability in use.
The actuator color is green, providing clear identification for users.
This model is ideal for use in industrial, panel assembly, HVAC control systems, and automated machinery interfaces.
