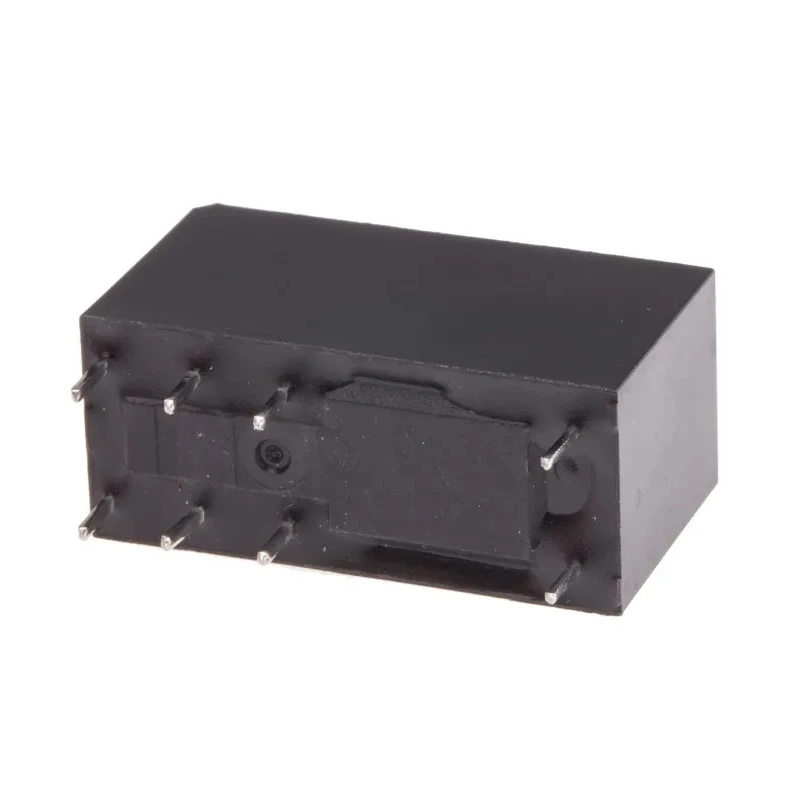

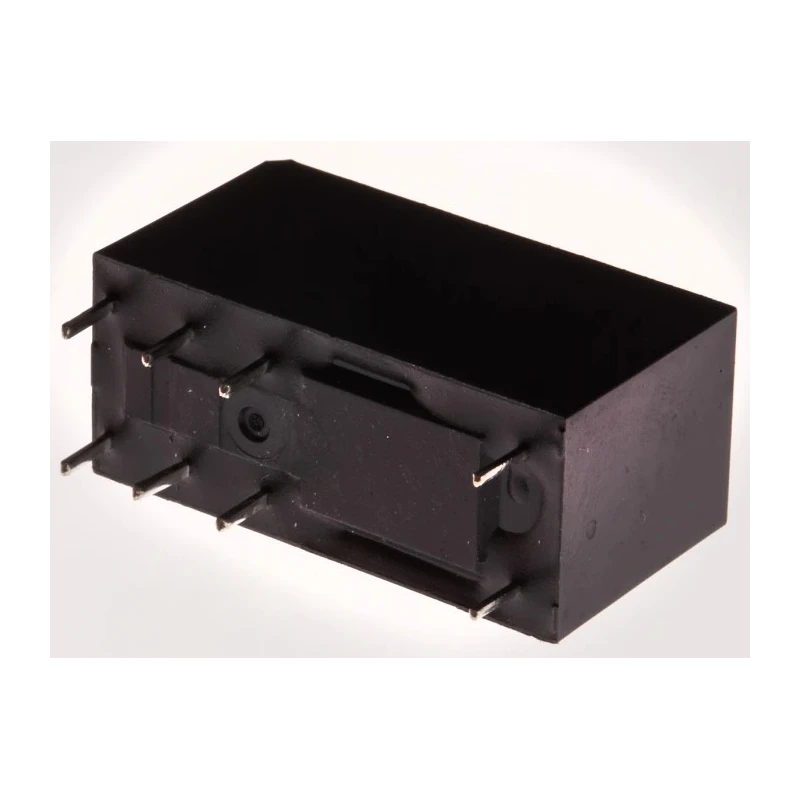

RS PRO PCB Power Relay, 24V DC Coil, 8A Switching Current, DPDT, Solder Terminal, Silver Alloy Contacts 0476791P

RS PRO 0476791P PCB Power Relay features a 24V DC coil and an 8A switching current, designed for efficient and reliable low profile relay switching in industrial, laboratory, automation, and manufacturing applications. The relay possesses a DPDT contact configuration with silver alloy contacts, ensuring superior conductivity and longevity in electrical circuits.

The relay is intended for PCB mounting with solder type terminals, providing secure mechanical and electrical connections. It supports switching voltages up to 300V DC and 440V AC, making it suitable for a broad range of applications including power control, automation systems, and signal conditioning circuits.

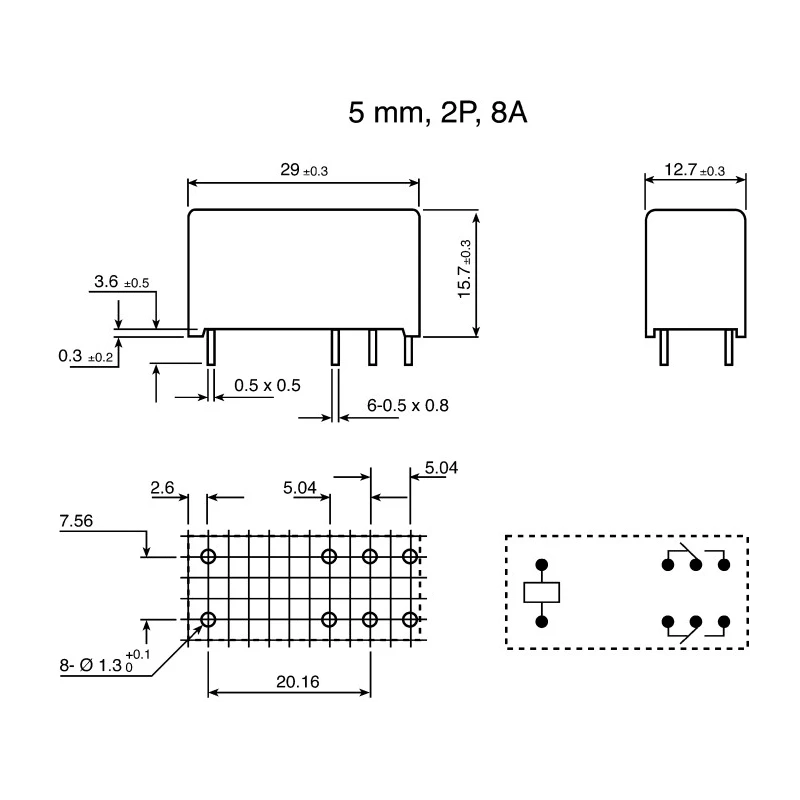

With compact dimensions of 29mm length, 12.7mm width, and a maximum height of 15.7mm, this relay fits well in space-constrained designs. Its operating temperature range from -40°C to 85°C guarantees high performance under extreme environmental conditions.

The coil’s resistance of 1.4kΩ and low coil power consumption of 400mW helps in reducing energy demand. Conformance to RoHS directives and certifications from UL, VDE, and CQC underline its compliance with international quality and safety standards.

The relay incorporates a dielectric strength of 5kV between coil and contacts and can handle surge voltages up to 10kV, enhancing its reliability in industrial electrical environments. It also features a creepage distance of 10mm to further ensure electrical safety.

Manufactured in China, RS PRO 0476791P is ideal for use in electrical panels, HVAC systems, industrial machines, and automated control systems. This relay offers dependable performance for engineers and OEMs requiring robust switching components.

DPDT contact configuration with silver alloy contacts ensures reliable signal switching. Designed for solder terminal type for secure PCB mounting. Switching voltage ratings of 300V DC and 440V AC provide versatile applications.

Compact dimensions of 29mm length, 12.7mm width and 15.7mm height facilitate integration in constrained spaces. Operating temperature range from -40°C to 85°C accommodates diverse industrial environments. Coil resistance of 1.4kΩ and coil power of 400mW optimize energy efficiency.

Complies with RoHS standards and carries approvals from UL, VDE, and CQC. High dielectric strength of 5kV between coil and contacts enhances durability. Surge voltage capability up to 10kV protects against transient spikes.
