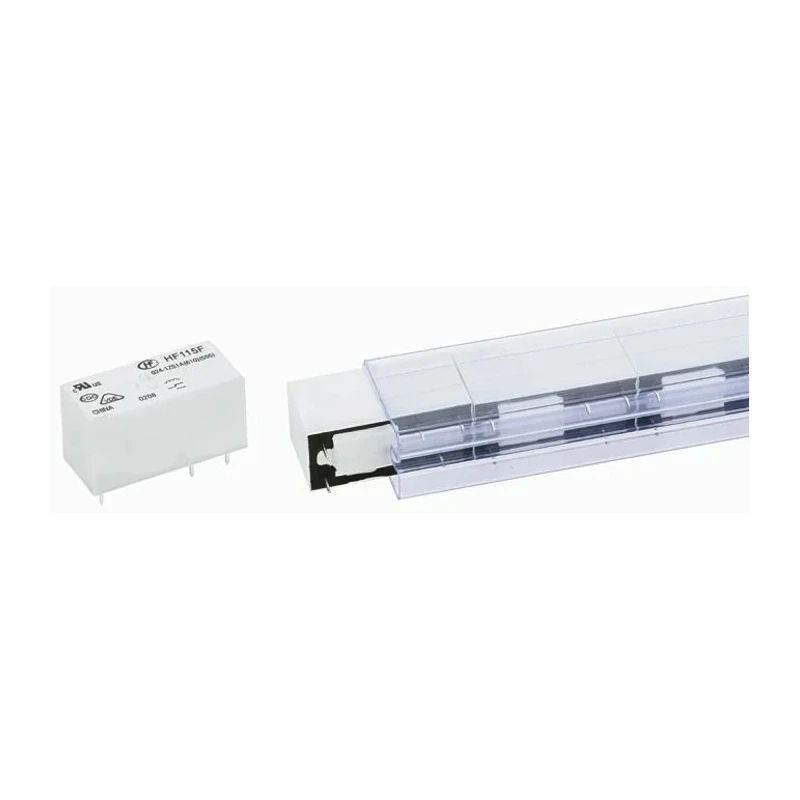

RS PRO PCB Power Relay 6V DC Coil 16A Switching Current SPDT 4kVA Switching 0476797P

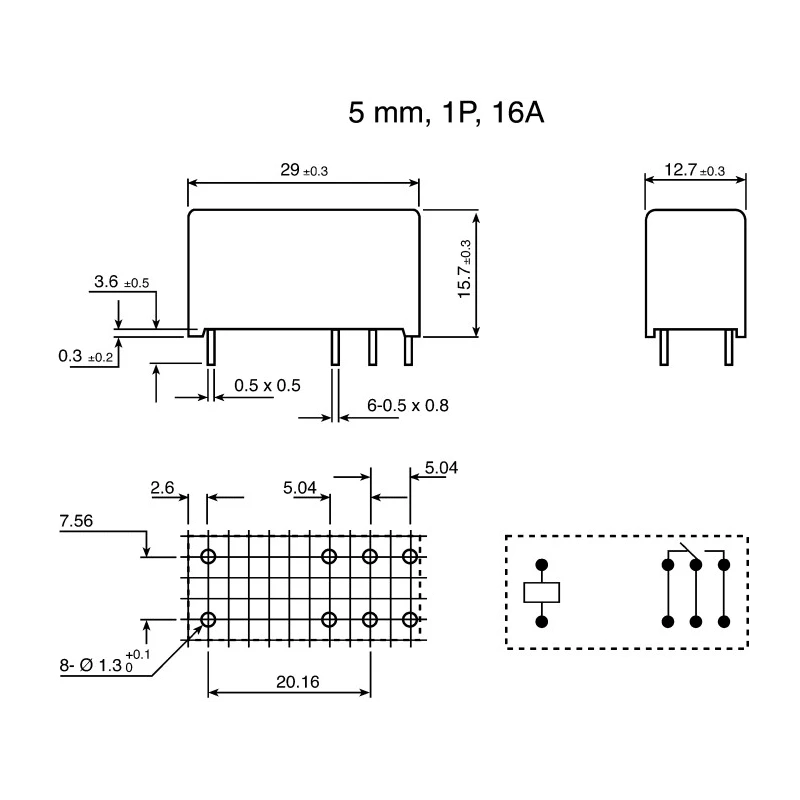

RS PRO 0476797P is a high-quality PCB Power Relay with a 6V DC coil and a 16A switching current, designed for precise control in industrial and electronic applications. With a compact low profile height of 15.7mm and solder terminal type, this SPDT relay is ideal for PCB mounting in environments requiring efficient space usage.

The relay supports switching power up to 4kVA, with AC voltage ratings of 440V and DC voltage ratings of 300V, suitable for robust switching operations. Silver alloy contacts provide reliable conductivity and resistance to wear, while the relay’s coil resistance of 90 ohms and 400mW coil power ensures energy efficient operation.

Engineered to operate under rigorous conditions, it withstands temperatures from -40°C to 85°C, and features a dielectric strength of 5kV between coil and contacts along with surge voltage handling up to 10kV. The unit’s wash-tight construction further enhances its reliability in industrial environments.

This RS PRO relay complies with RoHS standards and carries approvals from recognized bodies such as UL, VDE, and CQC, assuring quality and safety. Its 5mm pinning enhances compatibility with 8 and 16A versions, making it a versatile component for automation, manufacturing, and electrical control systems.

Features a 6V DC coil voltage suitable for low voltage control circuits. Supports a switching current of up to 16 amps for demanding electrical loads. Single Pole Double Throw (SPDT) contact configuration for versatile switching.

Low profile design with maximum height of 15.7mm for space-constrained applications. Capable of switching AC voltages up to 440V and DC voltages up to 300V. Constructed with silver alloy contact material to ensure high conductivity and longevity.

Operating temperature range from -40°C to 85°C ensures durability in diverse environments. Coil resistance of 90 ohms and coil power consumption of 400mW for efficient operation. Meets RoHS standards and holds approvals from UL, VDE, and CQC for industry compliance.

Wash tight construction with surge voltage up to 10kV and dielectric strength of 5kV between coil and contacts.

This product is ideally suited for industrial, manufacturing, HVAC, automation, and electrical control applications requiring reliable and compact power relays. Explore EnvMart's extensive range of RS PRO Power Relays to find compatible components for your projects.
