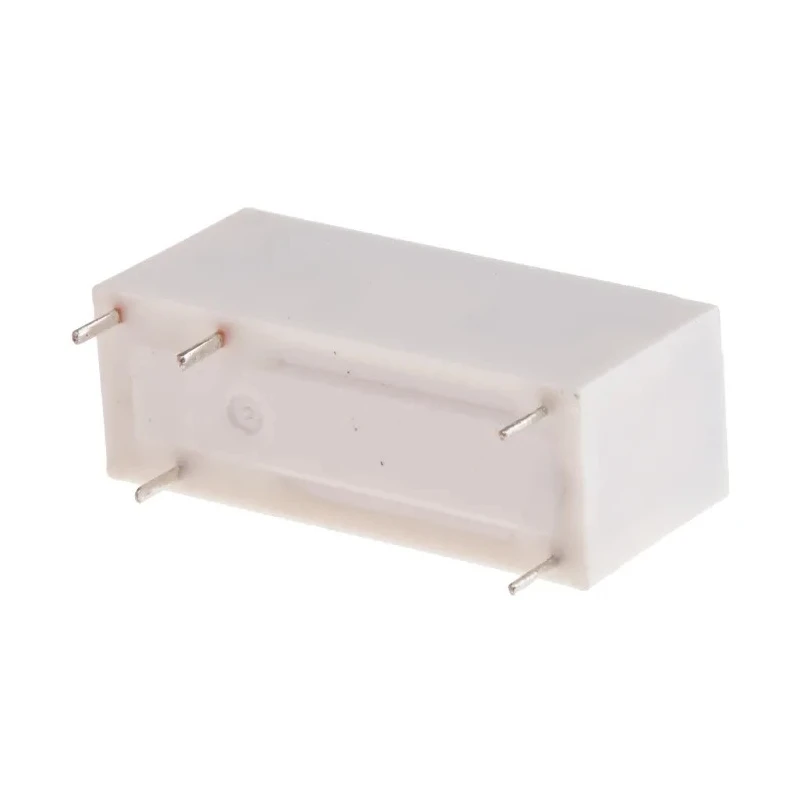

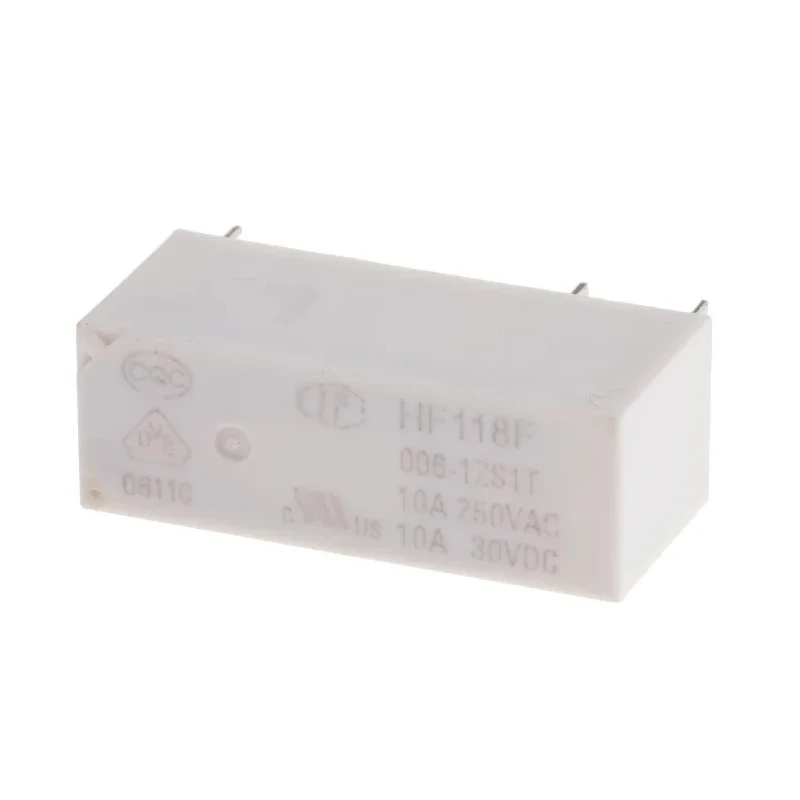

RS PRO PCB Power Relay, 6V DC Coil, 10A Switching Current, SPDT 0476684P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 12.5mm |
| Length | 28.5mm |
| Model | 0476684P |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.5mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 164Ω |
| Coil Voltage | 6V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 290mW |
Key Features
- Operates with a 6V DC coil voltage for efficient control.
- Supports switching current up to 10 amperes, suitable for moderate power loads.
- Single Pole Double Throw (SPDT) contact configuration delivers versatile switching options.
- Designed for PCB mounting with solder terminal type for stable connectivity.
- Compact dimensions with a low profile height of 12.5mm enable space-saving PCB integration.
- Switching power rated at 2.5 kVA ensures robust performance in AC circuits.
- Can switch DC voltage up to 125V and AC voltage up to 440V for diverse applications.
- Features silver alloy contact material providing reliable conductivity and low contact resistance of 100mΩ.
Product Description
RS PRO 0476684P PCB Power Relay is engineered for reliable switching in electrical and industrial control applications. Featuring a 6V DC coil voltage and a 10A switching current capacity, this SPDT relay is optimized for printed circuit board mounting with solder terminals, providing robust electrical connectivity and mechanical stability.
This power relay boasts a compact and extra low profile design with a maximum height of 12.5mm, making it ideal for space-constrained PCB assemblies. Its switching power rating of 2.5 kVA supports efficient handling of demanding AC loads, while the capability to switch DC voltages up to 125V and AC voltages up to 440V increases versatility in various circuits.
The relay incorporates silver alloy contacts which ensure high conductivity and low contact resistance of 100 milliohms, enhancing electrical efficiency and reliability. With a coil resistance of 164 ohms and power consumption of just 290 milliwatts, it offers an energy-conscious solution for control systems.
RS PRO 0476684P maintains durable performance through a broad operating temperature range from -40°C to 85°C and complies fully with RoHS directives, IEC 60335-1 safety standards, and VDE approvals. Its excellent dielectric strength of 5kV between coil and contacts and surge voltage capabilities up to 10kV provide enhanced protection against electrical transients.
This relay is wash tight with a creepage distance greater than 8mm and conforms to international safety and quality standards including UL, VDE, and CQC. It is perfectly suited for industrial, manufacturing, HVAC, and automation applications requiring dependable power relay solutions.
Operates with 6V DC coil voltage and consumes 290mW coil power. Switching current rated at 10A with SPDT contact configuration. Low profile design with a height of 12.5mm and 28.5mm length. Switches up to 125V DC and 440V AC with switching power of 2.5 kVA.
Silver alloy contacts ensure low resistance and high conductivity. Meets RoHS, IEC, UL, VDE, and CQC standards for quality and safety. Suitable for PCB mounting with solder-type terminals. Wide operating temperature range from -40°C to 85°C.
Dielectric strength of 5kV and surge voltage up to 10kV between coil and contacts. Explore more Power Relays and electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 6V DC.
It supports a maximum switching current of 10A.

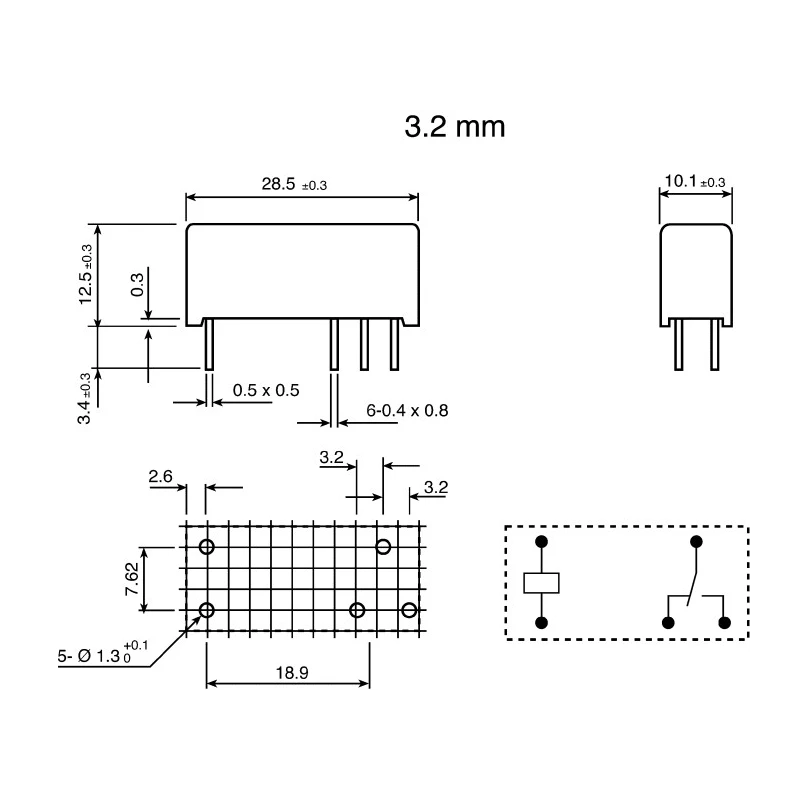

This model has a height of 12.5mm, a length of 28.5mm, and a width of 10.1mm.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
It can switch DC voltages up to 125V and AC voltages up to 440V.
The coil power consumption is 290 milliwatts.
It uses silver alloy contacts, which provide reliable conductivity and low contact resistance.
The relay operates within a temperature range of -40°C to 85°C.
It has a dielectric strength of 5kV between the coil and contacts.
Yes, it complies with RoHS directives, IEC 60335-1 safety standards, and has VDE approvals.
This model is designed for PCB mounting with solder terminals.
The contact resistance is rated at 100 milliohms.
