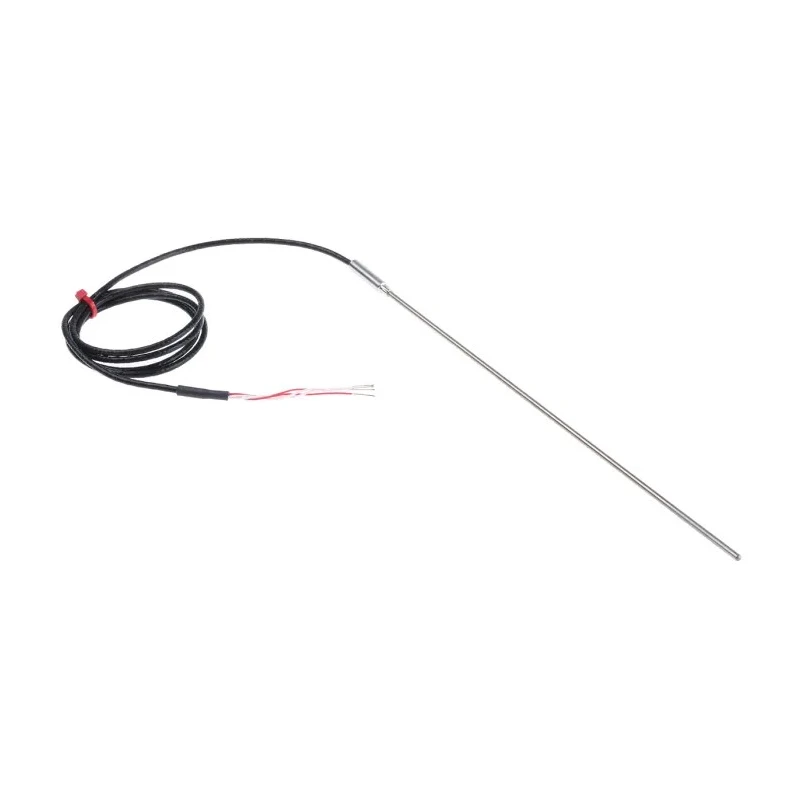

RS PRO PT100 RTD Sensor 3 mm Dia, 250 mm Long, 4 Wire, Class B Accuracy, Stainless Steel Probe PT100

RS PRO PT100 RTD Sensor PT100 model is a high precision platinum resistance Temperature Sensor featuring a 3 mm diameter and 250 mm length probe with 4 wire connection and Class B accuracy rating.

This sensor is constructed with a rugged stainless steel probe that enables durability and excellent resistance against corrosion, suitable for demanding industrial environments. The 4-wire design helps to compensate for lead wire resistance, providing accuracy over the extensive temperature range from -50°C up to 500°C.

This temperature probe is flexible enough to be bent for installation in difficult or confined spaces and is equipped with a 1 meter bare wire tail for connectivity. It is particularly well suited for industrial applications such as heating systems, air conditioning units, stoves, grills, food processing plants, and energy equipment.

The sensor is engineered to endure high pressure, high vacuum, and vibrations which are common in industrial settings, ensuring reliable performance and measurement stability. The sensor probe is made of robust stainless steel material.

4-wire configuration minimises lead resistance error for trusted accuracy. Temperature range capability from -50°C to 500°C. Probe dimensions: 3 mm diameter and 250 mm length, optimal for varied installation needs. Includes a 1 m bare wire termination cable for flexible connectivity.

Class B accuracy ensures dependable temperature sensing. Designed for rugged industrial usage including exposure to pressure and vibration. Applicable in HVAC, food processing, heating, and energy monitoring.

The RS PRO PT100 sensor offers a reliable, industry-certified temperature measurement solution serving a broad spectrum of industrial and commercial temperature sensing applications.
