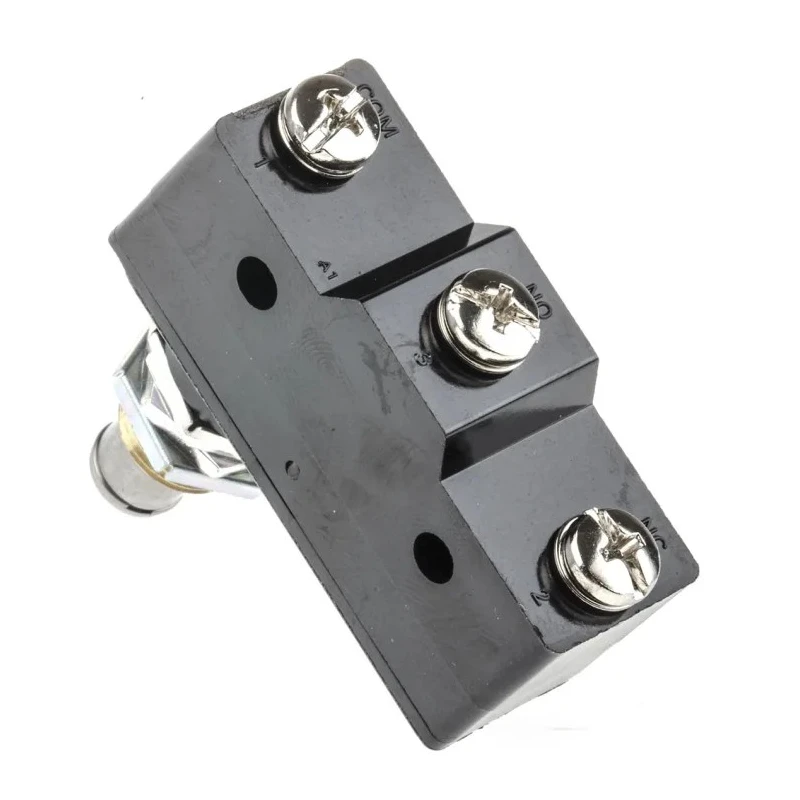

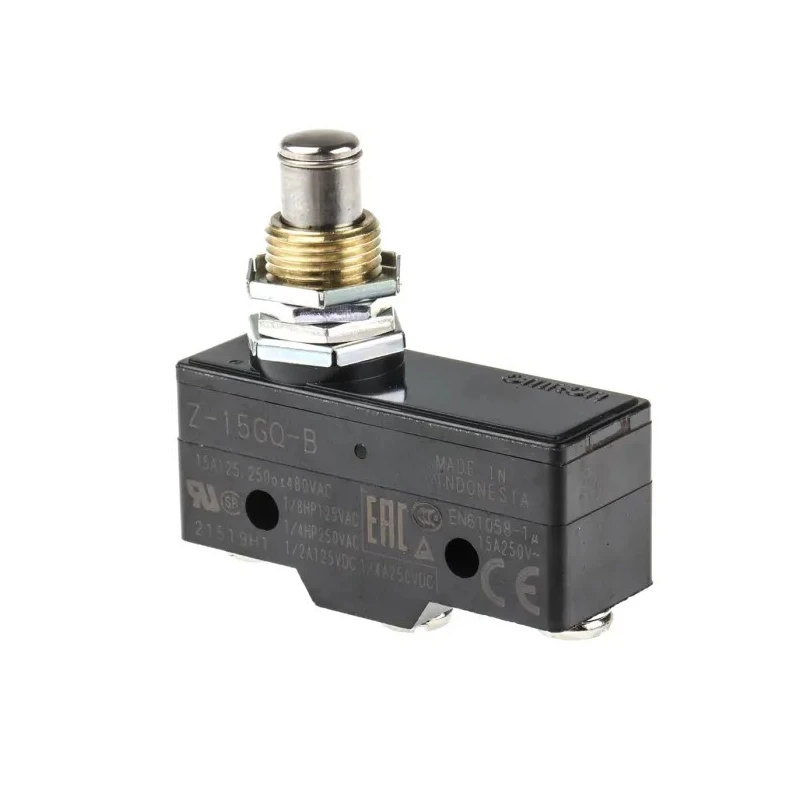

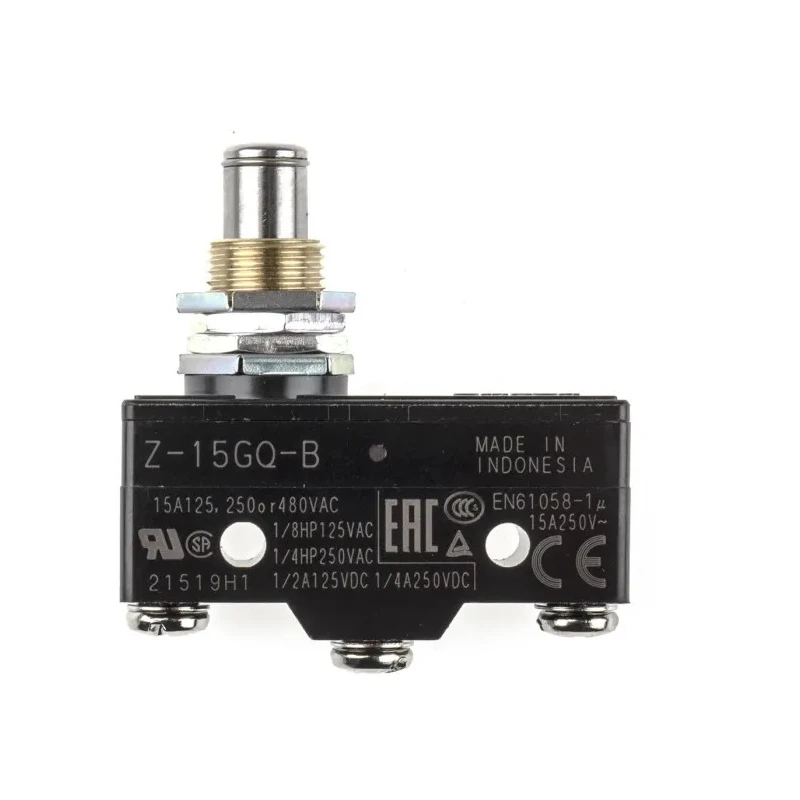

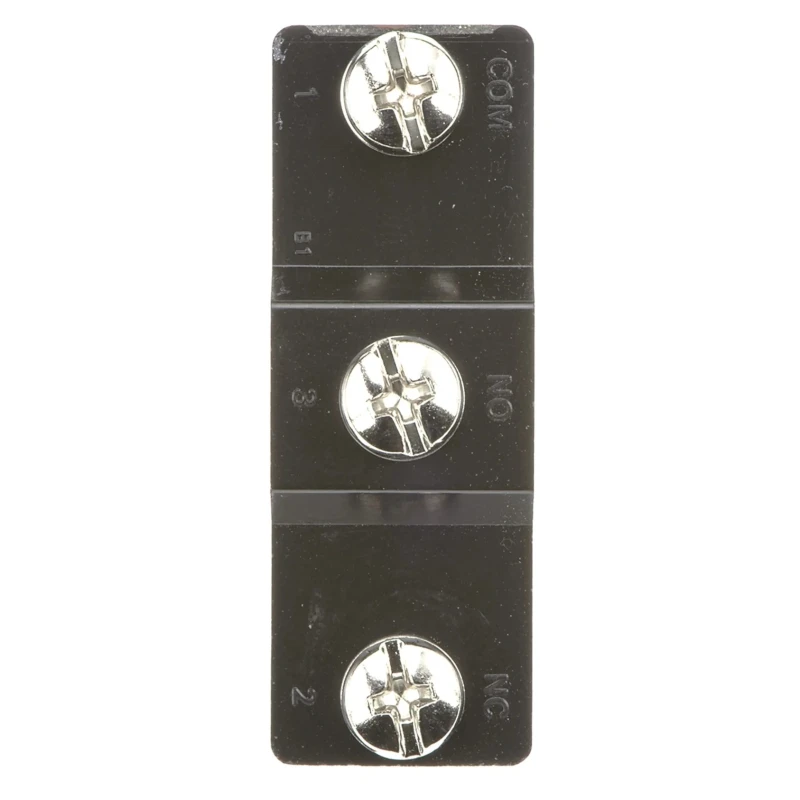

Omron Z Series Plunger Limit Switch, SPDT, IP00, 250V AC, 15A, Screw Terminal, Indonesia Origin

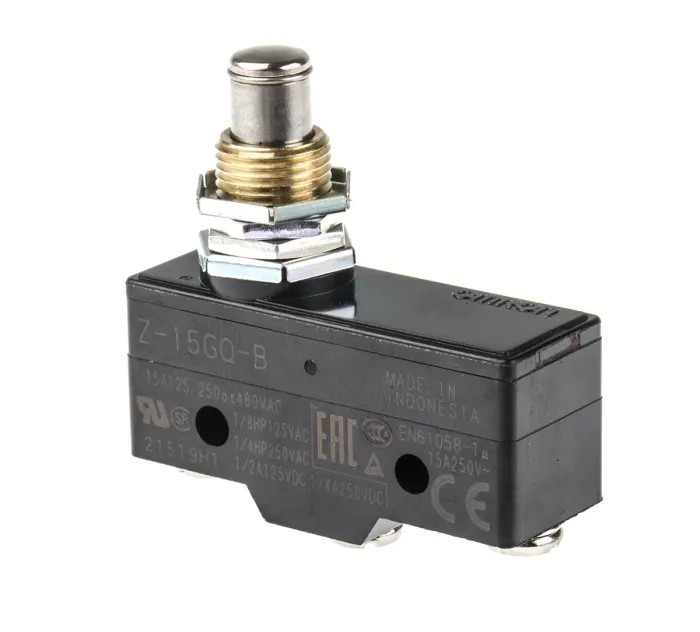

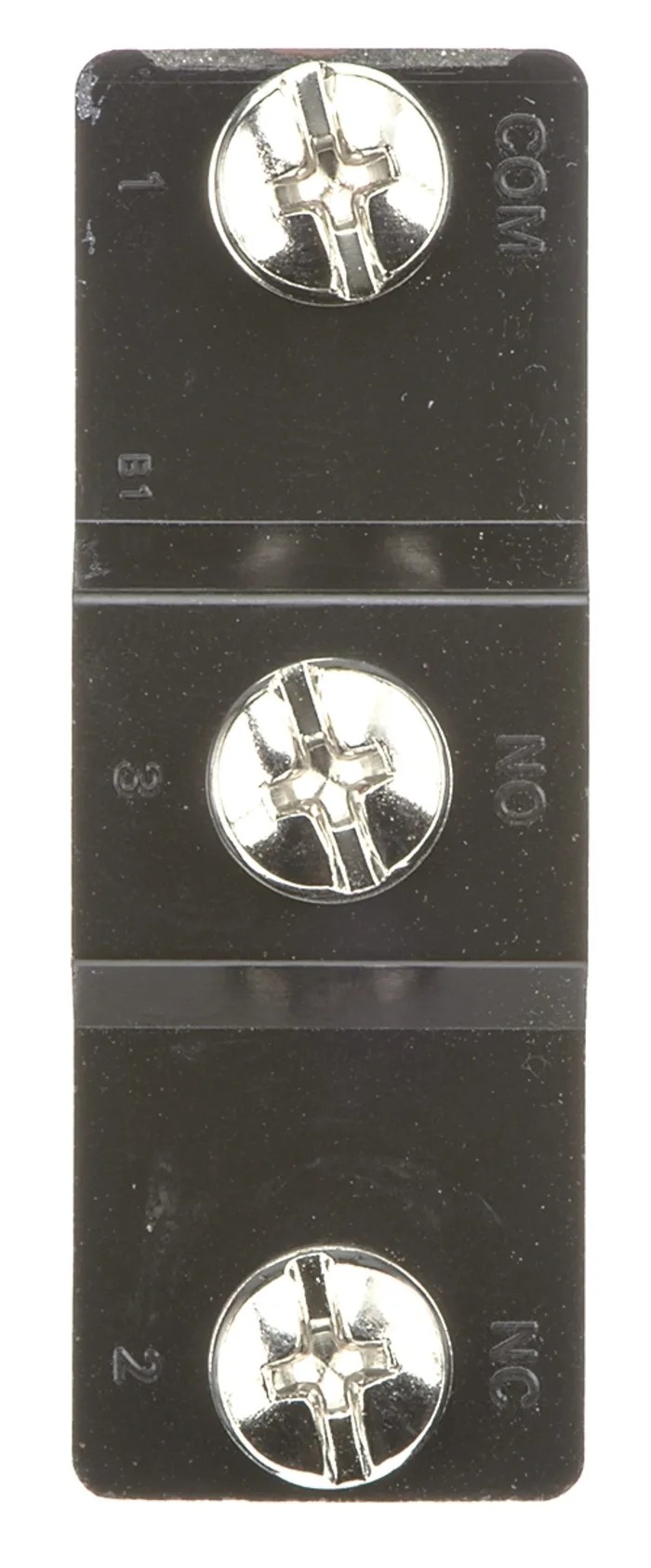

Omron Z-15GQ-B plunger limit switch from the Z Series offers reliable and precise actuation for industrial automation and control systems. This SPDT switch operates at 250V AC with a switching current of 15A and features screw terminal connections for secure wiring. Its IP00 rating indicates no ingress protection, making it suitable for clean, controlled environments.

The actuator is a plunger type with a diameter of 8.35 mm, designed to respond accurately to forces between 2.45 and 3.43 N. Lock nuts provide easy height adjustment of the plunger to optimize system setup. Silver contacts provide excellent electrical conductivity and corrosion resistance, ensuring efficient performance and longevity.

Engineered to operate in harsh industrial settings, this switch maintains functionality within a wide temperature range from -25°C to 80°C. Its mechanical lifespan is rated for 10 million cycles, ensuring durability. A small contact gap of 0.5 mm minimizes arcing, protecting connected equipment from potential damage.

Electrical insulation is rated for 1000V AC at 50/60Hz for one minute, limiting breakdown risk during power surges. The compact dimensions (47.3 mm length, 49.2 mm width, and 17.45 mm depth) and panel mounting arrangement simplify integration into panels or enclosures in automation applications.

Common industrial use cases include robotic arms, CNC machines, printing presses, and general machinery control where precise position sensing is critical. The switch adheres to CCC, CE, CSA, and UL approvals, confirming global compatibility and safety standards.

The plunger actuator delivers precise control to start or stop equipment reliably. Silver contacts reduce electrical losses and enhance corrosion resistance. Wide operating temperature range supports diverse industrial environments.

Panel mounting with dual holes enables secure installation. Mechanical life of 10 million cycles ensures long-term reliability. Insulation withstands 1000V AC power surges for safety. A compact design facilitates easy inclusion in control assemblies.

Manufactured in Indonesia to stringent quality standards. Discover more Limit Switches and browse the full Omron range on EnvMart to find the optimal product for your industrial automation needs.
