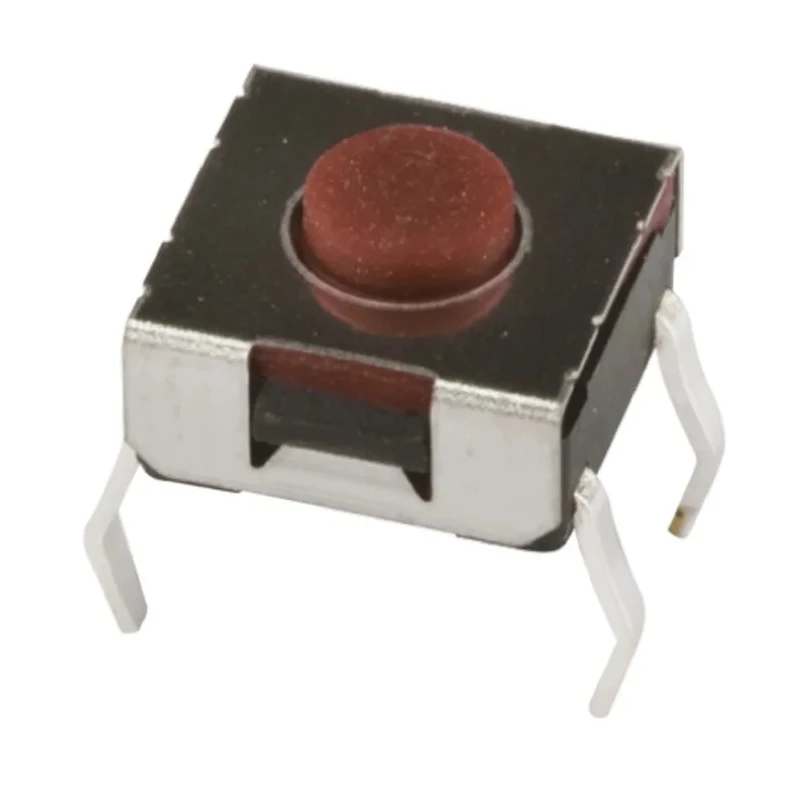

APEM Brown Tactile Switch Button 9 mm SPST-NO 50 mA 12 V dc Surface Mount DTSHW69NV
Specifications
| Country of Origin | China |
|---|---|
| Brand | APEM |
| Height | 3.8mm |
| Length | 6.2mm |
| Model | DTSHW69NV |
| Width | 6.3mm |
| Mount Type | Surface |
| Series | DTS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST-NO |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Brown |
| Actuator Length | 9mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Button |
| Actuator Orientation | Top |
| Switch Contact Current | 50mA |
| Operating Force | 1.56N |
| Mechanical Life | 500000Cycles |
Key Features
- The switch has a SPST-NO contact configuration supporting 50 mA current at 12 V dc.
- The actuator is brown colored, button style, with a 9 mm length and top orientation.
- Mount type is surface with actuator length of 9 mm and overall compact dimensions.
- Operating temperature range from -25°C to 70°C ensures reliable performance.
- It offers a mechanical life of 500,000 cycles with an operating force of 1.56 N for tactile feedback.
- The switch complies with RoHS standards and is part of the DTS series for robust commercial use.
- Compact size of 6.2 mm length, 6.3 mm width, and 3.8 mm height.
Product Description
APEM DTSHW69NV Brown Tactile Switch Button is a high-quality surface mount tactile switch designed for precise momentary switching applications in electronics and electrical systems. Featuring a SPST-NO contact configuration, it supports a contact current of 50 mA at 12 V dc, making it suitable for low power signal switching and control.
This switch is equipped with a brown button actuator that measures 9 mm in length and is top-oriented for easy user interaction. Its compact structural dimensions include a length of 6.2 mm, width of 6.3 mm, and a height of 3.8 mm, enabling integration into space-constrained devices and control panels.
The switch offers a wide operating temperature range from -25°C to 70°C, ensuring stable performance in various environmental conditions. Its mechanical life is rated at 500,000 cycles and the operating force required is 1.56 N, providing reliable tactile feedback for users in industrial, commercial, and consumer electronics applications.
Manufactured in China, this tactile switch complies with RoHS directives, reflecting environmental responsibility. It is part of the DTS series renowned for quality and endurance in commercial tactile switch solutions.
The switch features surface mount configuration with through-hole terminals for flexible PCB assembly. Its SPST-NO (Single Pole Single Throw - Normally Open) configuration supports momentary contact operation ideal for user input devices.
The tactile operating force and robust actuator design enhances durability and user experience. Applicable across diverse applications including electronic control panels, automation devices, and consumer electronic gadgets.
Compact size and high cycle life support long-term reliability in automated systems and instrumentation.
Choose APEM DTSHW69NV Tactile Switch for precision electronic control with durable build and effective switching characteristics. Browse through EnvMart’s Electronics & Electricals category to explore more switch components and accessories for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a SPST-NO (Single Pole Single Throw - Normally Open) contact configuration, which supports momentary contact operation.
It supports a contact current of 50 mA at a voltage of 12 V dc.
The dimensions of the switch are 6.2 mm in length, 6.3 mm in width, and 3.8 mm in height.
The operating temperature range is from -25°C to 70°C, ensuring stable performance in various environmental conditions.
The mechanical life of the switch is rated at 500,000 cycles, providing long-term reliability for various applications.
It features a surface mount configuration with through-hole terminals for flexible PCB assembly.
The actuator is a button style and is brown in color, measuring 9 mm in length.
The operating force required is 1.56 N, providing tactile feedback for users.
Yes, it complies with RoHS standards, reflecting environmental responsibility in its manufacturing.
This model is part of the DTS series, known for quality and endurance in commercial tactile switch solutions.
It is applicable across diverse applications including electronic control panels, automation devices, and consumer electronic gadgets.
The switch provides momentary operation, which is ideal for user input devices.
