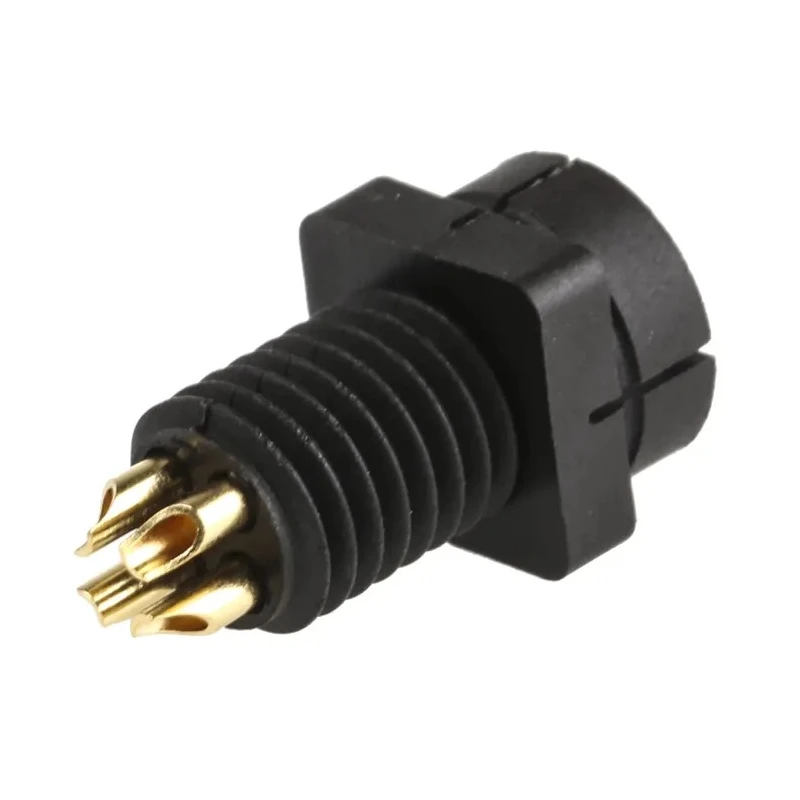

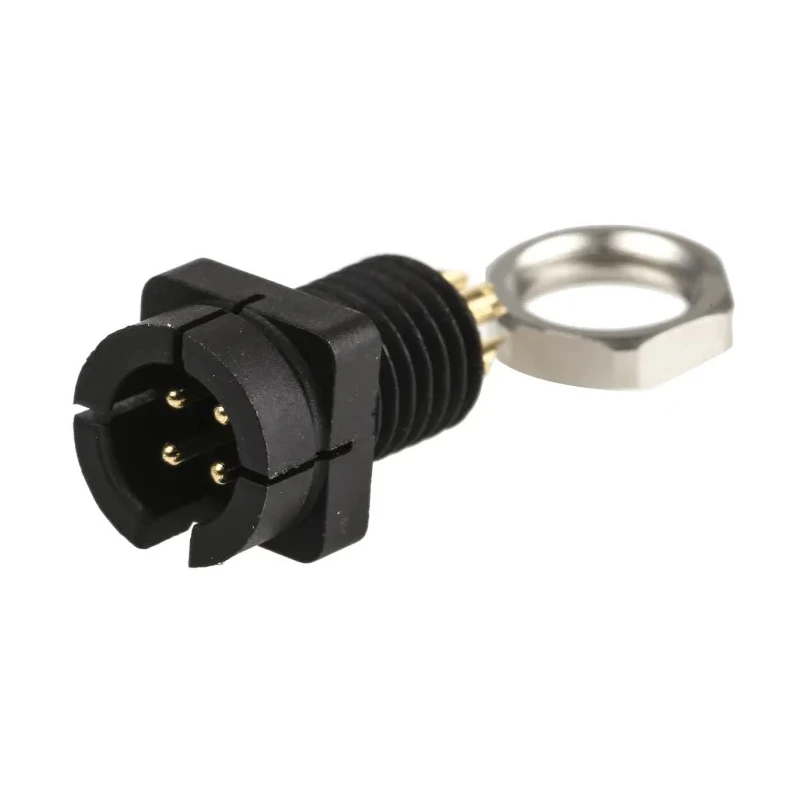

binder Circular Connector 4 Contacts Panel Mount Subminiature Connector Plug Male IP40 719 Series 09-9765-30-04

binder 09-9765-30-04 Circular Connector from the 719 Series is a 4-contact subminiature panel mount plug designed for industrial circular connector applications. Constructed with a polyamide housing and brass contacts plated in gold, it ensures durability and excellent electrical performance.

This connector supports a voltage rating of 60V and a current rating of 3A, with a threaded mating type that provides secure connections. The solder termination design accepts wire sizes up to 0.25mm², making it easy to assemble and maintain.

With an IP40 rating, the connector is protected against intrusion by solid objects above 1 millimeter, suitable for controlled industrial and instrumentation environments. The operating temperature range from -25°C to 70°C allows this product to function reliably in diverse conditions.

The compact 6.4 mm shell size and straight orientation make it ideal for microelectronics, instrumentation, and industrial power connector applications requiring high precision and small form factor.

Manufactured in Germany, this 719 Series subminiature connector features a snap-in locking system, offering an efficient and versatile connection solution. The product is a male plug, panel mount type, guaranteed new and ready for demanding industrial usage.

This circular connector features a panel mount design suitable for subminiature connector applications. It has 4 brass contacts with gold plating to ensure excellent conductivity and corrosion resistance. The IP40 rated housing made of polyamide provides protection against solid objects larger than 1mm.

Operates safely at voltages up to 60V and current capacity of 3A with threaded mating type. The connector’s solder termination accepts wire sizes up to 0.25mm² for secure connections. Designed for operating temperatures ranging from -25°C to 70°C, suitable for various industrial environments.

The fixed straight orientation and 6.4 mm shell size suit compact and precise instrumentation needs. Manufactured in Germany, this connector is part of the reliable binder 719 Series known for snap-in locking mechanisms.

Its male plug contact gender and panel mount design facilitate efficient wiring in industrial electronics and instrumentation. Explore EnvMart for more Industrial Circular Connectors and related electronic components tailored for professional electronic assembly and industrial use cases.
