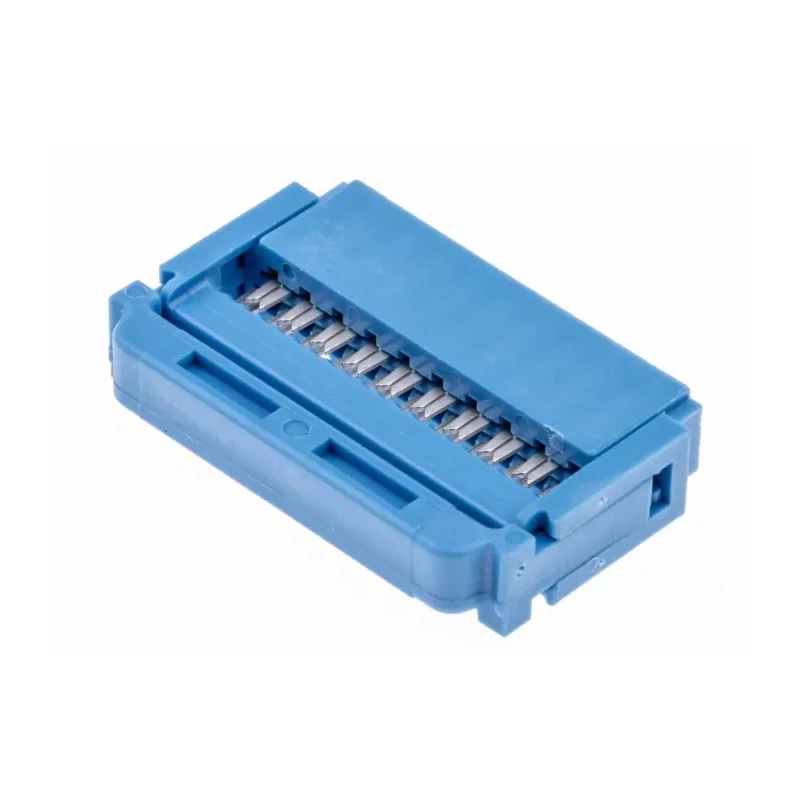

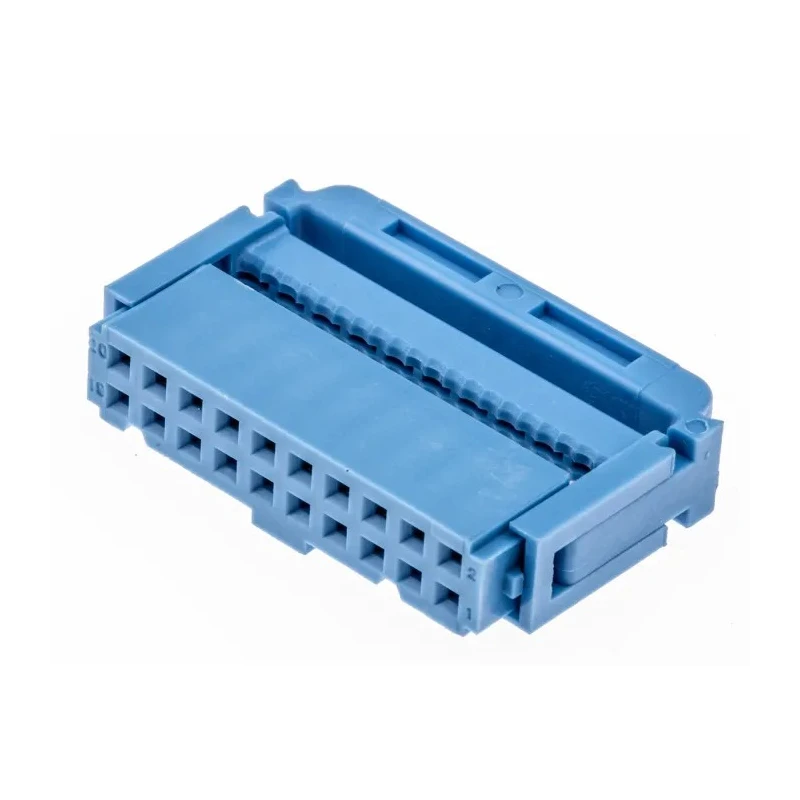

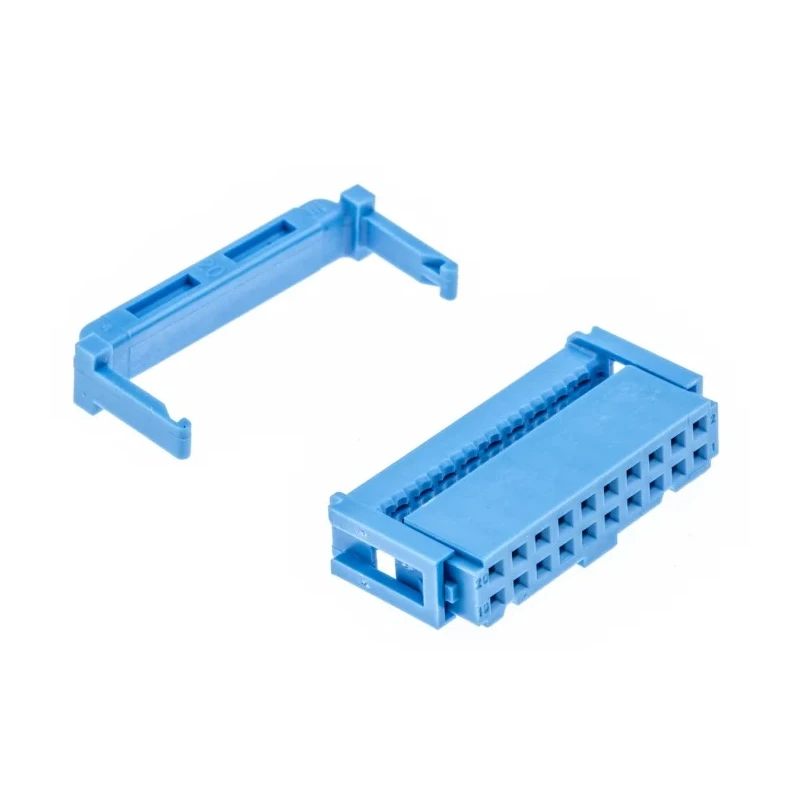

TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row, 250V, 1A, AMP-LATCH 622 Series 1658527-8
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | AMP-LATCH 622 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| TE Connectivity 20-Way IDC Connector Female for Cable, 2 RowBrand | TE Connectivity |
Key Features
- Supports 20 contacts arranged in 2 rows for versatile connectivity.
- Rated for 1 ampere current and 250 volts voltage.
- Features a shrouded female connector with a right angle orientation.
- Utilizes AMP-LATCH 622 series design for compatibility with 26-28 AWG ribbon cables.
- Constructed with beryllium copper contacts plated gold over nickel for durability.
- Housing made of thermoplastic rated UL 94V-0 for high temperature resistance.
- Operates reliably between -55°C to 125°C temperature range.
- Employs IDC termination type with single slot, flat tuning fork style contacts spaced at 2.54mm pitch.
Product Description
TE Connectivity 1658527-8 20-Way IDC Connector Female for Cable, 2 Row offers engineered performance for electronic component connectivity applications. Designed with 20 gold-over-nickel plated beryllium copper contacts arranged in 2 rows, this shrouded female connector supports a current rating of 1A and voltage rating of 250V. The connector utilizes a right angle orientation and cable mounting style ensuring reliable and compact cable assemblies.
This product belongs to the AMP-LATCH 622 series and is suitable for use with 26 to 28 AWG PVC insulated flat ribbon cables. Contact spacing is 2.54mm pitch with single slot, flat tuning fork style design that allows for IDC termination without soldering. The housing is constructed from UL 94V-0 rated glass-filled thermoplastic material offering enhanced durability and resistance to environmental stress.
Operating temperature range of -55°C to 125°C ensures performance stability within industrial and electronic environments. The component is manufactured in China and complies with IDC and DIN-41651 standards.
This connector is ideal for use in industrial electronics, equipment manufacturing, and wiring harness assemblies where secure low current signal connections are required. Its robust construction and precise engineering make it suitable for commercial, industrial, and laboratory applications.
Supports 20 contacts arranged in 2 rows for versatile connectivity. Rated for 1 ampere current and 250 volts voltage. Features a shrouded female connector with a right angle orientation. Utilizes AMP-LATCH 622 series design for compatibility with 26-28 AWG ribbon cables.
Constructed with beryllium copper contacts plated gold over nickel for durability. Housing made of thermoplastic rated UL 94V-0 for high temperature resistance. Operates reliably between -55°C to 125°C temperature range.
Employs IDC termination type with single slot, flat tuning fork style contacts spaced at 2.54mm pitch. Connector designed for cable mounting applications with military and center polarization features. Explore a wide range of industrial electronic connectors and components at EnvMart for your assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 1 ampere and a voltage of 250 volts.
It operates reliably within a temperature range of -55°C to 125°C.
It features 20 contacts arranged in 2 rows.
This model employs IDC (Insulation Displacement Connector) termination type.
The contact spacing is 2.54mm pitch.
The contacts are made of beryllium copper plated with gold over nickel, and the housing is constructed from thermoplastic rated UL 94V-0.
It features a right angle orientation for cable mounting applications.
Yes, it is compatible with 26 to 28 AWG PVC insulated flat ribbon cables.
The specific dimensions are not provided, but it is designed for compact cable assemblies with a shrouded female connector.
This connector is manufactured in China.
It complies with IDC and DIN-41651 standards.
It is ideal for use in industrial electronics, equipment manufacturing, and wiring harness assemblies.
