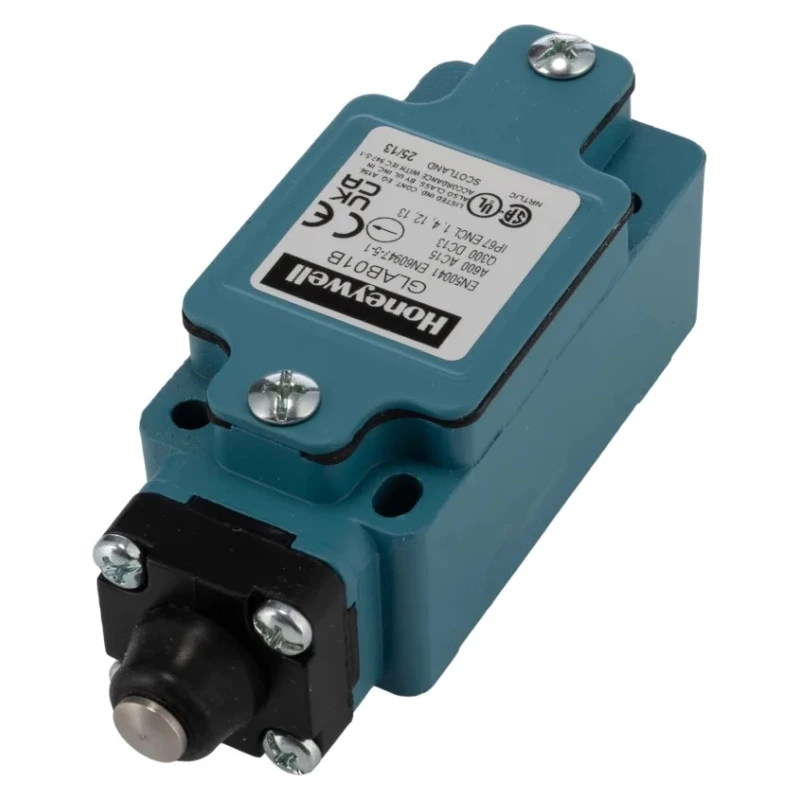

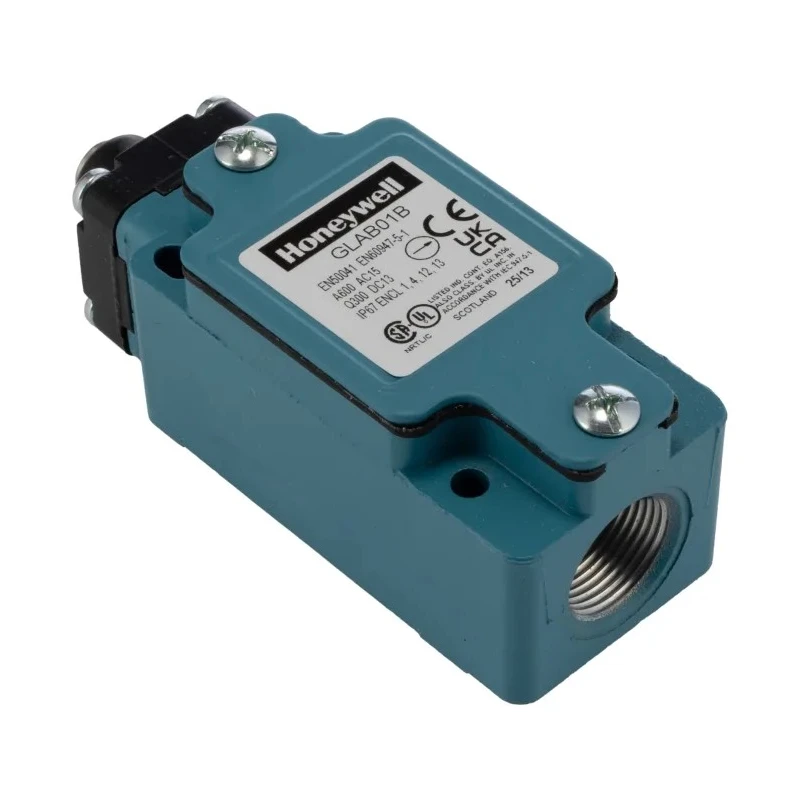

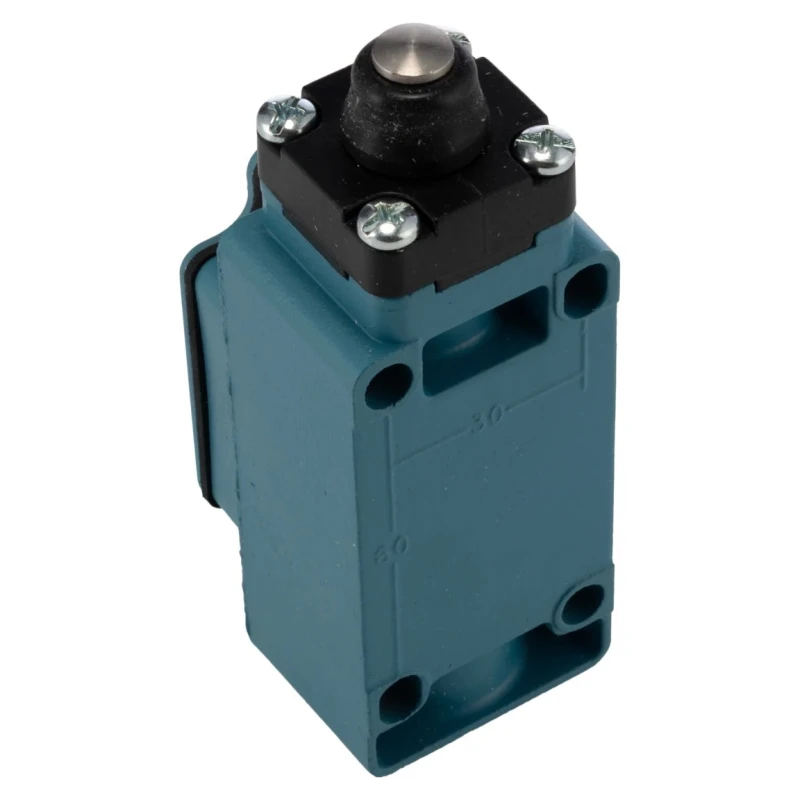

Honeywell Technologies GLA Series Plunger Limit Switch, 1 NO/1 NC (SPDT), IP67, Die Cast Zinc Epoxy Coated Housing, 600V

Honeywell Technologies GLAB01B Plunger Limit Switch is a high-performance industrial control device designed for accurate mechanical position detection. With a plunger actuator and a single-pole double-throw (SPDT) contact configuration, this switch provides both normally open and normally closed outputs, facilitating sophisticated control logic with minimal wiring.

The device features an IP67-rated die cast zinc epoxy-coated housing, delivering superior protection against dust ingress and temporary immersion in water. Its robust construction combines a snap-action contact mechanism with strong impact resistance, ensuring reliable operation in demanding industrial and automation environments.

Operating effectively in temperature ranges from -25°C to 85°C, the switch is suitable for diverse applications including conveyor position sensing, industrial valve limit detection, machinery access safety interlocks, and end-of-travel sensing on material handling equipment. Rated for switching currents up to 6A and voltages up to 600V AC, it supports high electrical loads with a mechanical life expectancy of 15 million cycles, minimizing the need for frequent replacements.

The plunger actuator design requires direct axial engagement, allowing straightforward mounting on panels or brackets where linear motion is present. The screw terminal connectors provide secure and reliable electrical connections. This product conforms to UL, CSA, CE, and CCC standards and is manufactured in the United Kingdom, ensuring high safety and quality benchmarks.

Equipped with plunger actuator for linear mechanical engagement. Snap action contact ensures fast and reliable switching. Single-pole double-throw contact simplifies wiring schemes. Robust die cast zinc epoxy coated IP67 housing protects in harsh environments.

Rated for 600V AC, 6A switching current for heavy-duty applications. Operates reliably from -25°C to 85°C temperature range. Mechanical life rated at 15,000,000 cycles for durability. Screw terminal type for secure connections.

Ideal for conveyor, valve, safety interlock, and material handling limits. Certified to UL, CSA, CE, and CCC standards. Explore more Honeywell Technologies products and advanced Limit Switch solutions on EnvMart to optimize your industrial automation systems.
