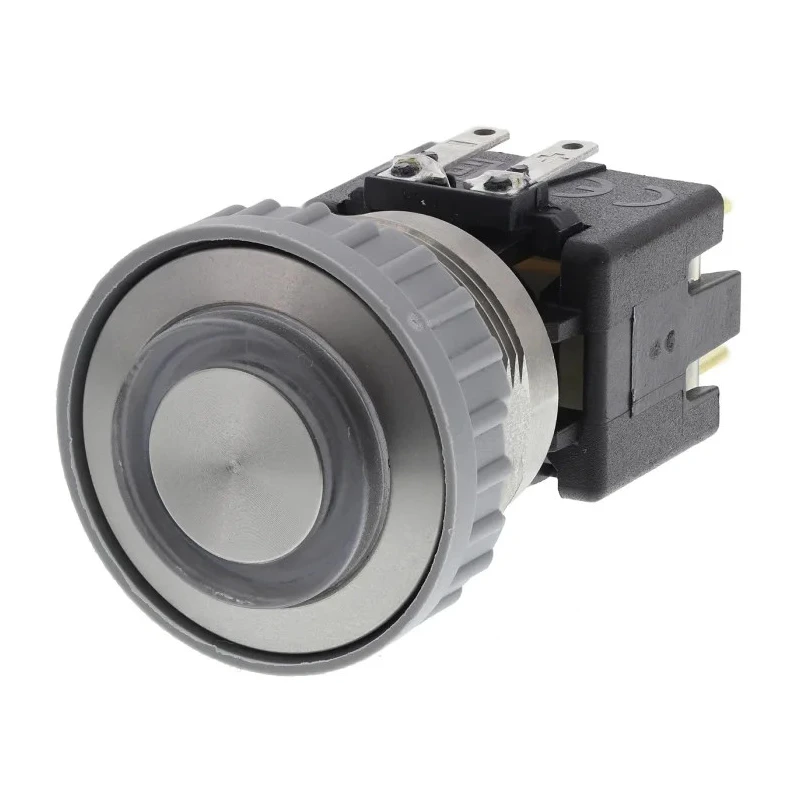

Schurter MSM LA 22 Series Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Green 1241.6834.1122000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP00, IP64 |
| Mount Type | Panel |
| Series | MSM LA 22 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |

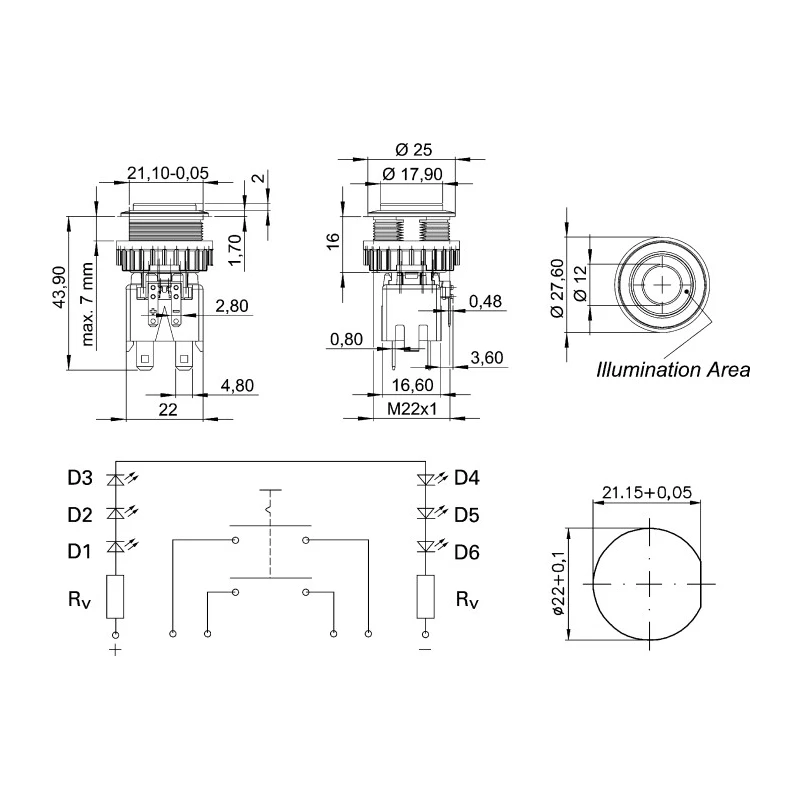

| Panel Cutout Size | 22 mm |
| Terminal type | Tab |
| Standards/Approvals | CSA, IEC, RoHS, UL |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 125V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
| Contact AC Voltage | 250V ac |
| Legend | Laser Marking |
Key Features
- Robust push button switch designed for harsh environments with IK07 shock resistance.
- 22 mm panel cutout diameter compatible with standard installations.
- Double pole double throw (DPDT) contact configuration supporting 12 A current.
- Illuminated with green LED requiring a suitable series resistor for operation.
- Sealed stainless steel housing rated IP64 and IP00 for protection against dust and water ingress.
- Long lifespan with up to 150,000 mechanical operations ensuring durability.
- Suitable for AC voltage up to 250 V and DC voltage up to 125 V.

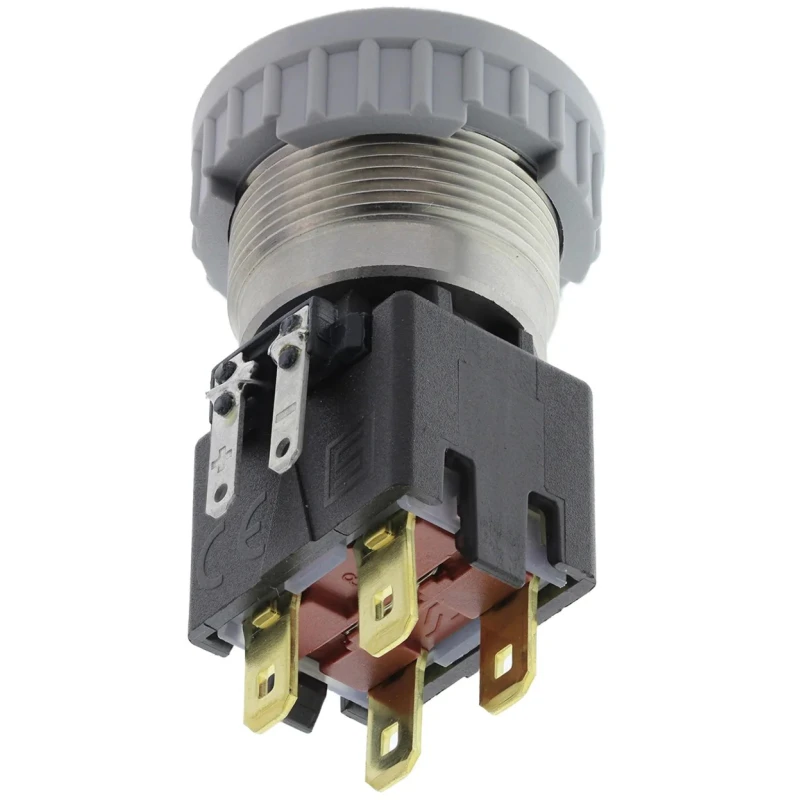

- Quick connect tab terminals for easy and reliable wiring connections.
Product Description
Schurter 1241.6834.1122000 Illuminated Push Button Switch is a robust, latching push button designed for industrial and commercial panel mounting applications. Featuring a 22 mm panel cutout size and a DPDT contact configuration, this push button switch ensures reliable switching with a current rating of 12 A. It incorporates a green LED for optical status indication, facilitating clear feedback of switching operations.
The MSM LA 22 Series switch is constructed with an IP64-rated stainless steel housing to provide excellent protection against dust and moisture ingress, making it suitable for use in harsh environments. It complies with relevant standards including CSA, IEC, RoHS, and UL, assuring quality and safety compliance.
The actuator is styled as a button with a natural color, designed for ergonomic operation with a force of 10 N and a travel distance of 4.5 mm. The switch’s robust construction offers IK07 shock resistance according to DIN EN 50102, enhancing durability under mechanical stress.
This switch can operate across a temperature range of -25°C to 85°C and supports contact voltages of 125 V DC and 250 V AC, marking it versatile for a variety of electrical control setups. The quick connect tab terminals simplify installation and maintenance procedures.
With a mechanical life expectancy of up to 150,000 operations, the MSM LA 22 Series is suited for industrial automation, control panels, machinery, electrical equipment, and HVAC systems.
Robust design with IP64 stainless steel housing and IK07 shock resistance. Latching operation with DPDT contact configuration for flexible circuit control. Green LED illumination for operational status indication. Suitable for panel mount with 22 mm cutout size.
High durability with up to 150,000 mechanical operations. Quick connect terminals for easy wiring. Operating temperature range -25°C to 85°C. Current rating of 12 A at 125 V DC and 250 V AC. Laser marked legend for clear operator guidance.
Complies with CSA, IEC, RoHS, and UL standards.
This product is ideal for use in industrial automation, electrical control panels, manufacturing machinery, and various commercial electrical systems requiring reliable and visible switch operation. EnvMart offers this high-quality Schurter Push Button Switch as part of its comprehensive Electro-Mechanical components portfolio, ensuring availability and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12 A, suitable for both AC and DC applications.
It requires a panel cutout size of 22 mm for proper installation.
The switch operates within a temperature range of -25°C to 85°C.
It features a double pole double throw (DPDT) contact configuration.
The housing is rated IP64, providing protection against dust and water ingress.
This model has a mechanical life expectancy of up to 150,000 operations.
It uses quick connect tab terminals for easy and reliable wiring connections.
It complies with CSA, IEC, RoHS, and UL standards, ensuring quality and safety.
The actuator is styled as a button and is designed for ergonomic operation.
The switch features green LED illumination for operational status indication.
It supports a maximum AC voltage of 250 V and a maximum DC voltage of 125 V.
It is suitable for industrial automation, control panels, machinery, and HVAC systems.
