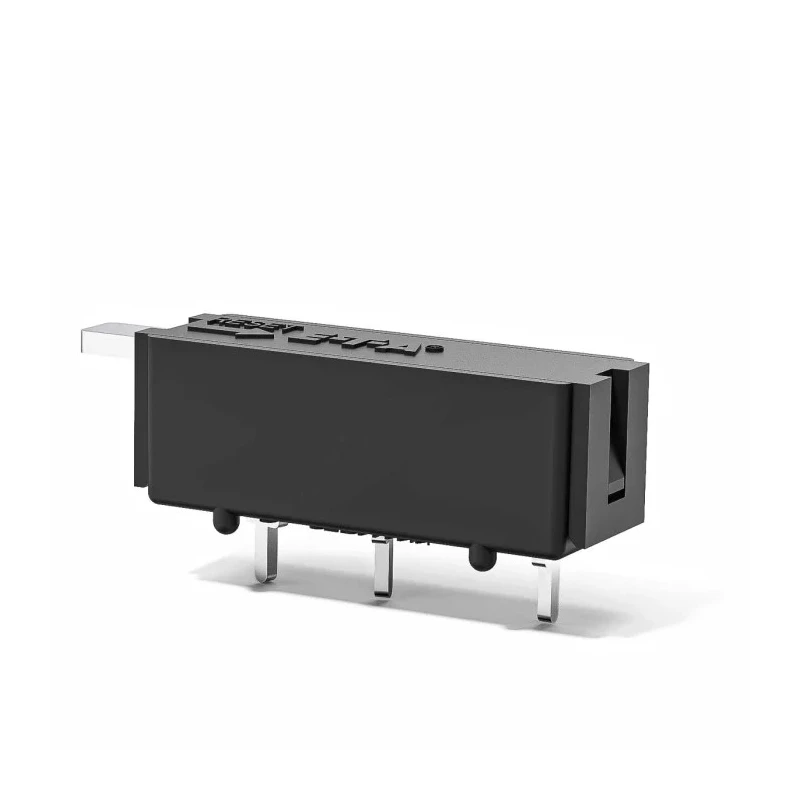

ETA 1410-L Thermal Circuit Breaker, 1-Pole Base Mount, 3.15A Current Rating, 250V AC, 48V DC 1410-L210-L2F1-S02-3.15A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	India
Brand	ETA
Height	15mm
Model	1410-L210-L2F1-S02-3.15A
Width	9mm
Mount Type	Base
Current Rating	3.15A
Series	1410-L
Terminal type	Solder Pin
Breaking Capacity	25A
Number of Poles	1
Standards/Approvals	CE, RoHS
Rated AC Voltage	250V ac
Rated DC Voltage	48V dc
Tripping Characteristics	Type R
Tripping Mechanism	Thermal
Reset Actuator Type	Button
Break Time	Medium

Key Features

Contains ultra-miniature fast-action thermal tripping mechanism for precise protection.
Constructed for PCB mounting with solder pin terminals for secure installation.
Features a white pushbutton for manual reset enhancing PCB safety.
Designed to operate at 250V AC and 48V DC rated voltages.
Breaking capacity of 25A with medium break time for stable performance.
Compact dimensions with 9mm width and 15mm height for space-saving integration.
Complies with CE and RoHS standards ensuring quality and environmental safety.
Typical lifetime of 300 operations at twice nominal current rating ensures durability.

Product Description

ETA 1410-L210-L2F1-S02-3.15A Thermal Circuit Breaker is a high-precision, ultra-miniature thermal breaker designed for industrial and electronic applications requiring reliable circuit protection.

This circuit breaker is part of the 1410-L series featuring a thermal tripping mechanism that activates quickly with a typical response time under one second at twice the nominal current, providing excellent safeguarding for sensitive electronic circuitry.

The device features a single pole design with a base mount type suitable for PCB mounting using solder pin terminals, facilitating compact and secure integration on circuit boards.

With a current rating of 3.15A and rated voltages of 250V AC and 48V DC, it offers robust protection with a breaking capacity of 25A and a medium break time, balancing response speed and mechanical endurance.

Additional features include a white manual reset pushbutton enhancing operational safety and ease of use, along with compliance to CE and RoHS standards, confirming environmental and safety certifications.

Its compact form factor, with a width of 9mm and height of 15mm, makes it highly suitable for professional hi-fi, communications equipment, control, and instrumentation applications.

The breaker is IEC classified R/TO and carries UL, CSA, and VDE (excluding 8A rating) approvals, ensuring quality and international compliance. Ultra-miniature PCB mounting design with solder pin terminals. High speed thermal tripping mechanism with fast action under 1 second at double current.

Manual reset button enhances operational safety on PCBs. Rated for 250V AC and 48V DC applications with 25A breaking capacity. 7200 cycle typical lifetime endurance at double nominal current. Dimensions of 9mm width and 15mm height optimize space efficiency.

Certified with CE and RoHS environmental standards. Approvals include UL, CSA, and VDE for quality assurance. Designed for industrial, electronic, and professional instrumentation uses. Explore more circuit protection solutions and related components in the Electronics & Electricals category on EnvMart.
