Microchip PICkit Chip Programmer Development Kit for DM164120-3 DV164122
Specifications
| Country of Origin | China |
|---|---|
| Brand | Microchip |
| Model | DV164122 |
| Memory type | EEPROM |
| Sub Type | Development Kit |
| Interface Type | Serial-SPI |
| Kit Contents | USB Standard a to Mini-B Cable, Board |
| For Use With | DM164120-3 |
| Programmer Name | PICkit |
Key Features
- Supports multiple protocols including I²C Master/Slave, SPI master, USART asynchronous/synchronous, LIN, and MICROWIRE.
- Includes an easy-to-use Windows software with script library and custom DLL support.
- Comes with a 28-pin demo board featuring a PIC16F886 MCU, LED indicators, potentiometer, and multiple test points.
- USB Standard A to Mini-B cable included for connectivity.
- Communication data is logged in a readable transaction window for troubleshooting and analysis.
- Ideal for prototyping and development with comprehensive scripting and hardware control capabilities.
Product Description

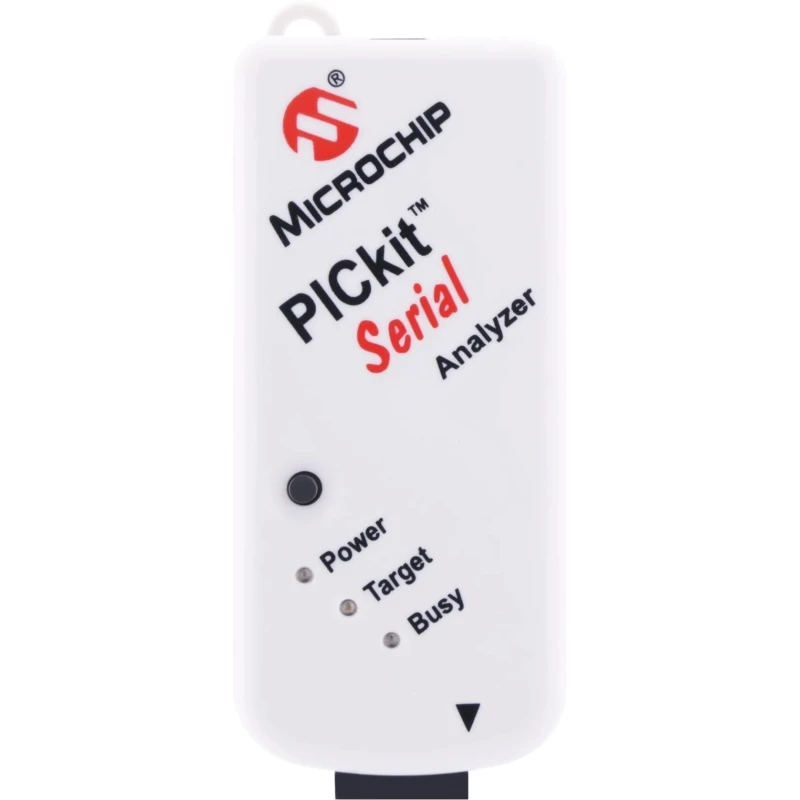

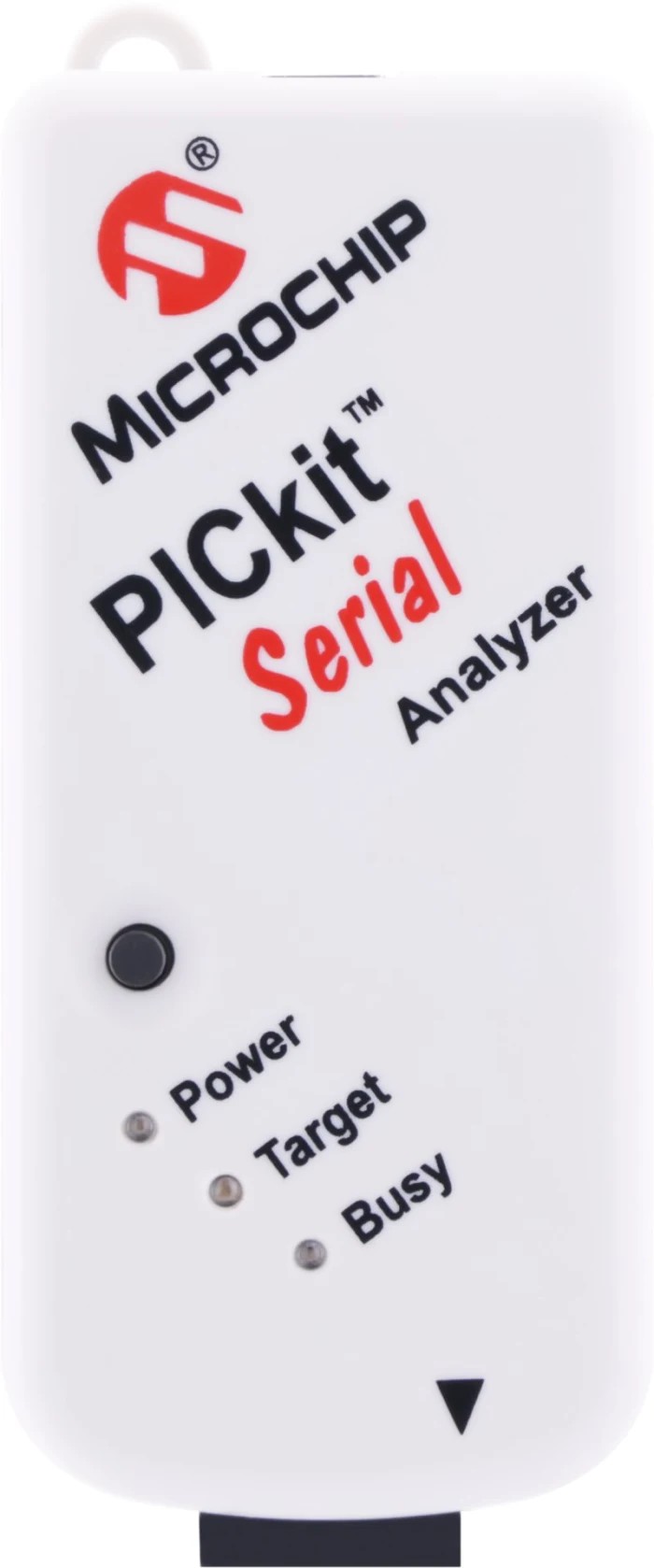

Microchip DV164122 PICkit Chip Programmer Development Kit for DM164120-3 offers a reliable and low-cost serial analyzer tool designed to facilitate communication between a PC and external serial devices. It supports a wide range of serial communication protocols including I²C Master/Slave, SPI master, USART asynchronous and synchronous modes, LIN, and MICROWIRE protocols, making it suitable for various industrial, laboratory, and prototyping applications.

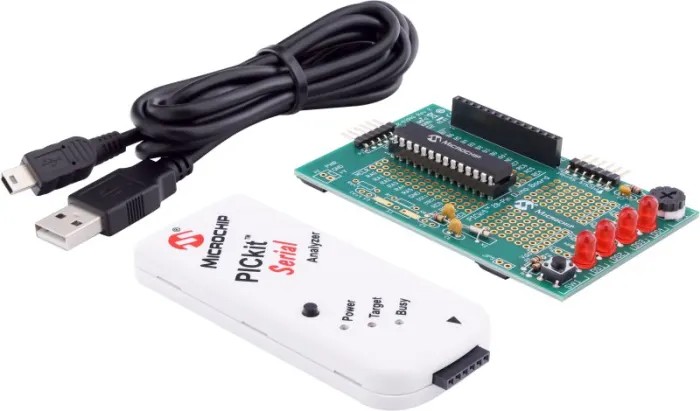

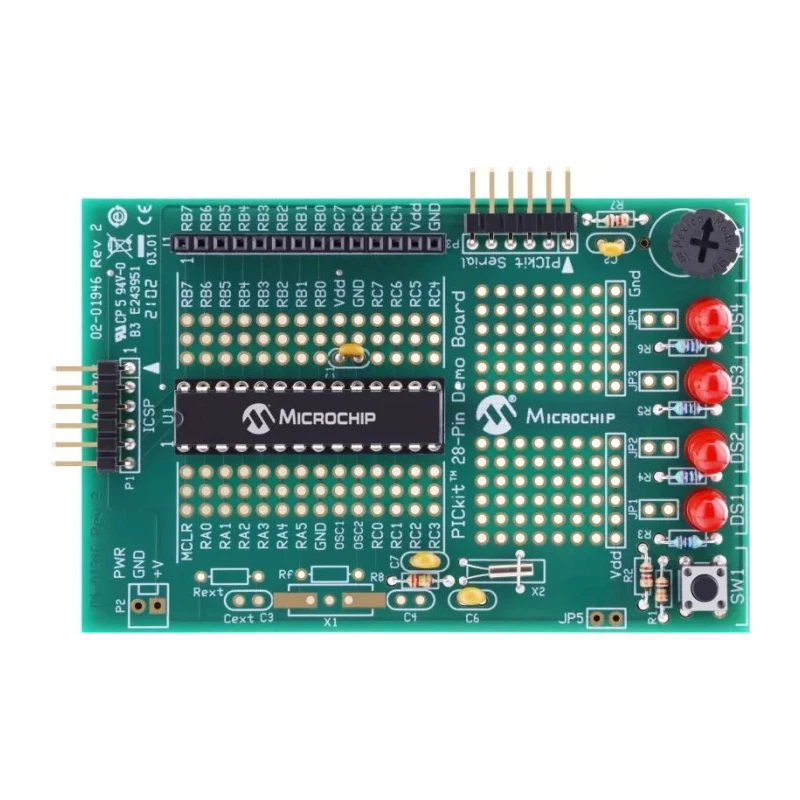

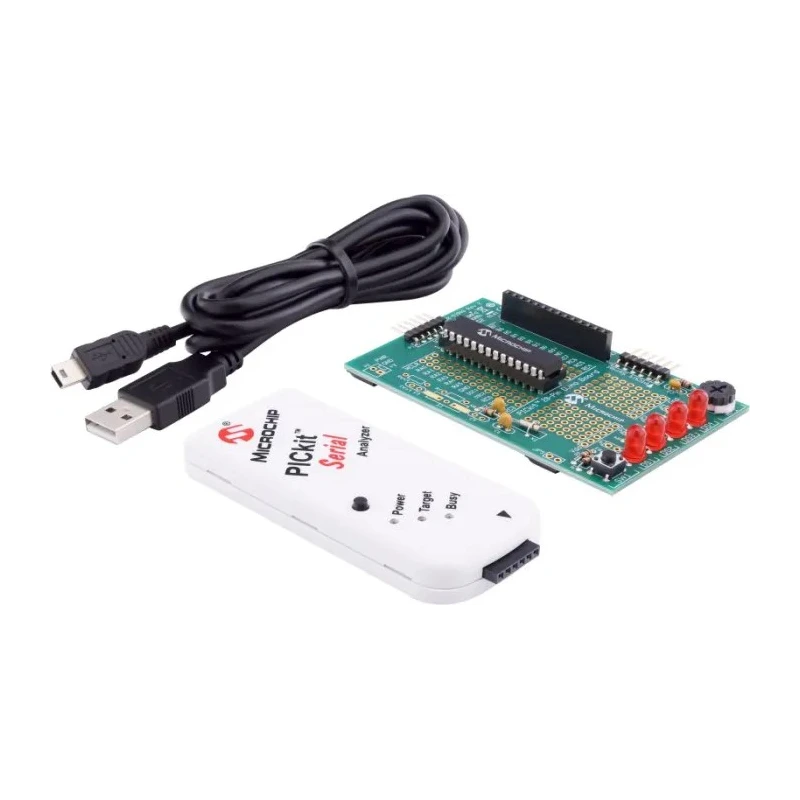

The kit includes a USB Standard A to Mini-B cable, a PICkit module, and a 28-pin demo board with a PIC16F886 microcontroller. The demo board features 4 LEDs to indicate operational states, a small potentiometer for analog input testing, multiple test points for easy MCU I/O pin access, and a prototyping area designed for flexible hardware experimentation. This board is programmed with the PICkit allowing seamless integration and testing within development setups.
With user-friendly Windows software, the PICkit enables script storage and hardware configuration, supporting the creation and execution of custom scripts stored in an internal library. Scripts can be triggered via software interface or push buttons on the hardware for flexible control. All communication events and data are displayed in a detailed, readable transaction window facilitating easy debugging and analysis.
Supporting EEPROM memory type and Serial-SPI interface, the kit is ideal for electronic component development, semiconductor debugging, and memory programming. It is manufactured in China and comes in a new condition, ensuring quality and reliability for developers and engineers.
Rich protocol support covering I²C, SPI, USART, LIN, and MICROWIRE protocols. Easy-to-use Windows software with a DLL for custom software development. 28-pin demo board featuring PIC16F886 MCU with LEDs and potentiometer for prototyping.
Includes USB cable for direct PC connection and power supply. Readable communication log through transaction window improves troubleshooting efficiency.
This Microchip PICkit Chip Programmer Development Kit is highly suitable for use in electronics, semiconductor manufacturing, R&D laboratories, educational settings, and embedded system prototyping environments. Browse EnvMart for more expert development kits and chip programming tools to enhance your design and testing capabilities.
Explore more products in our Chip Programmers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports multiple protocols including I²C Master/Slave, SPI master, USART asynchronous/synchronous, LIN, and MICROWIRE.
The kit is compatible with EEPROM memory types.
The kit includes a USB Standard A to Mini-B cable and a 28-pin demo board featuring a PIC16F886 microcontroller, LED indicators, a potentiometer, and multiple test points.
The demo board is designed for prototyping and features LEDs for operational state indication, a potentiometer for analog input testing, and multiple test points for easy access to MCU I/O pins.
The easy-to-use Windows software allows for script storage and hardware configuration, enabling the creation and execution of custom scripts stored in an internal library.
The transaction window displays all communication events and data in a readable format, facilitating easy debugging and analysis.
Yes, it is highly suitable for use in educational settings, as well as in electronics, semiconductor manufacturing, R&D laboratories, and embedded system prototyping environments.
This model uses a Serial-SPI interface type for communication.
The development kit is manufactured in China.
The model number of the PICkit Chip Programmer is DV164122.
Yes, it is suitable for semiconductor debugging and memory programming.
The demo board features a PIC16F886 microcontroller.
