ITW Switches 59 Series Miniature Momentary Push Button Switch, Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67 59-114

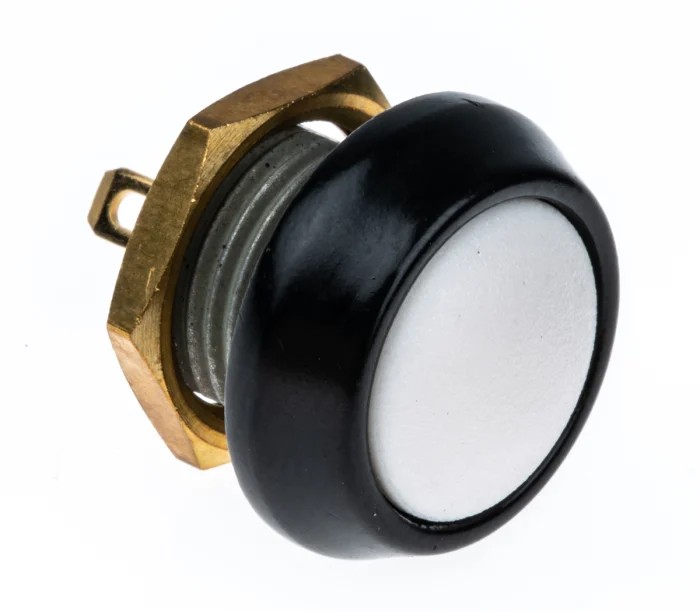

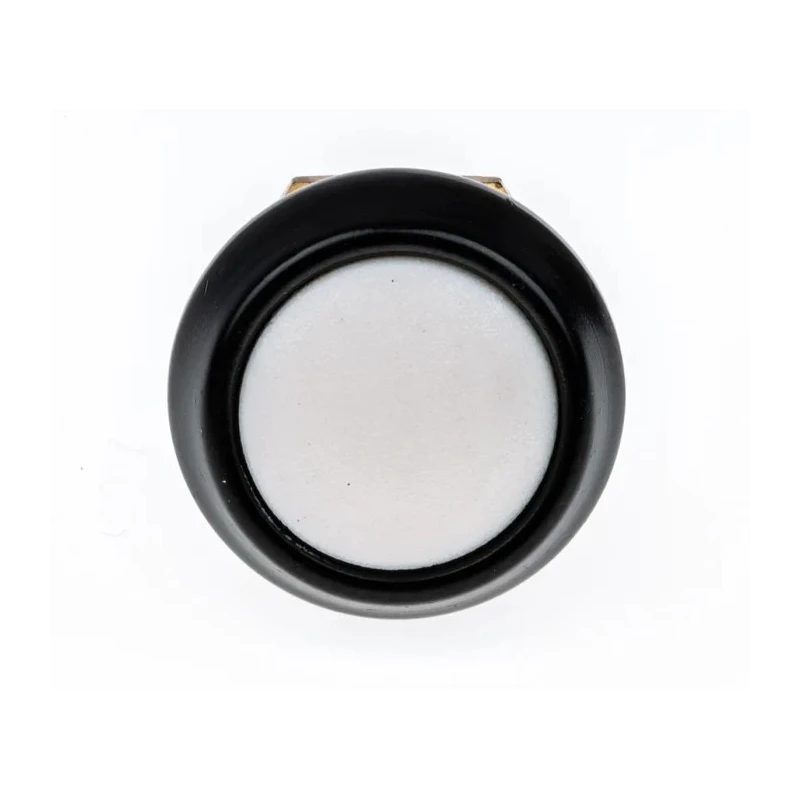

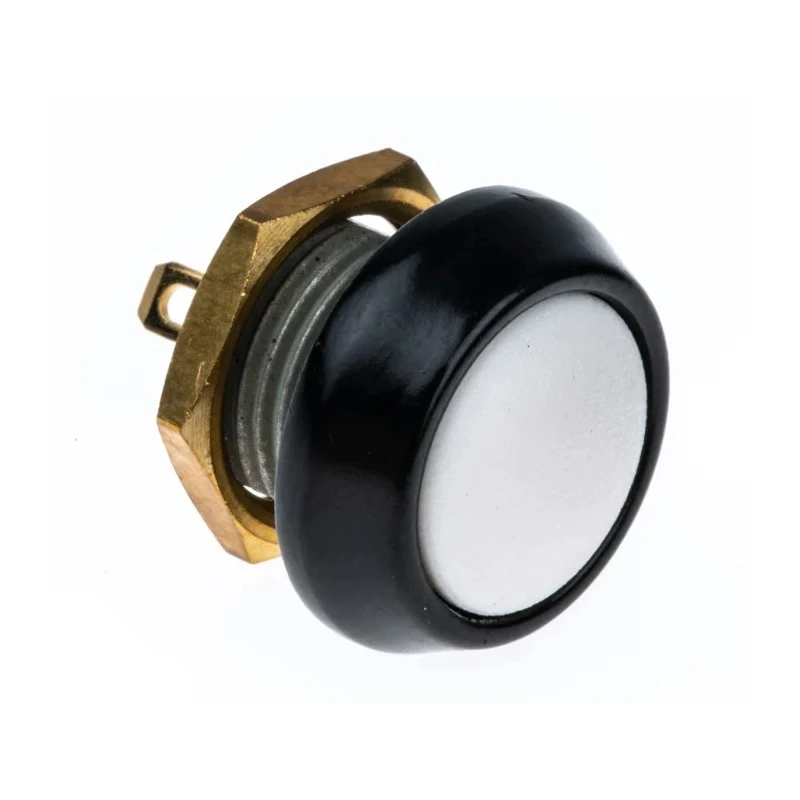

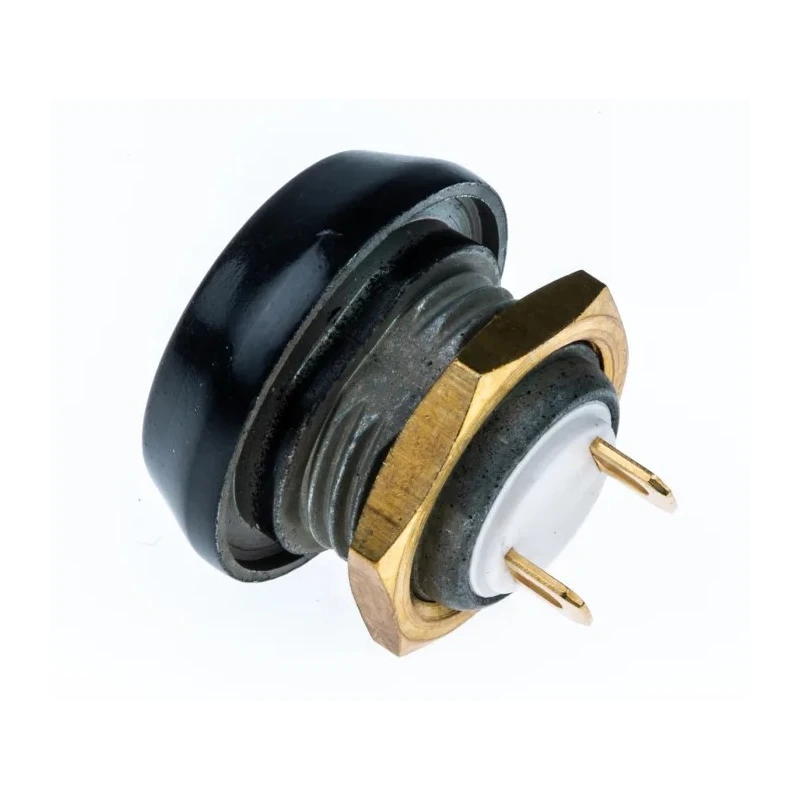

ITW Switches 59-114 is a miniature push button switch with a momentary operation mode, panel mount design, and a 13.6 mm cutout. It features a white square actuator with a clear LED option, suitable for demanding industrial, commercial, and military applications.

This switch operates at a contact rating of 125 V AC or DC and a contact current of 400 mA, ensuring dependable switching performance. The momentary on-off switch configuration means electrical contact is made only while the button is pressed, which instantly returns to the off position when released.

With an IP67 ingress protection rating, the 59-114 series switch is fully dust tight and can withstand temporary immersion in water, making it ideal for harsh or environmentally challenging conditions. Operating temperature ranges from -55°C to 125°C supports use in extreme climates and environments.

The switch's solder terminal configuration and gold contacts provide reliable and corrosion-resistant electrical connections. Constructed with robust materials, including options for non-sparking zinc alloy or polybutylene terephthalate (PBT) bodies, the switch guarantees durability and longevity.

These 59 Series miniature pushbutton switches from ITW Switches are widely used in communications equipment, data entry systems, military hardware, instrumentation, and mass transport control panels. Their rugged, sealed design suits environments requiring high environmental specifications and impact resistance.

The switch has a square white actuator with a clear LED option for visual indication. It is non-illuminated with solder terminal connections for easy integration. The device meets CSA and UL certifications ensuring quality and safety compliance.

Panel sealed to IP67 standard, guaranteeing robust protection against dust and water. Gold contacts provide non-sparking operation and high reliability. Designed for use in demanding industrial, military, and instrumentation applications.

Suitable for operation at voltages up to 125 V and currents up to 400 mA. Operating temperature range supports extreme environmental conditions.

This ITW Switches product is a reliable, high-performance momentary Push Button Switch ideal for panel mounting and use across multiple industries including electrical, automation, transportation, and instrumentation sectors. Explore more high-quality switches and components by browsing the Electronics & Electricals category at EnvMart.
