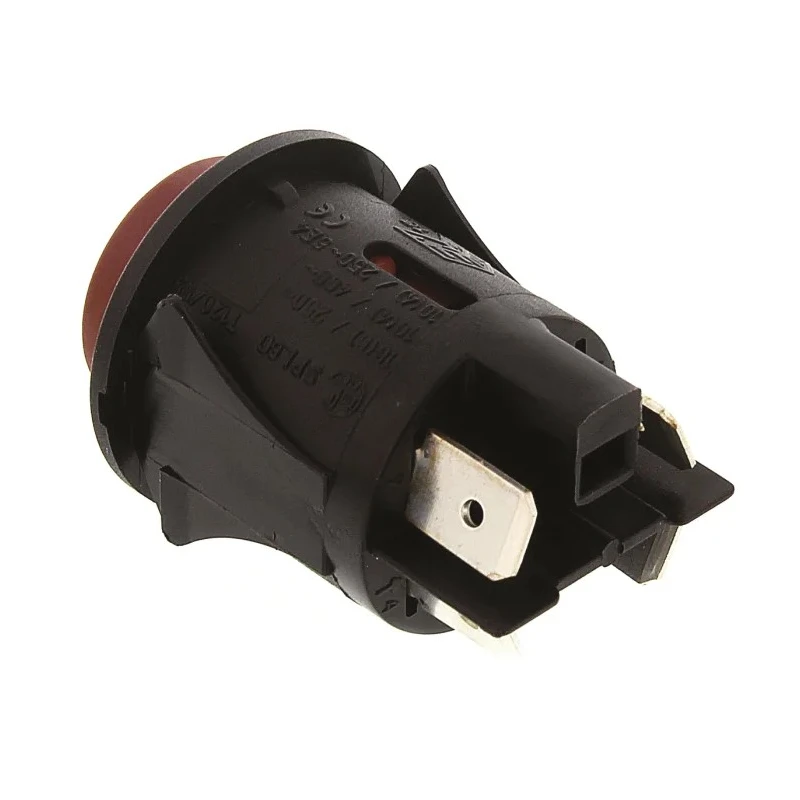

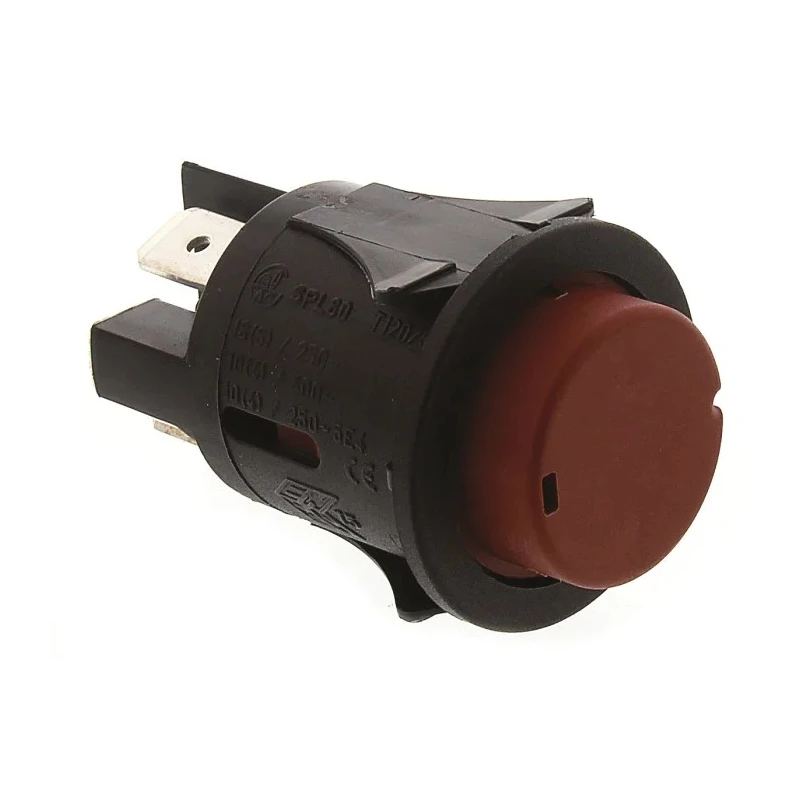

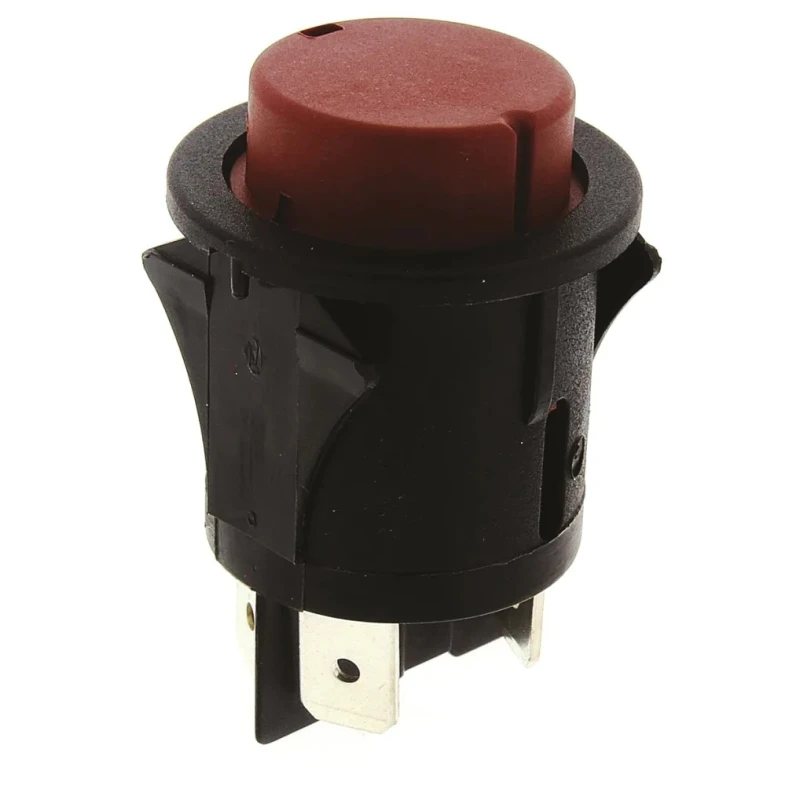

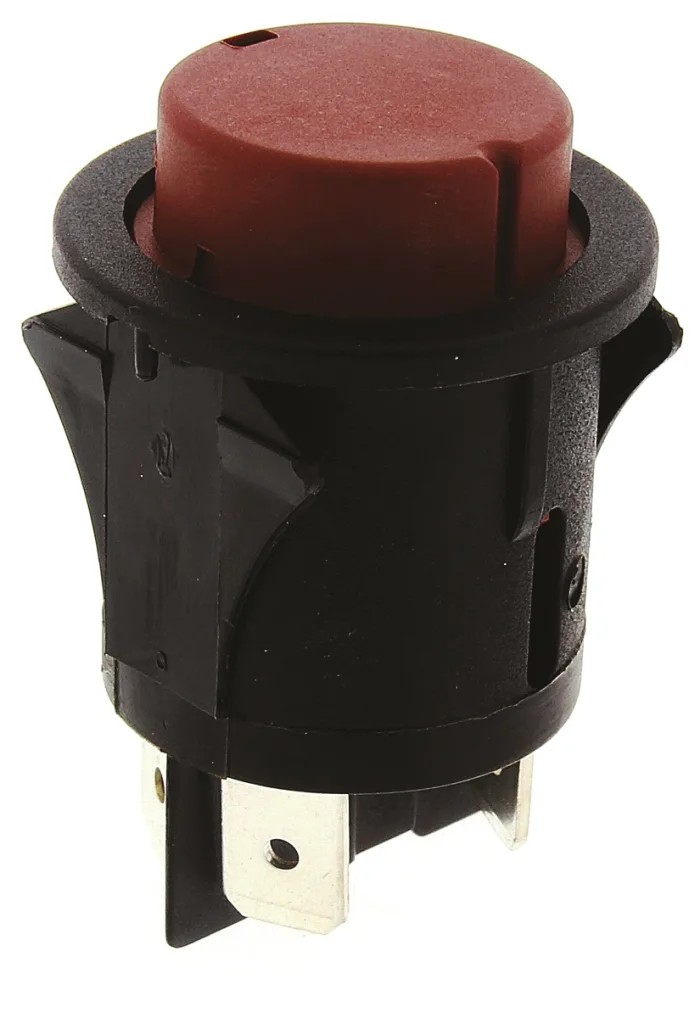

RS PRO Push Button Switch Momentary DPST Panel Mount Red LED IP67 250 V ac 319-354

RS PRO 319-354 Push Button Switch is a momentary DPST type designed for panel mounting with a 25 mm panel cutout. It features a raised actuator button with a red LED for illuminated indication. This switch is rated at 250 V ac and supports a contact current of 16A, making it suitable for industrial and automation applications requiring reliable momentary switching.

The switch body is constructed from self-extinguishing thermoplastic material rated UL94V-2 for enhanced safety. The silver contacts ensure excellent conductivity and durability over a mechanical life exceeding 105 operations. It has an ingress protection rating of IP67, providing strong resistance against dust and water, ideal for harsh operating environments.

Designed to operate in temperatures up to 120°C, this RS PRO switch meets UL and CSA standards, reflecting its compliance with international quality and safety requirements. The terminal type is tab-style for secure connections in panel wiring assemblies.

Typical applications include industrial machinery control panels, electrical enclosures, automation systems, HVAC controls, and other commercial or manufacturing sectors where robust momentary switching is essential.

This push button switch features a momentary On-Off switch configuration with DPST contact arrangement. It operates with a panel cutout size of 25 mm and is panel mounted for secure installation. The actuator is a raised button style with a red LED illumination for clear status indication.

Rated for 16 A contact current at 250V ac with a mechanical life exceeding 105 operations. It includes a robust IP67 ingress protection rating for dust and water resistance. The switch is built with silver contacts and a self-extinguishing UL94V-2 thermoplastic body.

Maximum operating temperature is 120°C, suitable for demanding industrial environments. Terminal connections are of the tab type for reliable electrical contact. Made in Italy with UL and CSA approvals ensuring high standards and safety.
