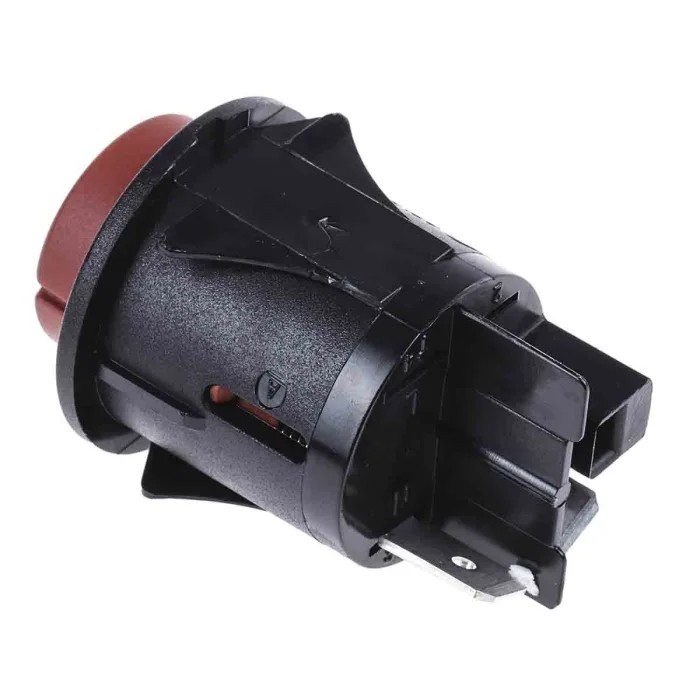

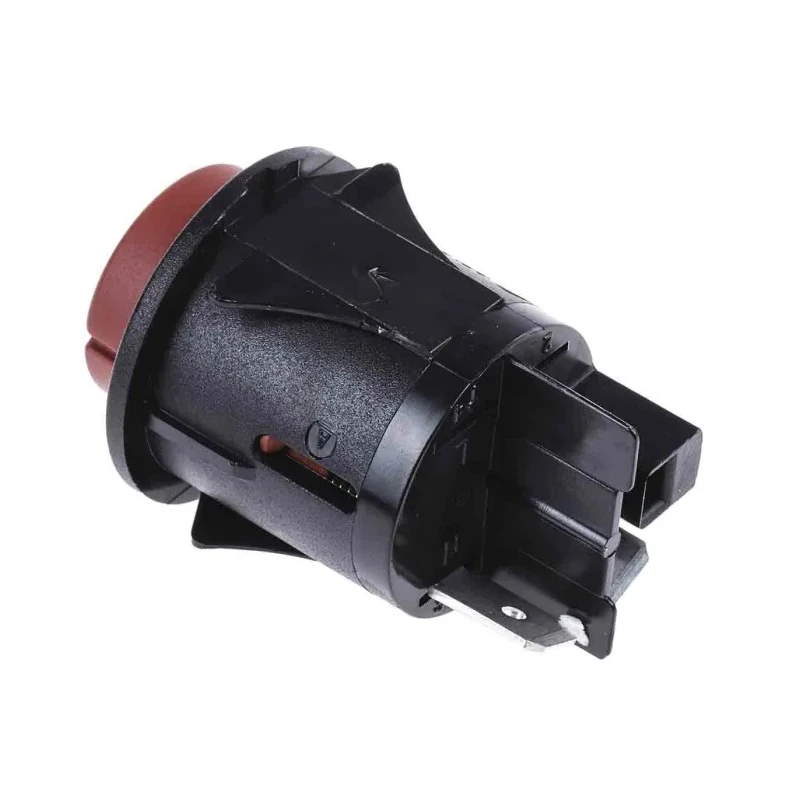

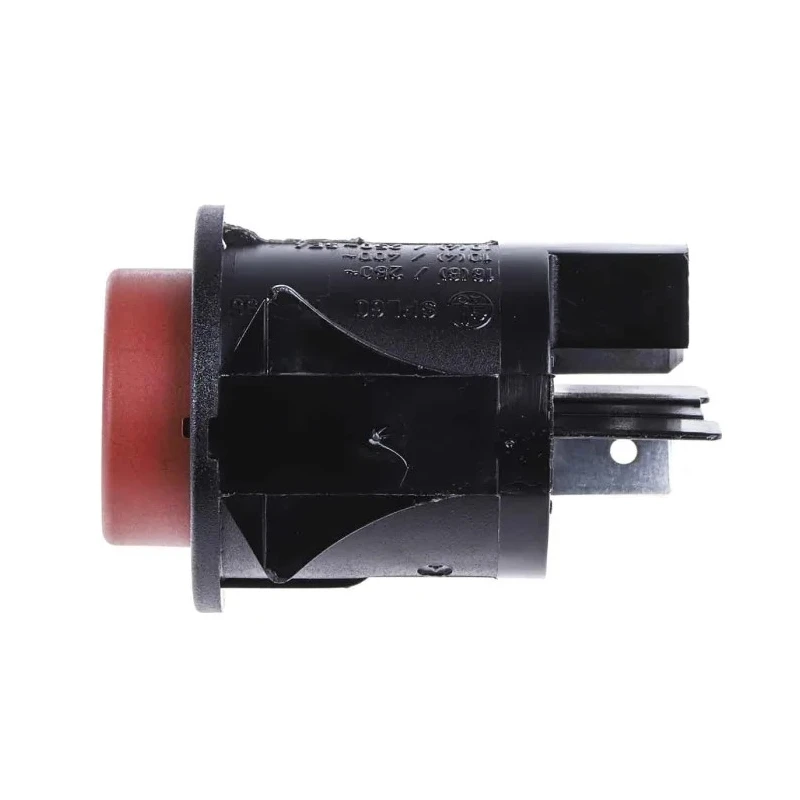

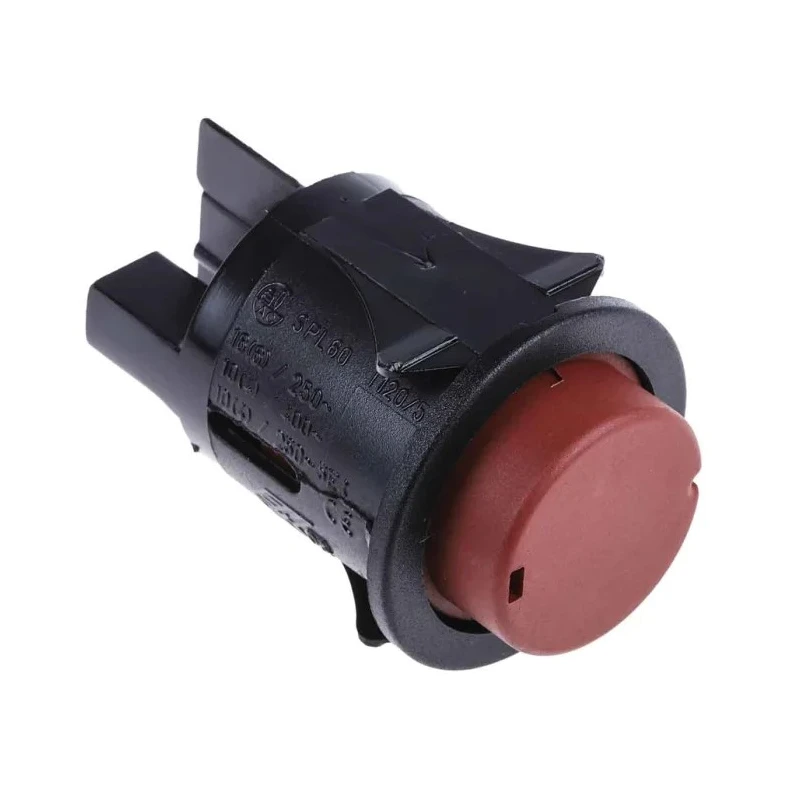

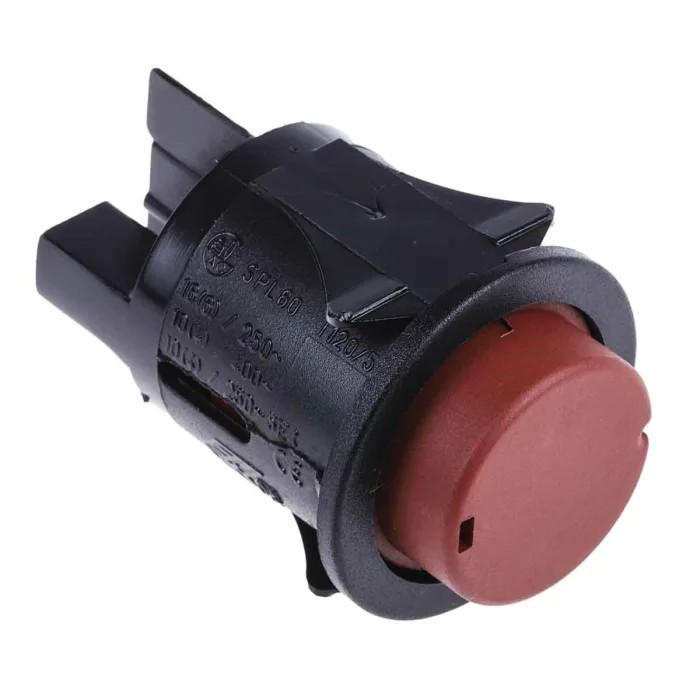

RS PRO Push Button Switch Momentary Panel 25 mm Cutout SPST Red LED IP67 250 V AC 319-332
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Dimensions | Depth behind panel 34mm, max. panel thickness 2.5, panel cut-out 25mm |
| Model | 319-332 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Panel Cutout Size | 25 mm |
| Terminal type | Solder, Tab |
| Standards/Approvals | CSA, UL |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Actuator Style | Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator color is red with a button style actuator.
- The switch operates momentarily with an On-Off switch configuration.
- It features silver contacts with a contact rating of 16A at 250V AC.
- The switch is rated for a maximum operating temperature of 120°C and complies with CSA and UL standards.
- Panel cutout size for installation is 25 mm with a maximum panel thickness of 2.5 mm.
- This switch has a mechanical life of over 105 operations ensuring durability.
- The product has an IP67 ingress protection rating, suitable for dust and water resistance.
- Terminal type includes solder and tab connections for secure wiring.
Product Description
RS PRO 319-332 push button switch is a high-quality, momentary on-off switch designed for panel mounting with a 25 mm cutout. Featuring a red actuator button and red LED color, it provides clear visual feedback. This switch is rated for 250 V AC with a robust contact current rating of 16A, ensuring reliability in demanding electrical applications.
Constructed with silver contacts and a self-extinguishing thermoplastic casing compliant with UL94V-2, it offers excellent safety and durability. The mechanical life exceeds 105 operations, offering long-term performance. It is rated for operation up to 120°C, suitable for various industrial environments.
With an IP67 ingress protection rating, it is dust-tight and protected against water immersion, making it suitable for harsh and outdoor industrial environments. The panel mounting design allows for a maximum panel thickness of 2.5 mm and requires a 25 mm cutout for installation, with a depth behind panel measuring 34 mm.
The switch is CSA and UL approved, meeting important international safety and quality standards. Terminals support solder and tab types, facilitating easy integration into control panels and electrical assemblies.
Red actuator color with button style actuator for intuitive operation. Momentary switch operation with On-Off configuration. 16A contact current rating at 250V AC for reliable switching. IP67 rating offers excellent environmental protection.
Mechanical life of more than 105 operations ensures durability. Compact panel cutout size of 25 mm for easy mounting. CSA and UL approved for safety and compliance. Self-extinguishing thermoplastic housing enhances safety.
This push button switch is ideal for industrial, automation, and electrical panel applications where robust, reliable switching is essential. It suits environments requiring high ingress protection and compliance with international standards. Explore more Push Button Switches in the RS PRO series on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a contact current rating of 16A at 250V AC, ensuring reliable performance in electrical applications.
This model has an IP67 ingress protection rating, making it dust-tight and resistant to water immersion, suitable for harsh environments.
The maximum operating temperature for this switch is 120°C, allowing it to function effectively in various industrial environments.
The panel cutout size required for installation is 25 mm, with a maximum panel thickness of 2.5 mm.
It features solder and tab terminal types, facilitating secure wiring and easy integration into control panels.
The mechanical life of this switch exceeds 105 operations, ensuring long-term performance in its applications.
Yes, its IP67 rating indicates that it is suitable for outdoor use, providing protection against dust and water.
The actuator color is red and it features a button style actuator for intuitive operation.
This model operates as a momentary switch with an On-Off configuration, allowing for temporary activation.
The switch is CSA and UL approved, meeting important international safety and quality standards.
This switch is part of the RS PRO series, which offers a variety of reliable electrical components.
