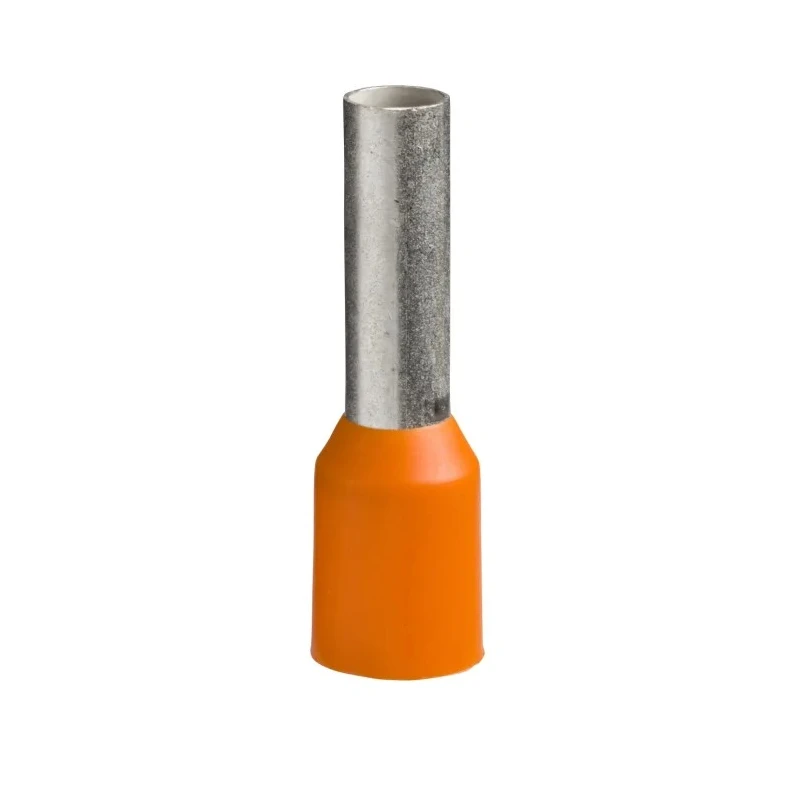

Schneider Electric Linergy DZ5 Insulated Crimp Bootlace Ferrule 9.8 mm Pin Length 3.3 mm Pin Diameter 12 AWG DZ5CE042
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schneider Electric |
| Colour | Orange |
| Model | DZ5CE042 |
| Insulation | Insulated |
| Overall Length | 17mm |
| Series | Linergy DZ5 |
| Insulation Material | Plastic |
| Pin Diameter | 3.3mm |
| Terminal Material | Copper |
| Standards/Approvals | NF C 63-023 |
| Maximum Wire Size mm² | 4mm² |
| Maximum Wire Size AWG | 12AWG |
| Pin Length | 9.8mm |
Key Features
- Insulated design reduces risk of electrical shorting and enhances handling safety.
- Copper tube ensures consistent conductivity and crimp integrity across installations.
- Compatible with 12 AWG wire size, suitable for industrial and control wiring.
- Pin length of 9.8 mm and pin diameter of 3.3 mm offers deep, uniform crimps.
- Halogen-free plastic construction minimizes toxic emissions in fire situations.
- Rated for operating temperatures from −20°C to 105°C to suit varied environments.
- Suitable for terminating control panel stranded conductors and field wiring.
- Offers reliable use in automation cabinets, machinery signal, and power connections.
Product Description
Schneider Electric DZ5CE042 insulated crimp bootlace ferrule is designed for terminating stranded conductors, providing insulated end protection and secure electrical connections in industrial and control installations. This product supports 12 AWG wire sizes and operates reliably across a broad temperature range.
The ferrule features a copper tube ensuring consistent electrical conductivity and crimp integrity, while the insulated plastic bezel reduces shorting risks and improves handling safety. Its pin length is 9.8 mm with a pin diameter of 3.3 mm, allowing deep, uniform crimps for stranded wire.
Constructed with halogen-free plastic, this ferrule minimizes toxic emissions during fire, supporting environmental safety. It complies with NF C 63-023 standards and is suitable for use in automation cabinets, control panels, and electrical distribution via screw terminal blocks.
Applications include terminating control panel stranded conductors, field wiring in automation systems, signal and power connections in machinery, and harness assembly in manufacturing settings. The ferrule's robust design withstands temperatures ranging from −20°C to 105°C, fitting typical industrial and electrical environments.
Packaged in sets of 10x100 pieces in string bags, larger bulk options like 1,000-piece packs and pallets are also available, making it ideal for volume procurement. The ferrule’s copper tube conforms to ISO 1337, ensuring durable conductivity and corrosion resistance.
Insulated plastic bezel reduces shorting risk and enhances handling. Copper tube guarantees consistent electrical conductivity. Controlled tube diameter supports uniform conductor insertion. Deep crimps facilitated by 9.8 mm pin length and 3.3 mm diameter.
Halogen-free construction minimizes toxic emissions on fire. Certified to NF C 63-023 standard ensuring industry compliance. Rated for −20°C to 105°C to handle varied environments. Suitable for industrial control panel and automation wiring.
Available in multiple packing formats for procurement flexibility.
Explore Schneider Electric products and similarly high-quality electrical components in the Electronics Components category at EnvMart for reliable industrial and commercial applications.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin length of this ferrule is 9.8 mm, and the pin diameter is 3.3 mm.
It is compatible with 12 AWG wire sizes, with a maximum wire size of 4 mm².
The ferrule is made from copper for the terminal, and it features an insulated plastic bezel for safety.
It is rated for operating temperatures from −20°C to 105°C, making it suitable for varied environments.
This model complies with NF C 63-023 standards, ensuring it meets industry requirements.
The insulated design reduces the risk of electrical shorting and enhances handling safety during installation.
The overall length of this ferrule is 17 mm.
It is suitable for terminating control panel stranded conductors, field wiring in automation systems, and power connections in machinery.
This ferrule is packaged in sets of 10x100 pieces in string bags, with larger bulk options like 1,000-piece packs also available.
The ferrule is orange in color.
The insulation material is plastic, which is halogen-free to minimize toxic emissions in fire situations.
This ferrule belongs to the Linergy DZ5 series.
