Lapp Circular Connector 16 Contacts Panel Mount 19.5 mm Plug Male IP65 EPIC Series 50101200+00008701

Free Delivery in India | Lowest Global Shipping Charges

Lapp Circular Connector 16 Contacts Panel Mount 19.5 mm Plug Male IP65 EPIC Series 50101200+00008701

Name: Lapp Circular Connector 16 Contacts Panel Mount 19.5 mm Plug Male IP65 EPIC Series 50101200+00008701
Brand: Lapp
SKU: 116318
Price: 51.35 USD
Availability: InStock



Category Industrial Circular Connector Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	1.5kV
Brand	Lapp
Orientation	Straight
Current	7.5A
Model	50101200+00008701
IP Rating	IP65
Mount Type	Panel Mount
Housing Material	Copper
Contact Material	Copper
Series	EPIC
Termination Type	Crimp
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Pole Format	16
Contact Plating	Silver
Number of Contacts	16
Contact Gender	Male
Shell Size	25 mm
Mating Type	Screw Lock
Connector Size	19.5 mm
Plug/Socket	Plug

Key Features

Compact circular connector designed for industrial and signal applications.
Features 16 contacts with male plugs and panel mount configuration.
Rated for 7.5A current and 1.5 kV voltage for robust electrical performance.
Houses copper contact materials with silver plating for corrosion resistance.
Designed to operate between -40°C and +125°C temperature range.
Screw lock mating type ensures secure connection in demanding environments.
IP65 sealing protects against dust ingress and low-pressure water jets.
Shell size is 25 mm with a straight orientation for easy integration.

Product Description

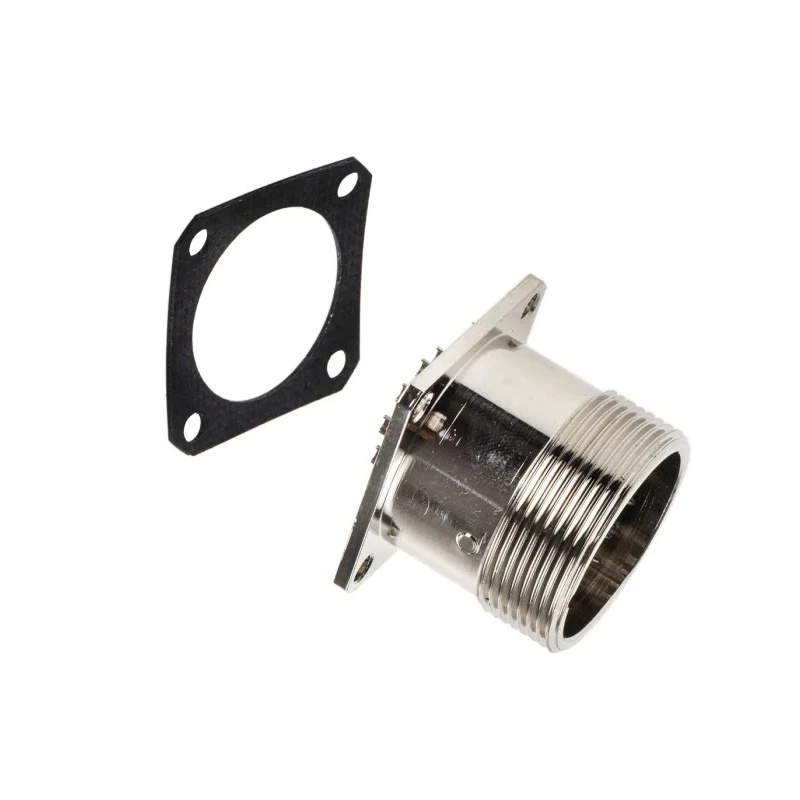

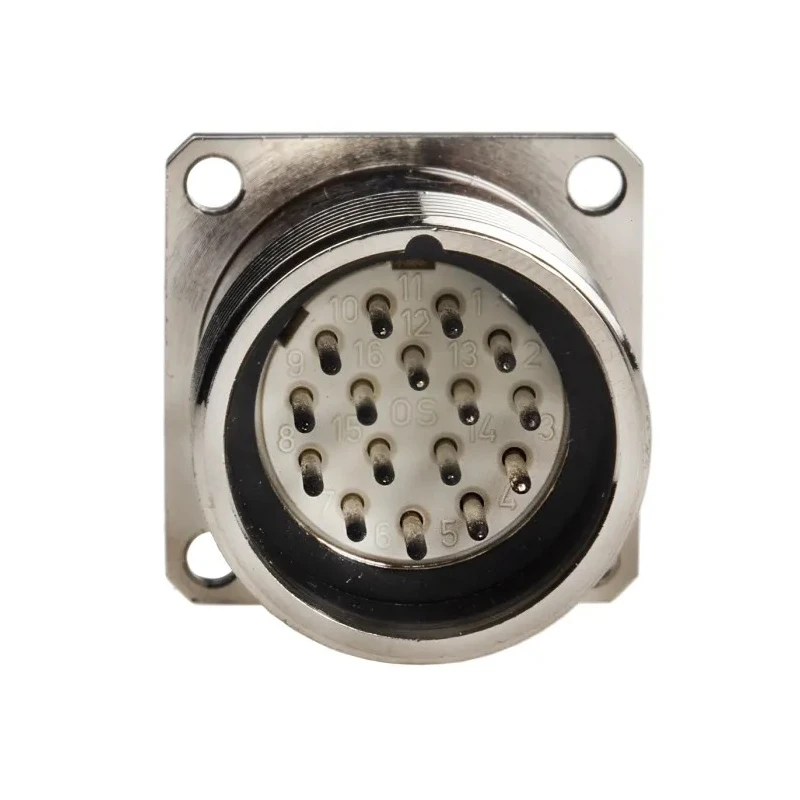

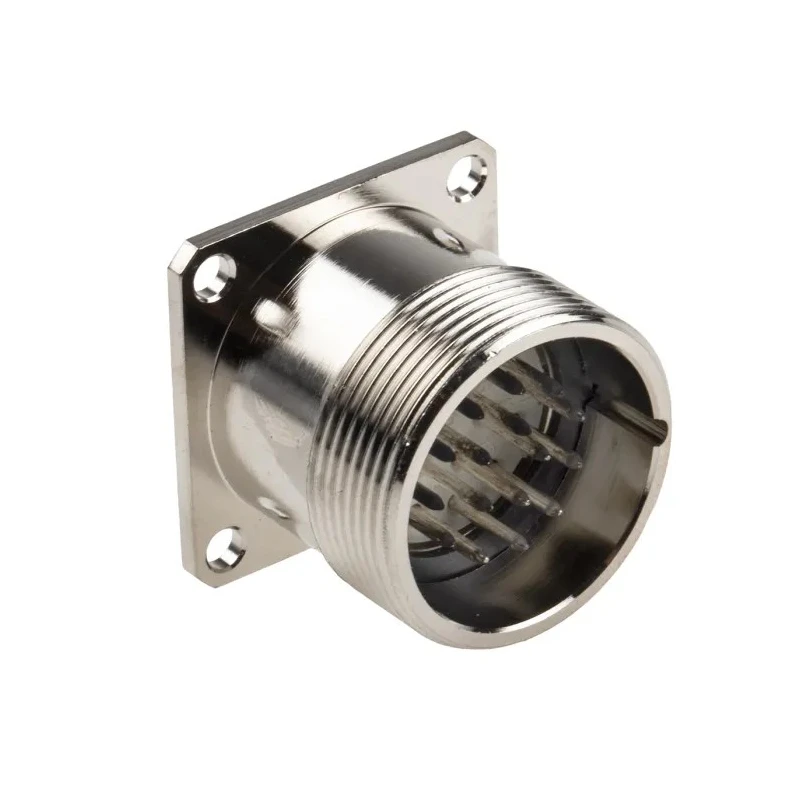

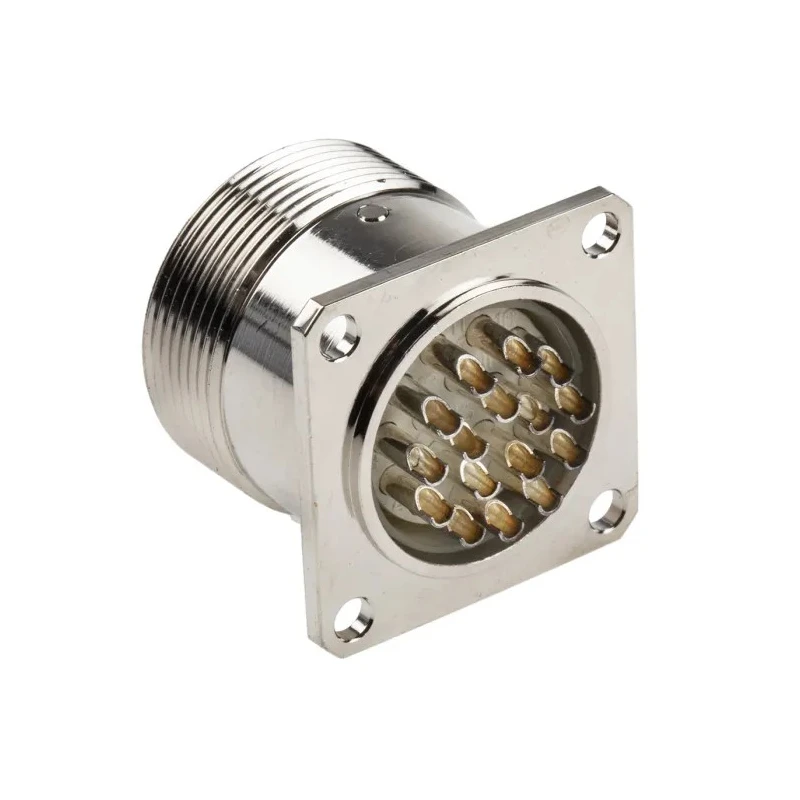

Lapp 50101200+00008701 circular connector is a 16-contact, panel mount plug designed in the EPIC Series for demanding industrial applications. It measures 19.5 mm in connector size and supports a current rating of 7.5 amperes and 1.5 kV voltage, making it suitable for robust electrical signal transmission. The connector features male contacts with silver-plated copper material to ensure corrosion resistance and reliable performance.

The connector's IP65 rating means it is dust tight and protected against water jets, ensuring reliable operation in harsh environments. It is engineered with a screw locking mating system providing a secure and vibration-resistant connection. The shell size is 25 mm, with a straight orientation and flange mount suitable for front and back panel installations.

The operating temperature range spans from -40°C to +125°C, which supports a wide variety of industrial conditions. Its copper housing material offers mechanical protection, ensuring durability and resistance to physical impacts. These connectors are widely used in machine and equipment manufacturing, measurement and control technology, and automation to handle multiple-core cable signal applications efficiently.

Lapp's EPIC Series connectors are recognized for their compact size and dense contact arrangement, which optimizes space without sacrificing electrical performance. The product includes features such as corrosion resistance, mechanical robustness, and dust caps availability for added protection when connectors are unmated.

Compact size with high contact density for space-saving installations. Screw locking mating system ensures a secure and reliable connection. IP65 rated for dust tightness and water spray resistance. Constructed from copper with nickel plating for corrosion resistance.

Wide temperature operating range from -40°C to +125°C. Panel-mount flange for easy affixing to equipment surfaces. Suitable for industrial signal and power applications. Designed to meet demanding mechanical and environmental requirements.

Contact plating and materials deliver long-term electrical reliability.

This Lapp circular connector is manufactured in Germany and provides a dependable industrial-grade solution suitable for use in industrial, manufacturing, automation, and control system environments. Explore EnvMart’s extensive electronic components and connectors catalog for compatible products and accessories.

Explore more products in our Industrial Circular Connector category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The connector has a maximum voltage rating of 1.5 kV, making it suitable for robust electrical signal transmission.

It supports a current rating of 7.5A, ensuring reliable performance in industrial applications.

This model has an IP65 rating, which means it is dust tight and protected against low-pressure water jets.

The operating temperature range spans from -40°C to +125°C, allowing it to function in a wide variety of industrial conditions.

It features a panel mount configuration, suitable for front and back panel installations.

This connector is designed with 16 contacts, providing ample connectivity for various applications.

The contacts are made from copper and are silver plated to enhance corrosion resistance and ensure reliable performance.

It employs a screw lock mating type, which ensures a secure and vibration-resistant connection in demanding environments.

The shell size is 25 mm, which is designed for easy integration into various equipment.

This connector is manufactured in Germany, ensuring adherence to high manufacturing standards.

It is part of the EPIC Series, recognized for its compact size and dense contact arrangement.

It is widely used in machine and equipment manufacturing, measurement and control technology, and automation for handling multiple-core cable signal applications.
