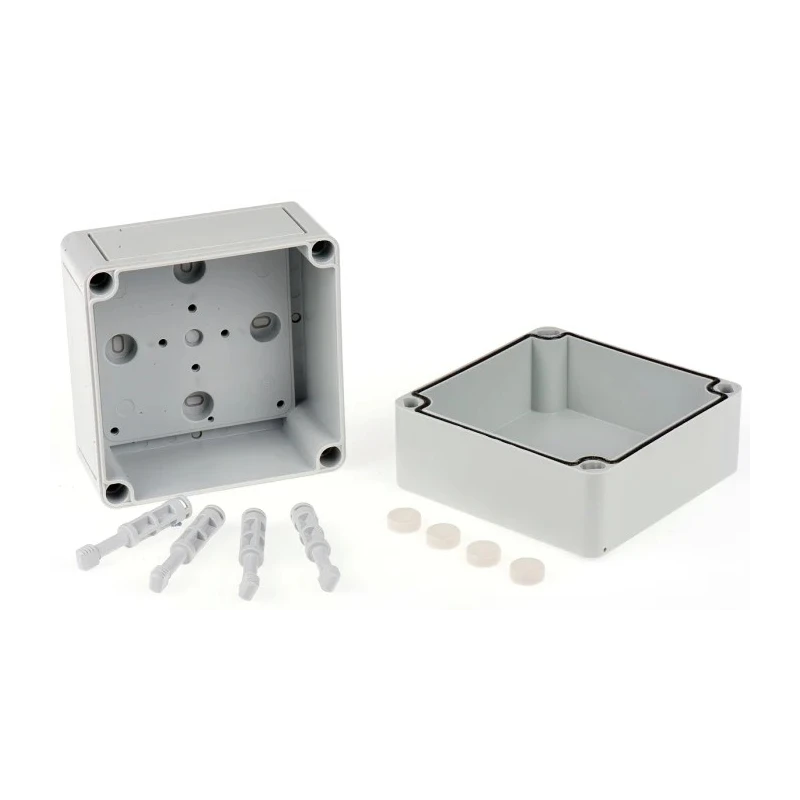

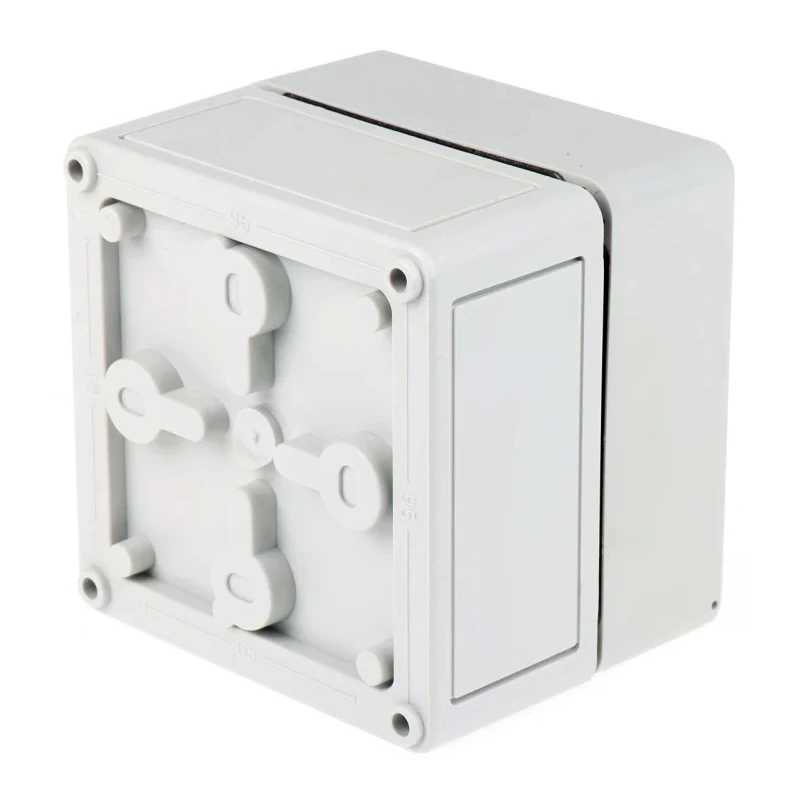

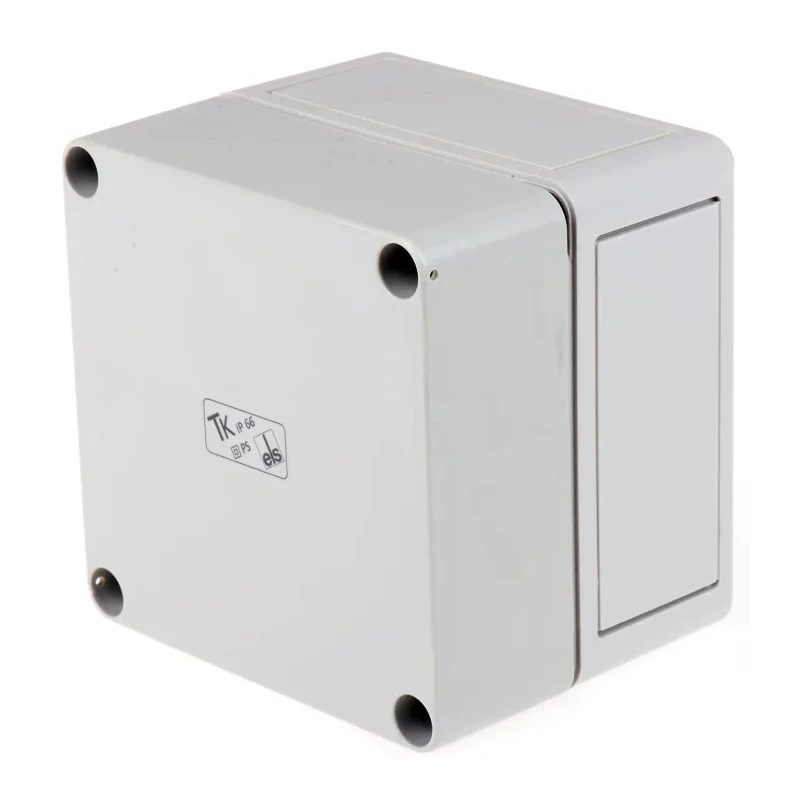

Spelsberg TK PS Series Grey Grey Lid Polystyrene Enclosure IP66 IK07 90 mm x 110 mm x 110 mm 11090401

Spelsberg 11090401 polystyrene enclosure from the TK PS Series is designed for housing a wide variety of electrical, electronic, and pneumatic devices indoors. It features a grey (RAL 7035) polystyrene base and lid without pre-embossing or knockouts, ensuring a sealed and secure enclosure with polyurethane gasket sealing and polyamide glass-reinforced cover screws for enhanced durability.

This enclosure has an external height of 90 mm, width and length both at 110 mm, with an internal height of 77 mm. It is rated IP66 according to EN 60529 standards, providing strong protection against dust ingress and powerful water jets. The IK07 impact resistance rating confirms its ability to withstand moderate mechanical impacts without damage.

The enclosure is halogen free and does not use silicone, heavy metals, or PVC materials, making it safe for use in sensitive environments. Its flammability rating meets VDE 0471 and UL94 standards, withstanding temperatures up to 650 °C in the HB class.

Although suitable for harsh indoor environments, this enclosure is not designed for outdoor use due to the absence of weatherproofing. It is sealable and can be mounted on walls using the through holes below the lid fixing screws or surface mounted using knockout sealing plugs in the base.

Applications for this enclosure include industrial, commercial, and laboratory electrical installations requiring robust protection for instrumentation and control equipment. Its resistance to most acids and alkalis enhances suitability in manufacturing and chemical processing facilities.

Constructed with a grey polystyrene base and cover providing electrical insulation and strength. IP66 ingress protection rating against dust and water jets ensures device safety. IK07 impact resistance for mechanical durability in industrial settings.

Sealable with polyurethane gasket and polyamide 6 reinforced screws for reliable enclosure integrity. Halogen free and silicone free materials enhance environmental safety and reduce toxic fumes. Flammability rated to VDE 0471 and UL94 standards for fire safety compliance.

Operating temperature range of -25 to +40 °C supports a wide range of indoor applications. Ideal for electrical, pneumatic, and electronic device housing in industrial environments. Explore more Electrical Enclosures and related products at EnvMart to find the best solutions for your industrial and commercial needs.
