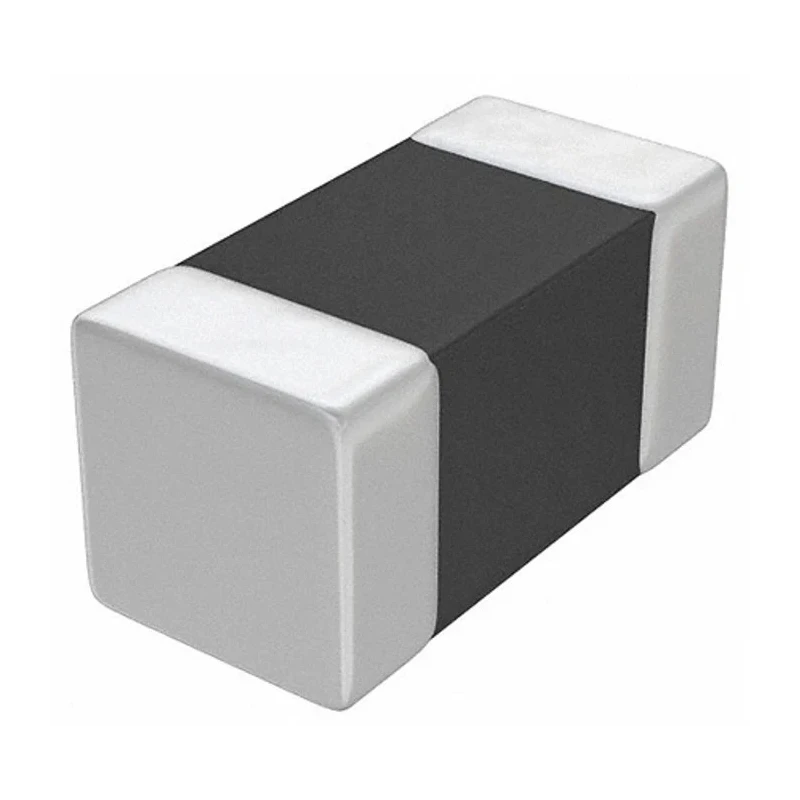

Murata 1005 Unshielded Wirewound Surface Mount Inductor, 0.01µH, Multilayer, ±5%, 300mA, Non-Magnetic Ceramic LQG15HS10NJ02D

Free Delivery in India | Lowest Global Shipping Charges

Murata 1005 Unshielded Wirewound Surface Mount Inductor, 0.01µH, Multilayer, ±5%, 300mA, Non-Magnetic Ceramic LQG15HS10NJ02D

Name: Murata 1005 Unshielded Wirewound Surface Mount Inductor, 0.01µH, Multilayer, ±5%, 300mA, Non-Magnetic Ceramic LQG15HS10NJ02D
Brand: Murata
SKU: 92500
Price: 0.01 USD
Availability: InStock



Category Surface Mount Inductors Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.5mm
Length	1mm
Model	LQG15HS10NJ02D
Depth	0.5mm
Packaging	Paper Tape
Series	LQG
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Non-Magnetic Ceramic
Inductance	0.01μH
Package/Case	1005
Maximum DC Current	300mA
Pin Count	2
Maximum DC Resistance	260mΩ
Inductance Tolerance	±5 %
Termination Style	Solder
Maximum Self Resonant Frequency	3400MHz
Minimum Quality Factor	8
Inductor Construction	Multilayer

Key Features

Compact 1005 (0402) package is suitable for automated SMD assembly.
Delivers 0.01µH inductance with ±5% tolerance for precise circuit design.
Supports maximum DC current up to 300mA for power efficiency.
Non-magnetic ceramic core provides stable performance at high frequencies.
Features a low maximum DC resistance of 260mΩ for minimal signal loss.
Operates reliably between -55°C and 125°C, suitable for demanding environments.
Multilayer construction ensures excellent rated current balance and L value stability.
Packaged on paper tape for integration into high-volume production lines.

Product Description

The Murata LQG15HS10NJ02D is a 1005 (0402) unshielded wirewound surface mount inductor designed for high-frequency and RF applications. With a low inductance value of 0.01µH and multilayer non-magnetic ceramic core construction, this component achieves a balance between rated current, footprint, and inductance tolerance.

This SMD inductor features a compact 1x0.5x0.5 mm package, enabling efficient use of PCB space in densely populated circuits. Its ±5% tolerance ensures greater accuracy in circuit tuning, making it ideal for RF matching, chokes, mobile communication resonance, and WLAN networks.

The unshielded, multilayer design offers a stable Q factor for most general use high-frequency circuits, even if it is lower than comparable wirewound alternatives, while the non-magnetic ceramic core provides low magnetic loss and dependable frequency performance.

Delivers 0.01µH (10nH) inductance in an ultra-compact SMD form factor. Enables up to 300mA maximum DC current handling for flexible circuit integration. Low maximum DC resistance (260mΩ) supports low-loss design requirements.

Reliable operation across a broad -55°C to +125°C temperature range for industrial, automotive (where applicable), and telecom environments. Supplied on paper tape ready for automated assembly and bulk installation. Solderable terminal style for robust and consistent board mounting.

The Murata LQG15HS10NJ02D is an excellent choice for designers seeking space-saving high-frequency inductor solutions, supporting RF matching, chokes, and filtering requirements in wireless, telecom, instrumentation, and consumer electronics products.
