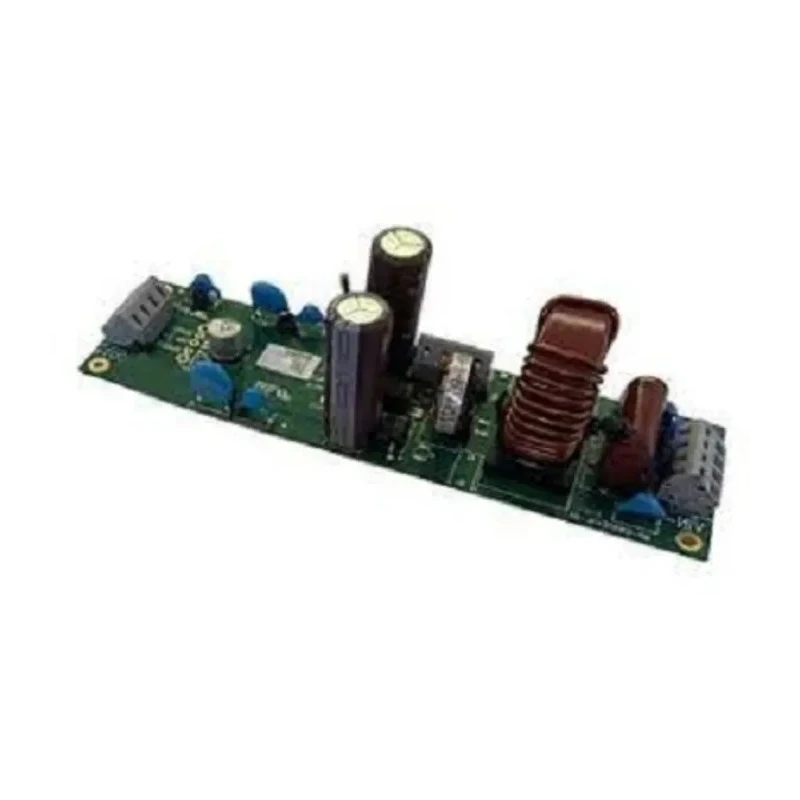

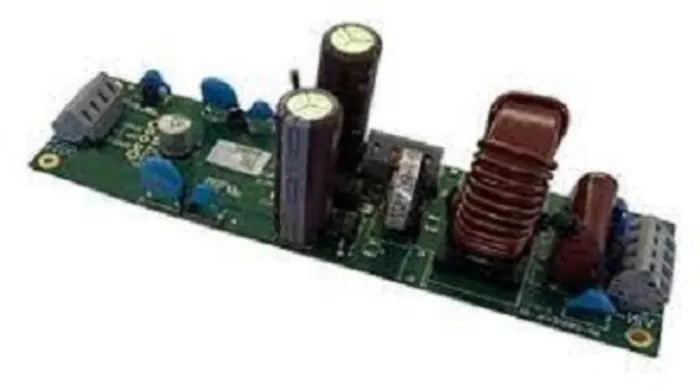

Murata Evaluation Board DC-DC Converter for SMD0805, 150W, 16-160 VDC Input for IRQ-W80 MP-QW80EVAL-01
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata |
| Model | MP-QW80EVAL-01 |
| Output Power | 150 W |
| For Use With | IRQ-W80 |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | SMD0805 |
| Kit Name | MP-QW80EVAL-01 |
Key Features
- Supports wide input range from 16 to 160 VDC complying with EN50155 transient battery voltages.
- Offers high efficiency levels up to 89% with 4242 VDC input-output isolation.
- Provides protection features including overvoltage, overcurrent, and short circuit safeguards.
- Allows adjustable output voltage and current limit for flexible application needs.
- Includes positive or negative logic remote ON/OFF and hold-up function support.
- Operates reliably within -40°C to +100°C baseplate temperature range.
- Designed for use with SMD0805 featured device and IRQ-W80 converter module.
Product Description
Murata MP-QW80EVAL-01 is a dedicated evaluation board designed for the assessment of the IRQ-W80 DC-DC converter module, which delivers an impressive 150W single output power with a wide input voltage range from 16 V to 160 VDC. This board facilitates testing and development with the SMD0805 featured device, supporting high efficiency up to 89% and reinforced input-output isolation voltage of 4242 VDC.
The IRQ-W80 series quarter-brick modules comply with the stringent EN50155 standard input battery voltage transient range, suitable for industrial and transportation power applications. It includes comprehensive protection features such as overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection to ensure robust operation under varied load conditions.
The evaluation board supports adjustable output voltage and current limit settings, enabling precise tuning to application requirements. It also offers positive or negative logic enable/disable remote ON/OFF control and a hold-up function to stabilize output during supply interruptions.
Operating over a broad baseplate temperature range from -40°C to +100°C, this evaluation board is ideal for harsh environments. Its compact design aids seamless integration with development tools focusing on power, motor, and robotics applications. The board is RoHS compliant and manufactured in China.
Supports wide input voltage range from 16 to 160 VDC. Delivers 150W output power at high efficiency up to 89%. Reinforced isolation voltage of 4242 VDC between input and output. Equipped with OVP, OCP, and short circuit protection features.
Adjustable output voltage and current limit for optimized control. Includes positive/negative logic remote ON/OFF and hold-up function. Operates between -40°C to +100°C baseplate temperature.
This evaluation board is an essential tool for industrial electronics development, laboratory testing, and power management applications in automation, embedded systems, and robotics. Explore more power management and DC-DC Converter solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a wide input voltage range from 16 V to 160 VDC.
It includes overvoltage protection (OVP), overcurrent protection (OCP), and short-circuit protection.
The evaluation board has a reinforced isolation voltage of 4242 VDC between input and output.
It operates reliably within a baseplate temperature range of -40°C to +100°C.
Yes, it allows for adjustable output voltage and current limit settings.
It includes positive or negative logic remote ON/OFF control and a hold-up function.
Yes, the board is RoHS compliant.
It is designed for industrial electronics development, laboratory testing, and power management applications in automation, embedded systems, and robotics.
It is designed for use with the SMD0805 featured device.
This evaluation board is manufactured in China.
