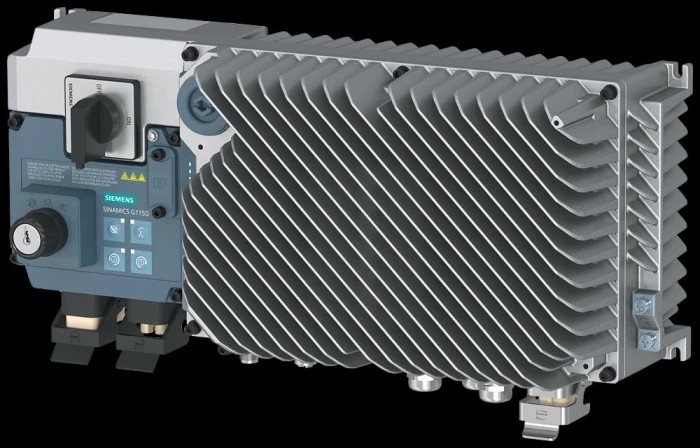

Siemens SINAMICS G115D 3 Phase Inverter Drive 3 kW 480V 15.4 A 6SL3520-0XA23-0AA0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3520-0XA23-0AA0 |
| IP Rating | IP66, IP65 |
| Mount Type | Wall |
| Overall Length | 180mm |
| Series | SINAMICS G115D |
| Overall Width | 425mm |
| Power Rating | 3kW |
| Maximum Operating Temperature | 55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 3 |
| Maximum Output Current | 15.4A |
| Standards/Approvals | C-Tick (RCM), UL, SEMI F47, REACH, KCC, EAC, cUL, CE |
| Maximum Supply Voltage | 480V |
| Overall Depth | 134mm |
| Minimum Supply Voltage | 380V |
| Compatible Motor Type | AC Motor |
Key Features
- This inverter drive supports SIMOGEAR 2KJ8 geared motors with three phase asynchronous AC motors.
- It features an IP65/IP66 degree of protection ensuring robust performance in harsh industrial environments.
- Designed to operate within a temperature range of -30°C to 55°C.
- Output frequency can reach up to 550 Hz for precise motor control.
- Mount type is wall, allowing easy installation and maintenance.
- Compliance with standards including UL, CE, REACH, C-Tick, SEMI F47, KCC, EAC, and cUL.
- Measures 180 mm in length, 425 mm in width, and 134 mm in depth.
- Its efficiency class is IE2, optimized for horizontal conveyor system applications with sophisticated encoderless vector control.
Product Description
Siemens 6SL3520-0XA23-0AA0 is a high-performance SINAMICS G115D series 3 phase inverter drive with a power rating of 3 kW, designed for AC motor applications in automated industrial environments. Operating at a nominal voltage of 480 V and an output current of 15.4 A, this wall-mounted inverter drive is especially suited for horizontal conveyor systems requiring precise speed control and advanced vector control without encoders.
The drive combines a wall-mounted converter with SIMOGEAR geared motors supporting IE2 efficiency class asynchronous motors, delivering energy efficiency and robust mechanical compatibility. Its design includes an RFI suppression filter meeting Category C2 standards, ensuring electromagnetic compatibility in industrial settings.
Constructed with a rugged enclosure offering IP65/IP66 protection, the inverter drive withstands harsh environments, dust, and water ingress, while maintaining operational integrity between -30°C and 55°C. The device supports variable output frequencies up to 550 Hz, allowing flexible motor speed adjustments for diverse manufacturing, material handling, and HVAC applications.
The DIN-compliant mount type and compact dimensions of 180 mm length, 425 mm width, and 134 mm depth facilitate space-efficient installation in control panels and electrical enclosures. Siemens adhering to international approvals and certifications such as UL, CE, cUL, REACH, KCC, and EAC guarantees compliance with global industrial safety and quality standards.
This inverter drive supports SIMOGEAR 2KJ8 geared motors with three phase asynchronous motors. Designed for demanding conveyor system applications requiring encoderless vector control. Equipped with RFI suppression filter for Category C2 EMC compliance.
Robust IP65 and IP66 rated enclosure for industrial environment protection. Operating temperature range from -30°C to 55°C suitable for harsh conditions. Outputs frequencies up to 550 Hz for precise motor speed control. Wall mount type for straightforward installation and maintenance access.
Compact size enables integration into various control architectures. Country of Origin: United Kingdom.
Ideal for use in industrial automation, manufacturing lines, material handling systems, and HVAC motor control applications. Explore more Siemens Inverter Drives and accessories on EnvMart for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 3 kW.
The maximum output current is 15.4 A.
The inverter drive operates with a supply voltage range of 380V to 480V.
It supports a maximum output frequency of 550 Hz.
The dimensions are 180 mm in length, 425 mm in width, and 134 mm in depth.
This model is compatible with three phase asynchronous AC motors and specifically supports SIMOGEAR 2KJ8 geared motors.
The operating temperature range is from -30°C to 55°C.
It features a wall mount type for installation.
The inverter drive has an IP65/IP66 rating, providing protection against dust and water ingress.
It complies with several standards including UL, CE, REACH, cUL, KCC, EAC, C-Tick, and SEMI F47.
It is designed for use in industrial automation, manufacturing lines, material handling systems, and HVAC motor control applications.
It supports encoderless vector control for precise motor speed adjustments.
