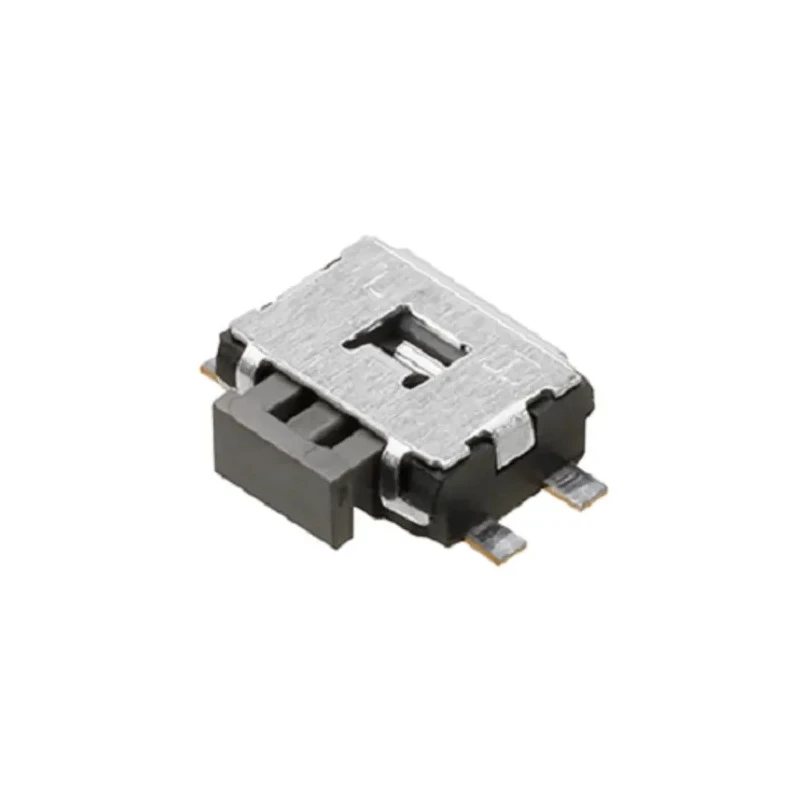

Panasonic Black Tactile Switch Push Plate, 2.6 mm, SPST 50mA 12 V dc Surface EVQPUC02K
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 1.66mm |
| Model | EVQPUC02K |
| Mount Type | Surface |
| Series | EVQP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Switch Operation | Push-On |
| Actuator Colour | Black |
| Actuator Length | 2.6mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 50mA |
Key Features
- Compact tactile switch with black push plate actuator.
- Single Pole Single Throw (SPST) contact configuration.
- Push-on switch operation providing reliable actuation.
- Designed for surface mounting with straight terminals.
- Maximum operating temperature of 70°C ensuring stable performance.
- External dimensions approximately 4.7 mm x 3.5 mm with height of 1.66 mm.
- Non-illuminated actuator style for low power consumption.
- Long mechanical endurance rated for minimum 100,000 cycles.
Product Description
Panasonic EVQPUC02K is a black tactile switch push plate featuring a 2.6 mm actuator length with a Single Pole Single Throw (SPST) contact configuration. It is designed for surface mounting with straight terminal types. This push-on switch is rated for a maximum contact current of 50mA at a DC voltage of 12 V, supporting resistive load applications.
The switch has compact external dimensions of 4.7 mm by 3.5 mm and a height of 1.66 mm, making it suitable for space-constrained electronic assemblies. It operates reliably across a temperature range from -20°C up to 70°C, ensuring stable performance in various industrial and consumer environments.
The black push plate actuator provides tactile feedback with a push-on operation style and is non-illuminated. The tactile switch is part of the EVQP series from Panasonic and is built for mechanical reliability with an operating life expectancy of at least 100,000 cycles.
This tactile switch is ideal for industrial automation, consumer electronics, and control panel applications that require precise and compact switching components. Its surface mount design facilitates automated mounting and soldering, enhancing production efficiency.
Compact tactile switch with a black push plate actuator. Single Pole Single Throw (SPST) contact configuration for simple on/off control. Push-on operation provides reliable and responsive actuation. Surface mount type with straight terminals suitable for PCB assembly.
Electrical rating of 50mA at 12 V DC (resistive load) handles small current switching. Temperature range up to 70°C for versatile industrial use. Small external dimensions optimize space utilization in design. Long mechanical life rated for a minimum of 100,000 cycles.
Non-illuminated actuator maintains low power consumption and simplicity. Manufactured in China ensuring global compliance and quality control. Explore more Tactile Switches and related components from Panasonic and other reputable brands on EnvMart for your industrial, laboratory, and electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this tactile switch is 70°C, ensuring stable performance in various environments.
It features a Single Pole Single Throw (SPST) contact configuration, allowing for simple on/off control.
The external dimensions are approximately 4.7 mm by 3.5 mm, with a height of 1.66 mm, making it suitable for space-constrained applications.
The switch is rated for a maximum contact current of 50mA at a DC voltage of 12V, suitable for small current switching applications.
This model supports surface mounting with straight terminals, facilitating easy installation on PCBs.
The actuator length of this tactile switch is 2.6 mm, providing tactile feedback during operation.
It has a long mechanical endurance rated for a minimum of 100,000 cycles, ensuring reliability in use.
The switch operates with a push-on style, providing reliable and responsive actuation.
No, the actuator style is non-illuminated, which helps maintain low power consumption.
This tactile switch is manufactured in China, ensuring compliance with global quality standards.
This switch is part of the EVQP series from Panasonic, designed for compact and reliable switching solutions.
It is suitable for industrial automation, consumer electronics, and control panel applications that require compact switching components.
