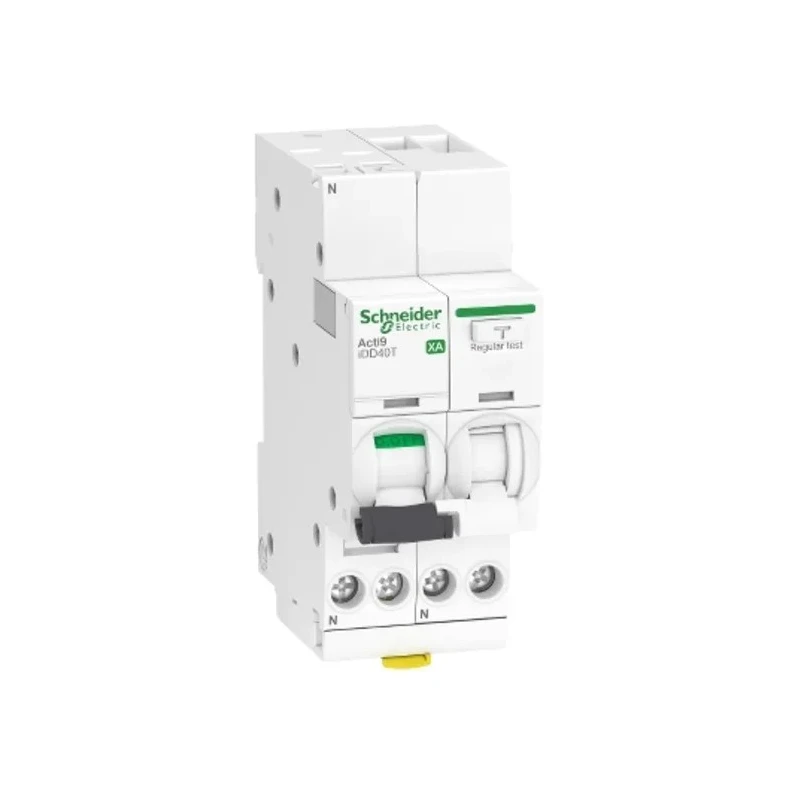

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 1-Pole, 300 mA A9DP6610
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DP6610 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | ACTI9 iDD40T XA |
| Terminal type | Tunnel |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- This breaker features thermal-magnetic tripping mechanism for overcurrent protection.
- It supports mounting on standard DIN rails for ease of installation.
- High breaking capacity rated at 6kA ensures robust fault interruption.
- Includes toggle switch reset actuator for convenient operation.
- Compact dimensions with height 85mm, depth 73mm, and width 36mm fit various panel sizes.
- Complies with EN/IEC 60947-2 and RoHS standards for quality and safety.
- Rated at 230V AC, suitable for distribution and residential electrical protection.
- The device has earth leakage protection type AC and trip characteristic Type C.
Product Description
Schneider Electric A9DP6610 residual current circuit breaker with overload protection combines high reliability and safety features for electrical distribution systems.
Equipped with a 10A current rating and 300 mA trip sensitivity, this 1-pole breaker provides effective earth leakage and overcurrent protection. The thermal-magnetic tripping mechanism ensures fast response to short circuits and overloads, safeguarding wiring and connected equipment.
The breaker features a toggle switch actuator for easy ON/OFF and trip indication. Mounting on a DIN rail allows for simple installation in electrical panels. Its compact dimensions of 85mm height, 73mm depth, and 36mm width make it suitable for a variety of residential and industrial applications.
Designed for rated AC voltage of 230V, this device has a breaking capacity of 6kA, ensuring the ability to interrupt fault currents safely. It is compliant with international standards EN/IEC 60947-2 and RoHS, verifying its quality and environmental safety.
The earth leakage protection corresponds to the AC type, and the trip characteristic is Type C, making it ideal for distribution and overcurrent protection in residential settings.
This breaker utilizes thermal-magnetic trip unit technology with instantaneous earth-leakage protection time delay. It is a Schneider Green premium classed product, promoting energy efficiency and safety. It supports ambient operating temperatures from -5 to 60 °C and relative humidity up to 95% at 55 °C.
Mounting is clip-on for quick and secure panel integration. Impulse withstand voltage rating of 4 kV ensures immunity against transient surges. Electrical durability is rated at 20,000 cycles, guaranteeing long-term reliable use.
Padlockable design provides extra security to avoid unauthorized operation.
This Schneider Electric circuit breaker is widely used in residential and commercial electrical distribution systems, providing essential earth leakage and overload protection. It is suitable for use in industrial, manufacturing, HVAC, and water treatment applications requiring high safety standards.
EnvMart offers this premium Schneider Electric Residual Current Circuit Breaker model A9DP6610 suitable for professional electrical installations requiring compliance with IEC and EN safety standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circuit breaker has a current rating of 10A.
This model features a trip sensitivity of 300 mA.
It has a breaking capacity rated at 6kA, allowing for effective fault interruption.
It utilizes a thermal-magnetic tripping mechanism for overcurrent protection.
The dimensions are 85mm in height, 73mm in depth, and 36mm in width.
It supports mounting on standard DIN rails, facilitating easy installation.
It complies with EN/IEC 60947-2 and RoHS standards for quality and safety.
It provides AC type earth leakage protection.
The rated AC voltage is 230V.
The tripping characteristic is Type C, suitable for residential applications.
It can operate in ambient temperatures ranging from -5 to 60 °C.
This circuit breaker is a 1-pole device.
