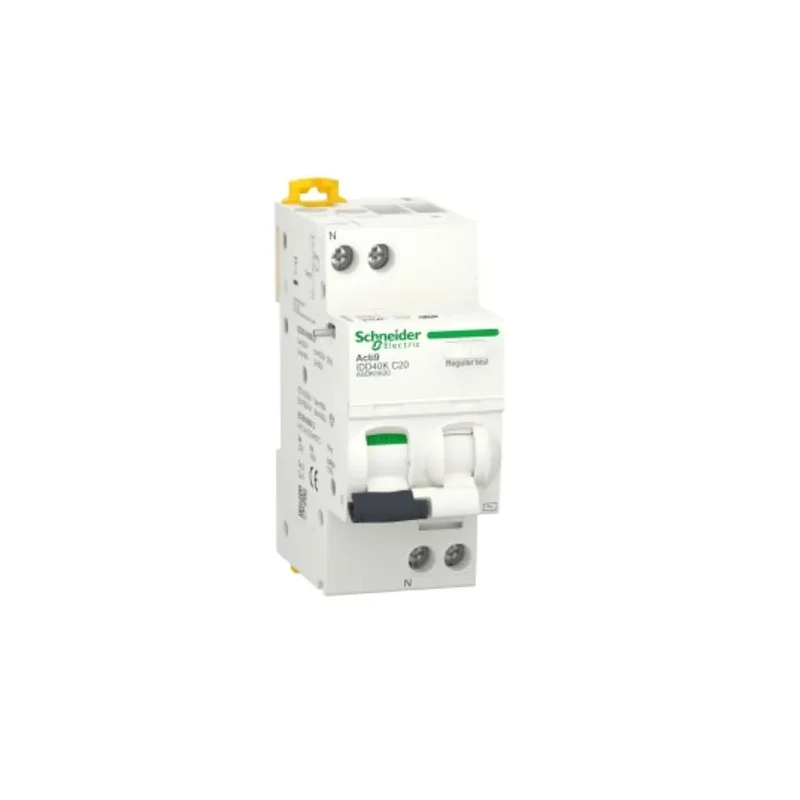

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A 1-Pole 300mA Trip A9DK5620
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DK5620 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | Acti9 iDD40K |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- This breaker incorporates thermal magnetic tripping mechanism ensuring reliable protection against overload and short circuits.
- It offers a breaking capacity of 4.5kA suitable for residential and distribution board applications.
- Designed for DIN rail mounting and equipped with a toggle switch actuator for easy reset and control.
- Built with an AC earth leakage protection type and complies with RoHS and EN/IEC 60947-2 standards.
- Compact dimensions (85 mm height, 73 mm depth, 36 mm width) ensure efficient panel space utilization.
- Impulse withstand voltage rated at 4 kV provides robust performance under electrical surges.
- Reliable operation in ambient temperatures from -5 to 60 °C and relative humidity up to 95% at 55 °C.
- Padlockable feature adds extra safety by preventing unauthorized resetting.
Product Description
Schneider Electric A9DK5620 Residual Current Circuit Breaker with Overload Protection provides dependable electrical safety with a 20A current rating and 300 mA trip sensitivity. It is engineered to protect electrical circuits from overloads, short circuits, and earth leakage currents in residential and commercial installations.
This 1-pole RCBO integrates thermal magnetic trip unit technology with instantaneous earth leakage protection offering reliable and swift operation. The toggle switch actuator enables easy manual reset and includes a trip indicator for clear status identification.
The device’s breaking capacity of 4.5kA ensures capability to handle fault currents in typical distribution boards. Mounting is convenient via DIN rail, facilitating quick installation and maintenance.
It conforms to rigorous standards such as RoHS and EN/IEC 60947-2 ensuring high safety and quality assurance. Its compact size (85 mm height, 73 mm depth, and 36 mm width) allows for efficient space utilization within electrical panels.
Designed for durability, the RCBO withstands impulse voltages up to 4 kV and operates reliably across an ambient temperature range of -5 to 60 °C with high relative humidity conditions. Additional safety features include a padlockable design to prevent unauthorized operation.
This residual current breaker is suited for residential, distribution, and overcurrent protection applications. Its thermal magnetic tripping mechanism provides accurate and dependable protection against electrical faults.
DIN rail mounting and toggle switch facilitate easy installation and user control. Built for industrial, residential, and commercial electrical safety systems. Certified for compliance with international electrical safety standards.
Explore more Schneider Electric products and electrical control devices in the EnvMart catalog for advanced industrial and commercial electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20A, making it suitable for various residential and commercial applications.
The breaking capacity is 4.5kA, which allows it to handle fault currents effectively in typical distribution boards.
It incorporates a thermal magnetic tripping mechanism, providing reliable protection against overloads and short circuits.
The dimensions are 85 mm in height, 73 mm in depth, and 36 mm in width, allowing for efficient use of panel space.
This unit is designed for DIN rail mounting, facilitating quick and easy installation.
The trip sensitivity is 300mA, which provides effective earth leakage protection.
It complies with RoHS and EN/IEC 60947-2 standards, ensuring adherence to safety and quality regulations.
The rated AC voltage for this circuit breaker is 230V AC, suitable for standard residential and commercial electrical systems.
It operates reliably in ambient temperatures ranging from -5 to 60 °C, accommodating various environmental conditions.
Yes, it includes a padlockable feature that prevents unauthorized resetting, enhancing safety during operation.
It offers AC earth leakage protection, which is essential for preventing electrical shocks and ensuring safety.
The reset actuator is a toggle switch, making it easy to manually reset and control the circuit breaker.
