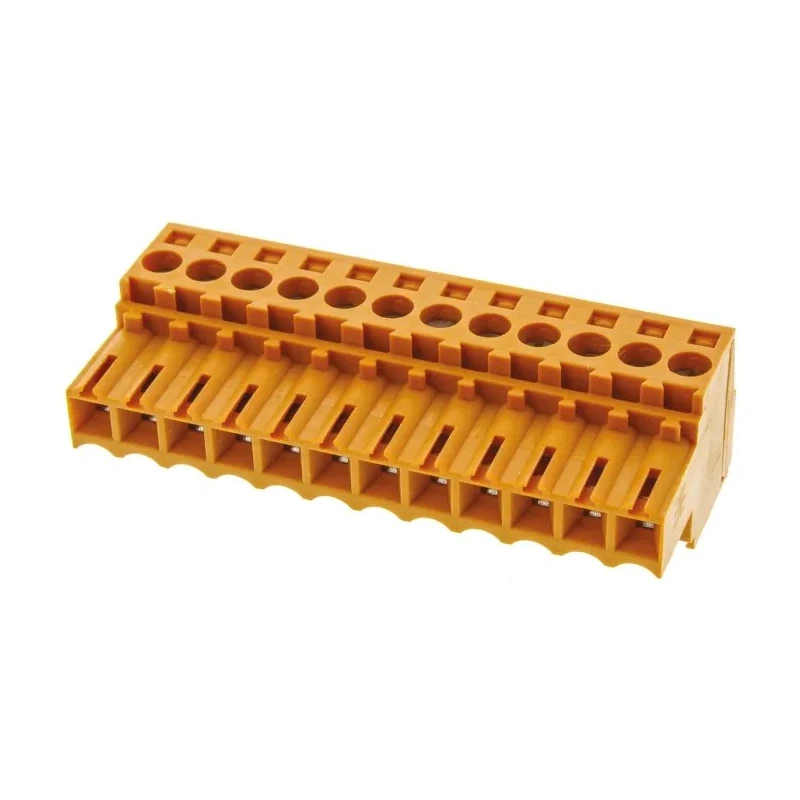

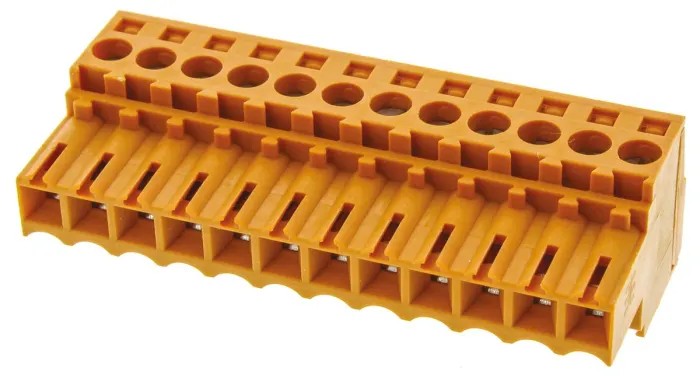

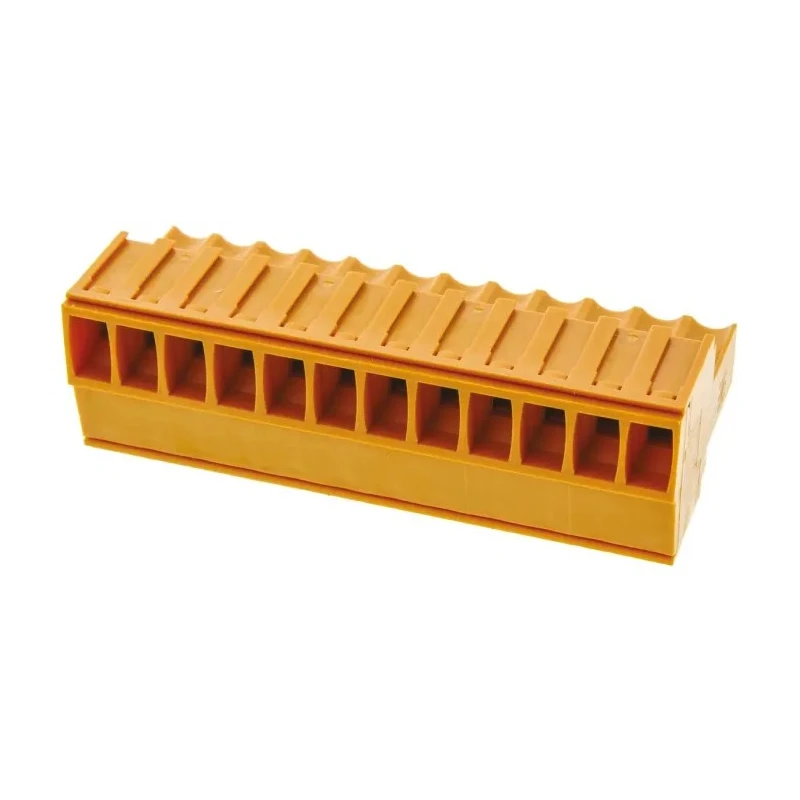

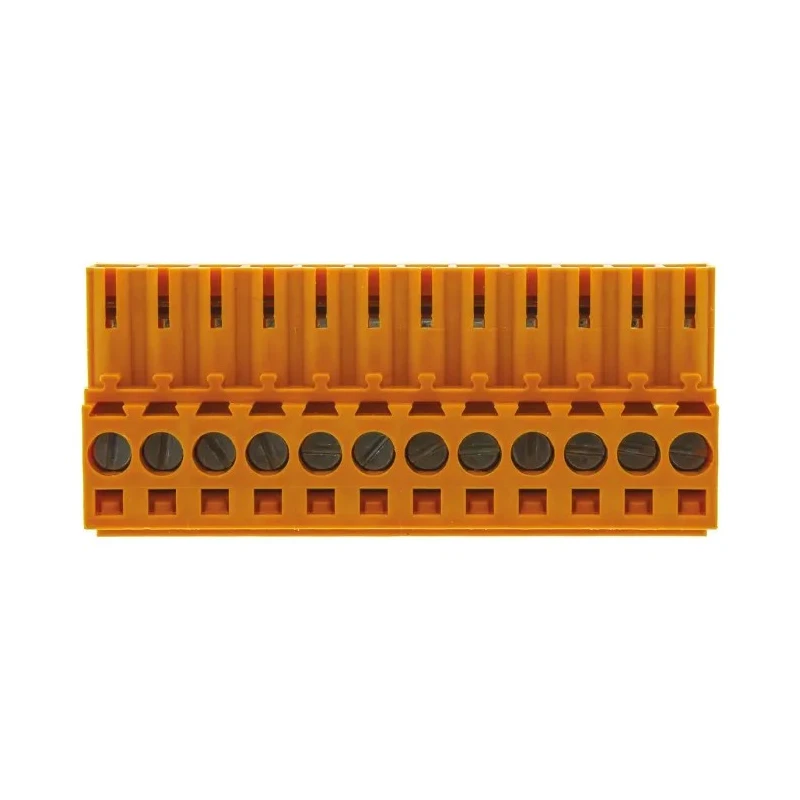

Weidmüller BL Series Pluggable Terminal Block 12-Contact 3.5 mm Pitch 1 Row 320V 17A 1597460000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Current | 17A |
| Length | 6mm |
| Depth | 18.5mm |
| Width | 13mm |
| Housing Material | Polybutylene Terephthalate |
| Series | BL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 12 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Screw |
Key Features
- Operates at a voltage rating of 320V and a current of 17A.
- Compatible with wire sizes ranging from 28 AWG to 14 AWG.
- Features a screw-type wire connection method for secure terminal clamping.
- Constructed with durable Polybutylene Terephthalate housing material and finished in orange color.
- Compact dimensions with a length of 6 mm, width of 13 mm, and depth of 18.5 mm.
- Complies with RoHS standards ensuring environmental safety.
- Designed as a male connector type suitable for PCB applications.
- Manufactured in Germany ensuring high quality and precision.
Product Description
Weidmüller 1597460000 is a BL Series pluggable terminal block designed for industrial and electronic applications requiring reliable electrical connections. It features 12 contacts arranged in a single row with a 3.5 mm pitch, providing a compact and efficient design suitable for space-saving PCB assemblies.
This terminal block supports a voltage rating of 320V and a maximum current of 17A, accommodating wire sizes from 0.08mm² to 2.5mm² (28 AWG to 14 AWG). The screw connection method ensures secure and stable wire clamping to maintain electrical integrity under varying operational conditions.
The housing is made from Polybutylene Terephthalate (PBT), a flame-retardant material certified to UL 94-B0 standards, offering mechanical strength and environmental resistance. Finished in an orange color for easy identification, the connector is of male type ensuring compatibility within the Weidmüller Omnimate range of connectors.
This product complies with RoHS environmental directives, making it suitable for eco-conscious manufacturing environments. Its compact dimensions (6 mm length, 13 mm width, 18.5 mm depth) allow versatile integration in electronic assemblies across industrial, automation, and manufacturing sectors.
Operates at 320V and 17A current rating. Accepts wires from 28 AWG to 14 AWG sizes. Screw connection provides secure clamping. Durable Polybutylene Terephthalate housing material. Compact and space-saving 3.5 mm pitch design.
Compliant with RoHS environmental standards. Manufactured in Germany ensuring quality. Suitable for PCB applications in industrial electronics.
Use Weidmüller 1597460000 Pluggable Terminal Blocks in industrial automation, manufacturing equipment, electronic device assemblies, and power distribution panels for reliable and safe electrical connections. Explore more advanced electronic components and connectors at EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 320V and a maximum current of 17A.
This terminal block accommodates wire sizes ranging from 28 AWG to 14 AWG, or from 0.08mm² to 2.5mm².
It features a screw-type wire connection method for secure terminal clamping.
The dimensions are 6 mm in length, 13 mm in width, and 18.5 mm in depth.
Yes, it complies with RoHS environmental directives, ensuring it meets safety and environmental standards.
It is designed as a male connector type, suitable for PCB applications.
This model features 12 contacts arranged in a single row.
The pitch of this terminal block is 3.5 mm, providing a compact design for PCB assemblies.
It is manufactured in Germany, ensuring high quality and precision.
It is suitable for use in industrial automation, manufacturing equipment, electronic device assemblies, and power distribution panels.
This terminal block is part of the Weidmüller BL Series.
