Weidmüller BL Series Pluggable Terminal Block 10 Contacts 3.5 mm Pitch 1 Row 300V 10A 1597440000

Free Delivery in India | Lowest Global Shipping Charges

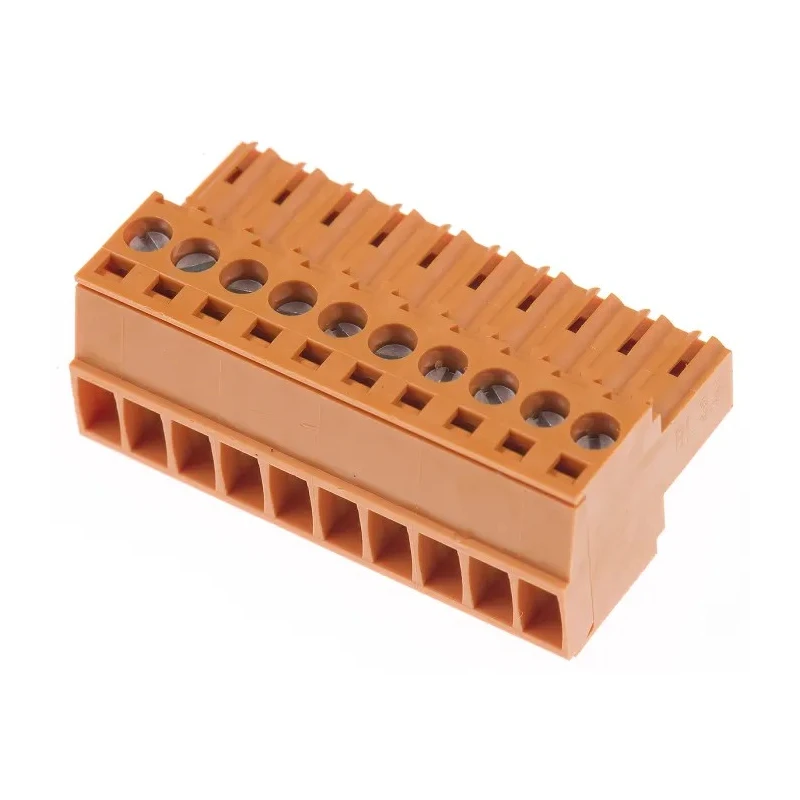

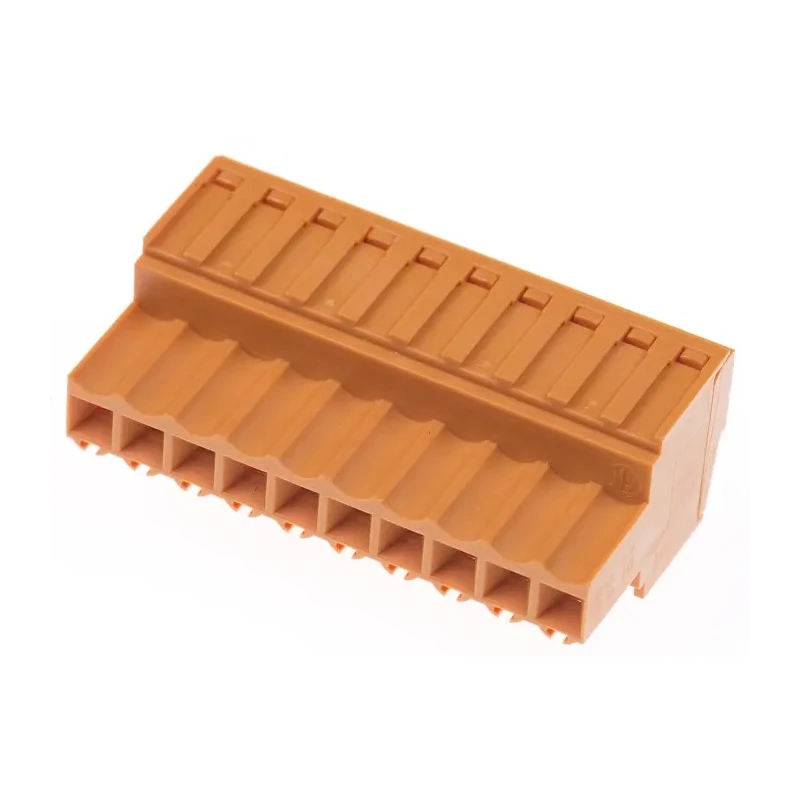

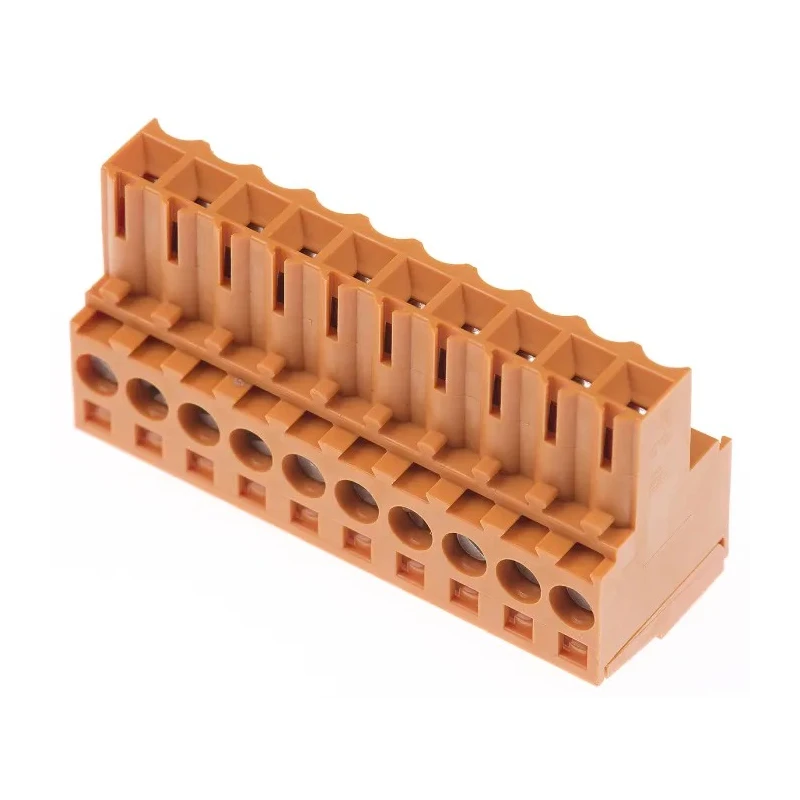

Weidmüller BL Series Pluggable Terminal Block 10 Contacts 3.5 mm Pitch 1 Row 300V 10A 1597440000

Name: Weidmüller BL Series Pluggable Terminal Block 10 Contacts 3.5 mm Pitch 1 Row 300V 10A 1597440000
Brand: Weidmuller
SKU: 113896



Category Pluggable Terminal Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	300V
Brand	Weidmüller
Colour	Orange
Orientation	180°
Current	10A
Depth	18.5mm
Width	35mm
Housing Material	Polybutylene Terephthalate
Series	BL
Number of Rows	1
Pitch	3.5mm
Number of Contacts	10
Connector Gender	Female
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	14AWG
Wire Connection Method	Clamping Yoke

Key Features

The terminal block supports a maximum current of 10 amperes.
It accepts wire sizes ranging from 0.08 mm² to 1.5 mm² (28 AWG to 14 AWG).
Constructed from durable polybutylene terephthalate housing for reliable insulation and mechanical strength.
Features a clamping yoke wire connection method ensuring secure and stable connections.
This female connector offers 180° orientation and comes in an orange color for easy identification.
Designed for a voltage rating of 300 volts suitable for various electronic applications.

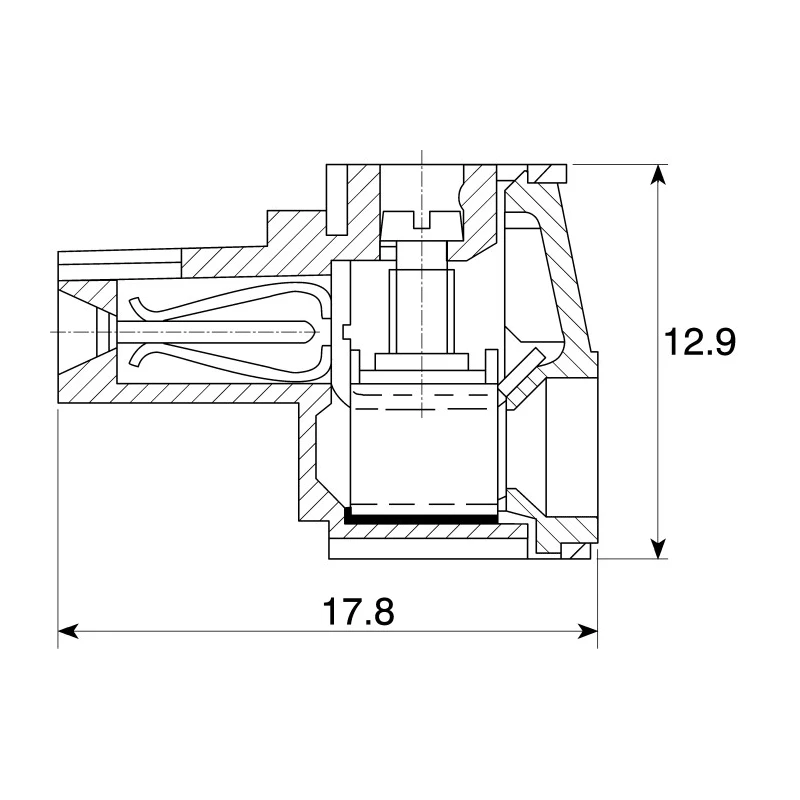

The compact dimensions include a width of 35 mm and a depth of 18.5 mm.
It is part of the BL series tailored for space-saving PCB mounting applications.

Product Description

The Weidmüller 1597440000 BL Series pluggable terminal block is a precision-engineered connector featuring 10 contacts with a 3.5 mm pitch arranged in a single row. Designed for industrial and electronic applications, this terminal block supports up to 10 amperes of current and is rated for 300 volts, making it suitable for power distribution and signal applications on printed circuit boards (PCBs).

Constructed with a robust polybutylene terephthalate (PBT) housing, it provides excellent insulation and resistance to mechanical stress. The female connector design includes a clamping yoke wire connection method that provides stable and secure wiring, accommodating wire sizes ranging from 0.08 mm² (28 AWG) to 1.5 mm² (14 AWG). The 180-degree wire orientation facilitates easy wiring access, while the orange housing enhances visibility in complex assemblies.

This BL series terminal block is part of the Weidmüller Omnimate Range, which offers a cost-effective and space-saving solution for PCB applications. The connectors have fully enclosed sides and optional polarising pins to prevent mismatched connections. The housing complies with UL94 V-0 flammability standards ensuring safety and reliability in demanding environments.

Typical use cases include electronic circuit assembly, industrial automation systems, control panels, and PCB mounting in manufacturing and laboratory equipment. The compact size with a width of 35 mm and depth of 18.5 mm enables efficient space utilization in dense assemblies.

10-contact pluggable terminal block for secure electrical connections. 3.5 mm pitch suitable for compact PCB layouts. Supports up to 10 A current and 300 V voltage rating. Durable polybutylene terephthalate housing with UL94 V-0 classification.

Clamping yoke wire connection facilitating reliable wiring. Accepts wire sizes from 0.08 mm² to 1.5 mm² (28 AWG to 14 AWG). Orange color improves component identification on boards. 180° horizontal wire entry for ease of installation.

Manufactured in Germany to high-quality standards.
