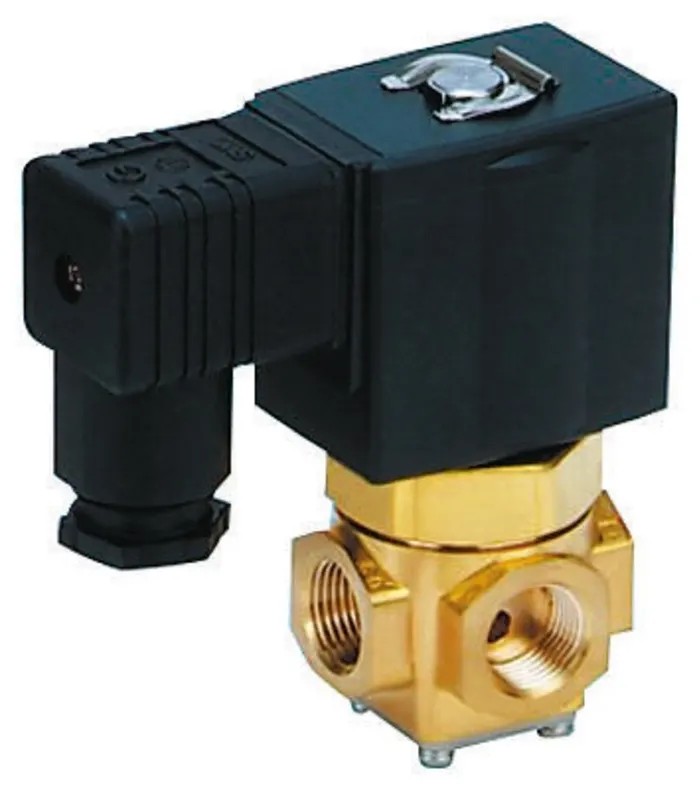

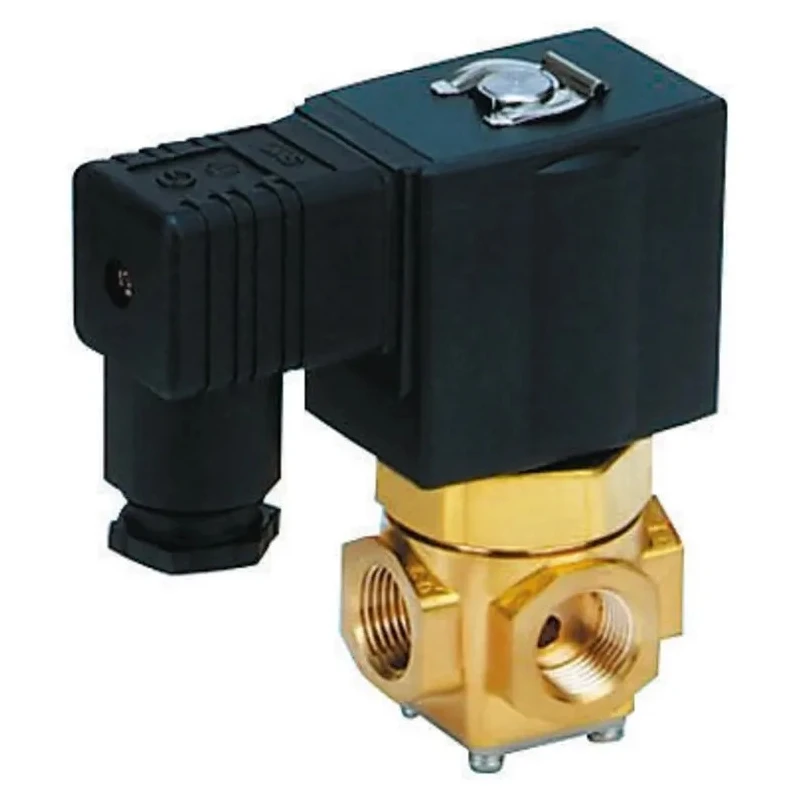

SMC VX3224A-02F-JDR1 3 Port Common Solenoid Valve Brass Body 230V AC 1/4 in G Japan

Free Delivery in India | Lowest Global Shipping Charges

SMC VX3224A-02F-JDR1 3 Port Common Solenoid Valve Brass Body 230V AC 1/4 in G Japan



Category Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Brass
Maximum Operating Pressure	1.6 Mpa
Model	VX3224A-02F-JDR1
Series	VX32
Number Of Ports	3
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Orifice Diameter	2.2mm
Supply Voltage	230V ac
Inlet Port Size	1/4 in G
Default Valve Position	Common
SMC Solenoid Valve VX3224-02F-JDR1, 3 Port, Common, 230V ac 1/4 in GBrand	SMC

Key Features

The valve is direct acting with a VX32 series design suitable for air, water, oil, and steam applications.
It features a 2.2 mm orifice diameter ensuring precise fluid control.
Maximum operating pressure is rated at 1.6 MPa for robust industrial use.
Operational temperature range spans from -20°C to a maximum of 60°C for versatility.
The valve includes a compact, lightweight design with IP65 coil enclosure for durability.
Coils are available in Class B and Class H insulation ratings.
Seals compatible with NBR, FKM, or EPDM materials enhance application flexibility.
Easy replacement without changing existing piping reduces maintenance downtime.

Product Description

The SMC VX3224A-02F-JDR1 solenoid valve is a high-quality, direct acting 3 port valve featuring a common default valve position. Constructed with a brass body, it operates at 230V AC and connects via a 1/4 inch G inlet port. This valve is part of the VX32 series, designed for industrial fluid control applications, including air, water, oil, and steam.

With an orifice diameter of 2.2 mm, it provides precise regulation of flow under a maximum operating pressure of 1.6 MPa. It functions effectively within a temperature range of -20°C to 60°C, making it suitable for diverse industrial environments requiring thermal resilience. The valve's robust design incorporates an IP65 coil enclosure that offers protection against dust and water ingress, enhancing its reliability.

The coil options of Class B and Class H insulation ensure longevity under electrical stresses. Additionally, the valve can be fitted with seals made from NBR, FKM, or EPDM materials to suit specific chemical and temperature resistance needs. The valve body’s compact and lightweight design facilitates easy installation and replacement without the need for modifying the existing piping system.

This solenoid valve does not possess hazardous area certification or other specialized approvals but is engineered for standard industrial uses. Originating from Japan, the product assures precision manufacturing standards expected from SMC.

The valve supports air, water, oil, and steam fluid types. Direct acting three-port configuration provides common valve functionality. Compact size and lightweight construction improve handling and installation. Seals available in NBR, FKM, or EPDM expand chemical compatibility.

IP65 coil enclosure protects against environmental factors. Available with Class B and Class H coil insulation ratings. Allows easy replacement with no piping changes required. Designed for maximum operating pressure of 1.6 MPa.

Operational temperature range from -20°C to 60°C. Explore EnvMart industrial valves categories for more SMC Solenoid Valves and related precision fluid control components for various commercial and industrial applications.
