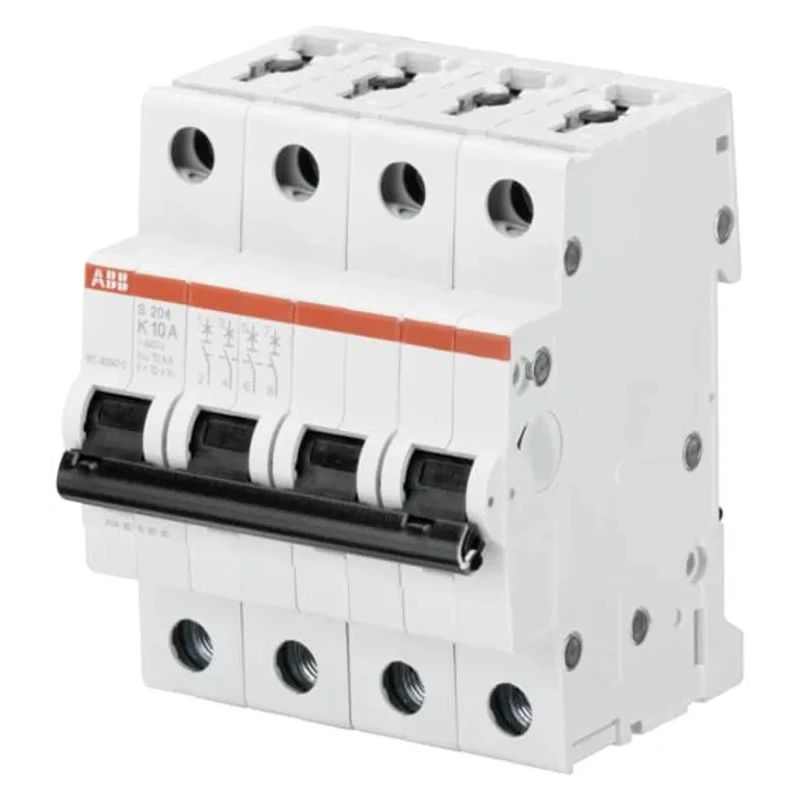

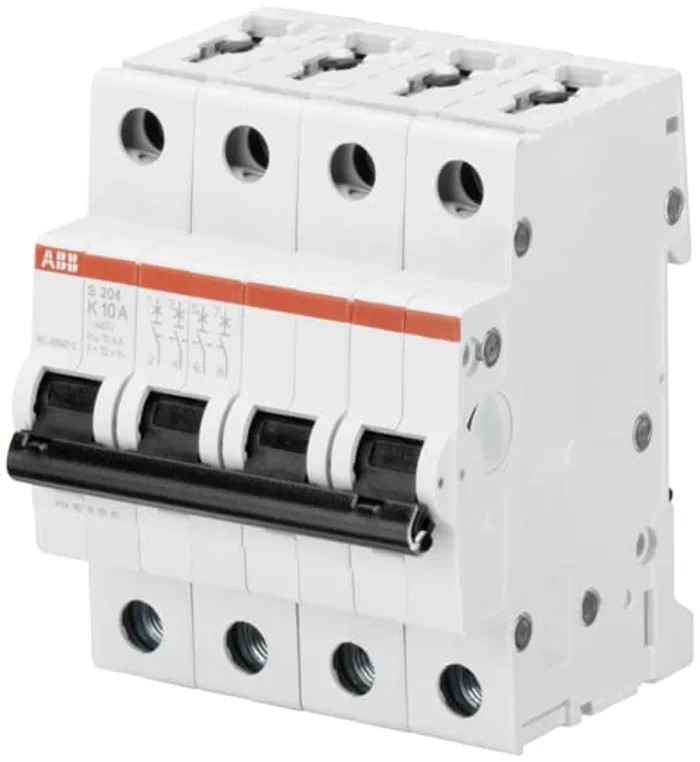

ABB System Pro M Compact S200 Miniature Circuit Breaker, 4-Pole, 3A, Type K, 440V AC, 110V 2CDS254001R0317 S204 K 3A - 10 KA

ABB 2CDS254001R0317 S204 K 3A - 10 KA miniature circuit breaker belongs to the System Pro M Compact S200 series, engineered for precise circuit protection in industrial and commercial electrical installations. This 4-pole device offers a current rating of 3A with Type K tripping characteristics, making it ideal for protecting circuits with inductive loads and providing effective short circuit and overload protection.

The breaker is rated for high voltages with 440V AC and 110V DC support and a breaking capacity of 6 kA. It features a robust thermal and electromagnetic tripping mechanism utilizing anaerobic adhesive to ensure reliable operation during fault conditions. Designed for easy mounting on DIN rails, it includes screw terminals to provide secure and stable electrical connections within control panels.

The S200 series meets international standards including UL1077, IEC/EN 60898-1, and IEC/EN 60947-2, guaranteeing compliance with global safety and performance requirements. Its IP20 and IP40 ratings ensure adequate protection against solid objects and limited protection against liquids, suitable for controlled industrial environments.

With a compact size of 88mm height, 70mm width, and 69mm depth, the miniature circuit breaker optimizes space usage in electrical enclosures. Its operating ambient temperature range from -25 to +55 °C allows it to perform reliably across varied environmental conditions. Manufactured in Germany, it exemplifies quality and durability.

This MCB is applicable for use in electrical distribution boards, machinery, control panels, industrial automation systems, and commercial building installations, providing essential circuit safety to prevent equipment damage and electrical hazards.

Designed for DIN rail mounting with screw terminals for secure connections. Rated for 440V AC and 110V DC with a breaking capacity of 6 kA. Type K tripping characteristics suitable for inductive loads. Compact S200 series complies with UL1077, IEC/EN 60898-1, IEC/EN 60947-2 standards.

Offers an IP20 and IP40 degree of protection for safe industrial use. Ambient operation temperature ranges from -25 to +55 °C ensuring reliability in various environments. Features a thermal-magnetic tripping mechanism using anaerobic adhesive.

Compact dimensions: 88mm height, 70mm width, and 69mm depth. Manufactured in Germany following strict quality standards.
