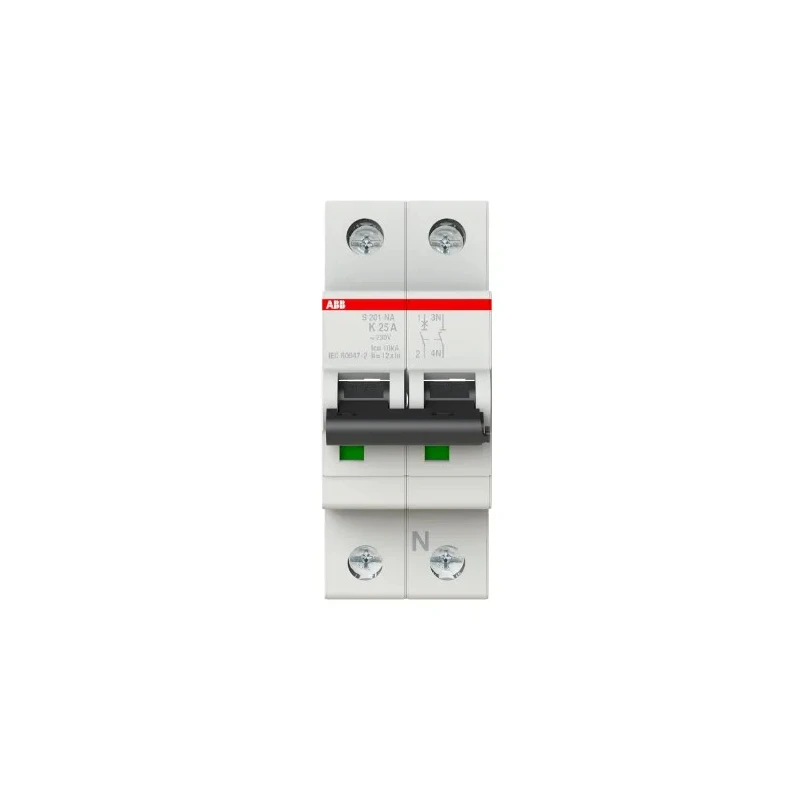

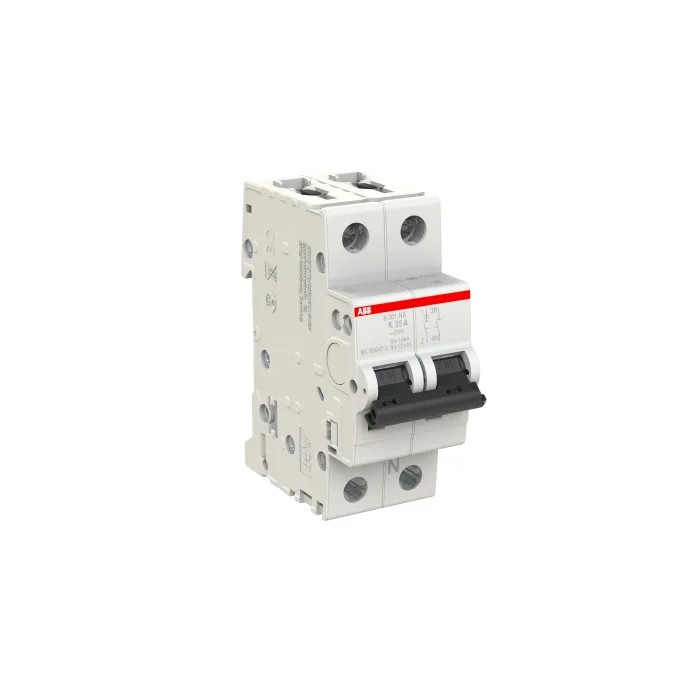

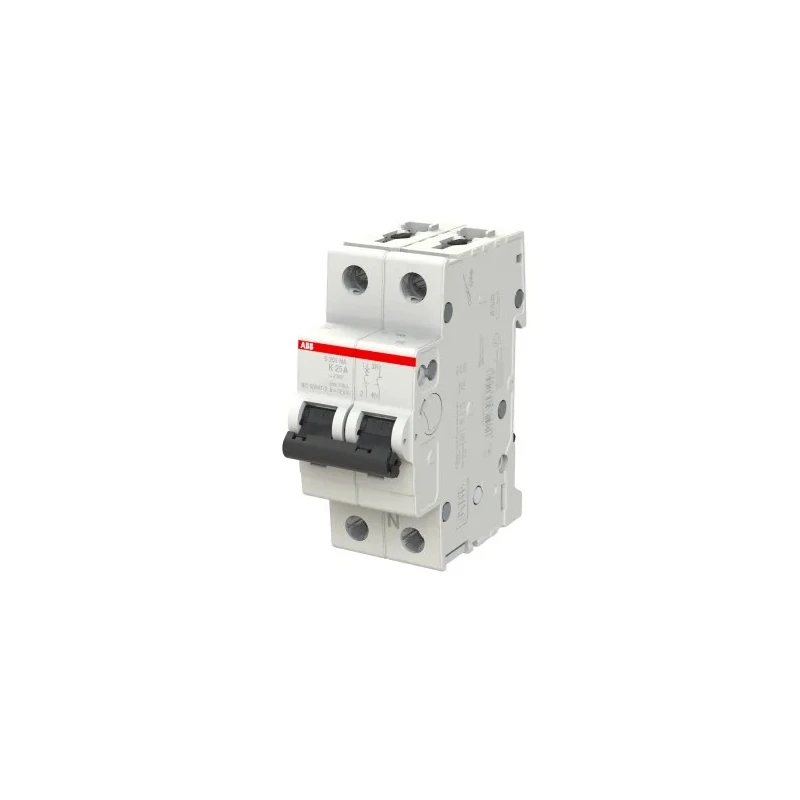

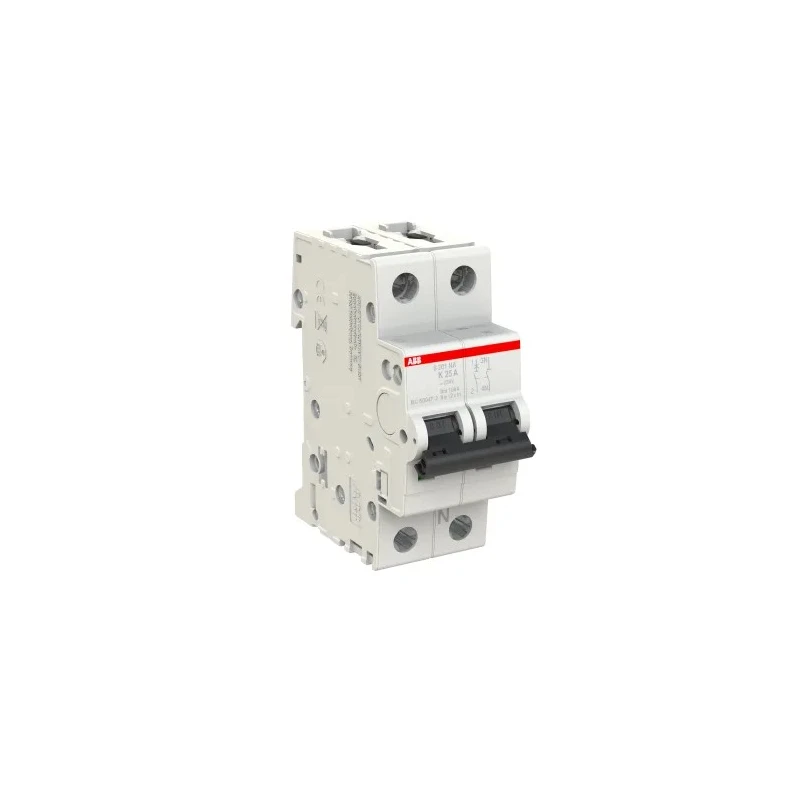

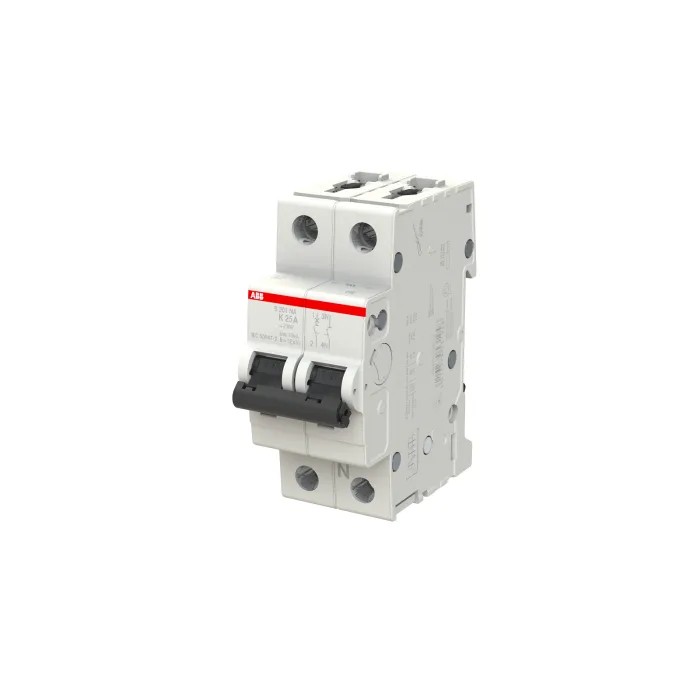

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 25A, Type K, 400V AC, 6 kA Breaking Capacity 2CDS251103R0517
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS251103R0517 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type K |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Features a compact design for easy DIN rail mounting in electrical panels.
- Integrates dual thermal and electromagnetic tripping mechanisms for overload and short circuit protection.
- Type K tripping characteristics tailored for motor protection and commercial applications.
- Rated for 400V AC operation with 6kA breaking capacity to handle fault currents efficiently.
- Constructed to IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring high safety and quality.
- Equipped with screw terminal type for secure wiring and installation.
- IP20 and IP40 ratings provide suitable protection against ingress and dust.
- Designed to operate within ambient temperatures from -25°C to +55°C making it versatile for various environments.
Product Description
ABB 2CDS251103R0517 System Pro M Compact S200 Miniature Circuit Breaker offers dependable overload and short circuit protection in commercial, residential, and industrial electrical installations. This 1-pole MCB is rated at 25A current with a Type K tripping characteristic optimized for motor protection and similar inductive load applications. Operating at 400V AC with a breaking capacity of 6 kA, it efficiently manages fault currents to safeguard electrical circuits and devices.
The device employs both electromagnetic and thermomagnetic tripping mechanisms, combining quick response to short circuits and delayed overload protection for enhanced reliability. The compact form factor allows convenient DIN rail mounting, with dimensions of 35mm width, 88mm height, and 69mm depth, saving space within distribution boards.
Constructed to meet IEC/EN 60898-1 and IEC/EN 60947-2 standards, the breaker features screw terminals for secure connections and an IP20/IP40 ingress protection rating for dust resistance. Its toggle switch actuator simplifies manual reset after tripping. The temperature rating of -25°C to +55°C ensures performance stability across diverse climatic conditions.
This MCB is ideal for protecting electrical installations in commercial buildings, residential premises, control panels, and motor-driven equipment. It supports efficient energy management while enhancing electrical safety with its current limiting and fast trip characteristics.
Compact design optimized for DIN rail panel installations. Thermal and electromagnetic tripping mechanisms for robust circuit protection. Type K tripping suited for motor and inductive load defense. Rated for 25A current, 400V AC voltage, and 6 kA breaking capacity.
Complies with IEC/EN safety standards for circuit breakers. Screw terminal type provides reliable electrical connections. IP20 and IP40 ratings shield against dust and ingress. Wide operating temperature range from -25°C to +55°C.
Toggle switch actuator for manual breaker reset. Explore our complete range of Miniature Circuit Breakers in the Electronics & Electricals category for reliable and efficient circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 6 kA, which allows it to effectively manage fault currents.
This model measures 35mm in width, 88mm in height, and 69mm in depth, making it compact for DIN rail installations.
It employs both electromagnetic and thermomagnetic tripping mechanisms for overload and short circuit protection.
It is rated for operation at 400V AC, suitable for various electrical installations.
The current rating is 25A, which is appropriate for many commercial and residential applications.
It has IP20 and IP40 ratings, providing protection against dust and ingress in different environments.
It is designed for DIN rail mounting, allowing for easy installation in electrical panels.
It is constructed to meet IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring safety and quality.
It features Type K tripping characteristics, which are optimized for motor protection and inductive loads.
It operates effectively within a temperature range of -25°C to +55°C, making it versatile for various environments.
It is equipped with screw terminals, providing secure connections for wiring.
It is suitable for protecting electrical installations in commercial buildings, residential premises, control panels, and motor-driven equipment.
