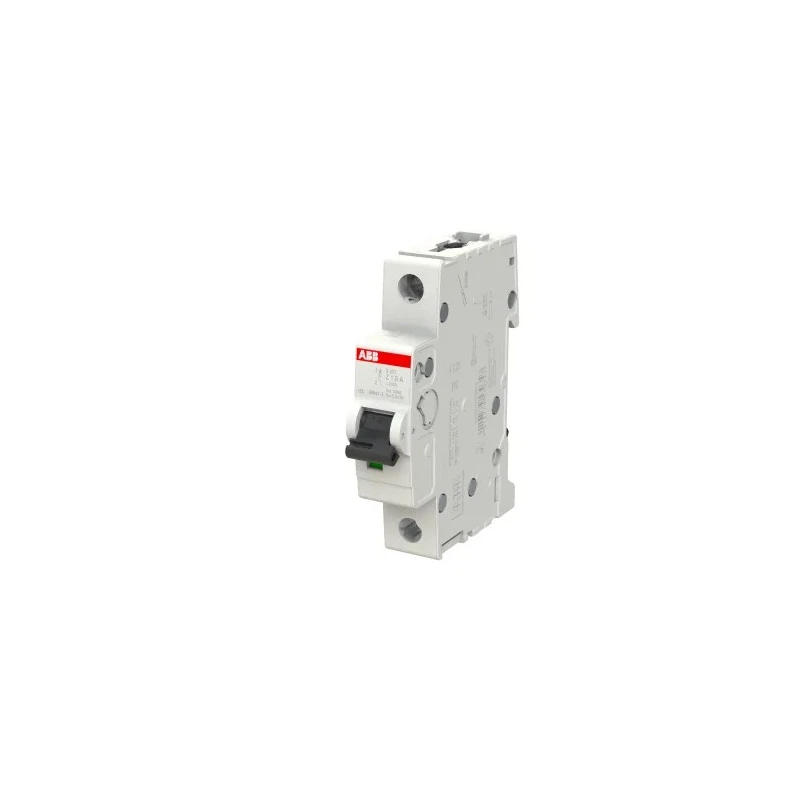

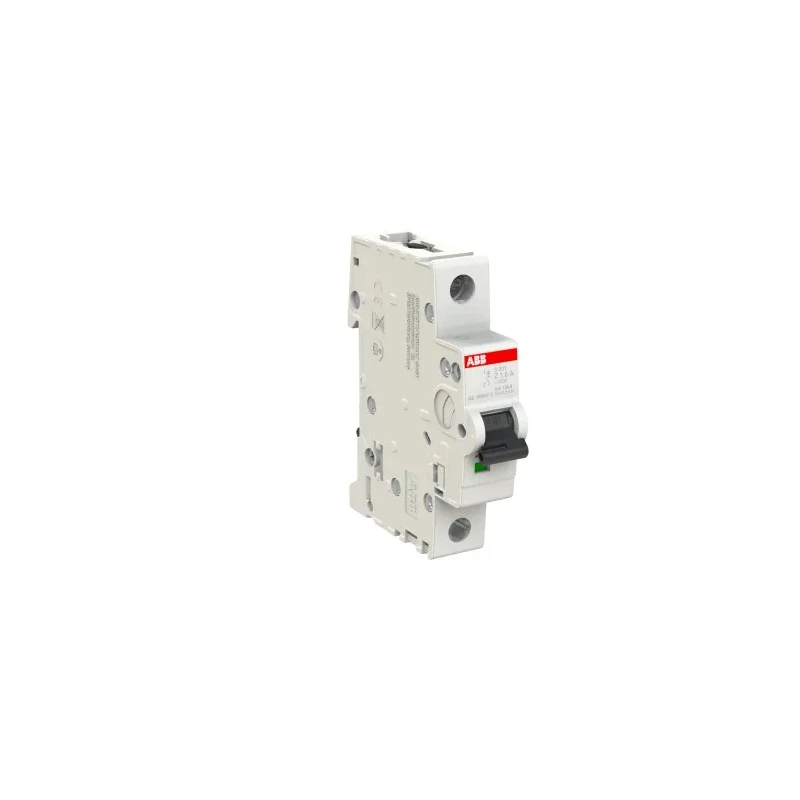

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 1.6A Current, Type Z 2CDS251001R0258 S201 Z 1.6A - 10 KA

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker, 1-Pole, 1.6A Current, Type Z 2CDS251001R0258 S201 Z 1.6A - 10 KA



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS251001R0258 S201 Z 1.6A - 10 KA
Depth	69mm
IP Rating	IP20, IP40
Width	17.5mm
Mount Type	DIN Rail
Current Rating	1.6A
Series	S200
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Rated DC Voltage	72V
Tripping Characteristics	Type Z
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Rated current of 1.6A provides effective overload protection.
Type Z tripping characteristic ensures sensitive protection for low overloads.
Supports operating voltages of 400V AC and 72V DC.
Breaking capacity of 6 kA ensures safety during fault conditions.
Designed for easy DIN rail mounting with screw terminal connections.
Compact width of 17.5mm saves installation space.
Red-green contact indication for clear operational status.
Robust electromechanical and thermal tripping mechanisms enhance safety.

Product Description

ABB 2CDS251001R0258 S201 Z 1.6A - 10 KA Miniature Circuit Breaker from the System Pro M Compact S200 series offers premium circuit protection with reliable thermal and electromechanical tripping mechanisms. Rated for 1.6 amperes current, this 1-pole breaker is engineered for use in residential and commercial electrical systems requiring compact size and precise overload protection.

The breaker supports rated AC voltage up to 400V and DC voltage of 72V, with an interrupting capacity of 6 kiloamperes at rated fault conditions, ensuring robust safety performance. Its Type Z tripping characteristic allows for sensitive trip performance under low overload scenarios, ideal for protecting delicate circuits and equipment.

Designed with a modular width of 17.5mm and DIN rail mount compatibility, installation flexibility is maximized alongside screw terminal types that secure cables up to 35mm². The toggle switch with clear red/green contact indication improves user interaction and status visibility.

This device meets international standards IEC/EN 60898-1 and IEC/EN 60947-2, certified for manufacturing quality and operational reliability. It features IP20 and IP40 ingress protection for suitability in various electrical enclosures and installations.

As a Better World product, it is designed for disassembly, reflecting commitment to sustainability and environmental responsibility. Manufactured in Germany, it exemplifies precision engineering and high quality.

Rated current of 1.6A provides reliable overload protection. Type Z characteristic ensures sensitive, precise circuit protection. Supports 400V AC and 72V DC operating voltages. 6kA breaking capacity for safe fault interruption.

Compact 17.5mm width DIN rail mounting breaker. Screw terminal type supports up to 35mm² cable size. Toggle switch with red/green contact indication for clear status. Electromagnetic and thermomagnetic tripping mechanism.

IP20/IP40 rated for versatile installation environments. Compliance with IEC/EN 60898-1 and IEC/EN 60947-2 international standards.

This Miniature Circuit Breaker is perfect for electrical protection in industrial, residential, commercial, and marine applications. Its compact design and sensitive tripping make it suitable for modern distribution panels where precision and space-saving are critical. For top-quality electrical components, explore ABB and System Pro M Compact S200 series products at EnvMart.
