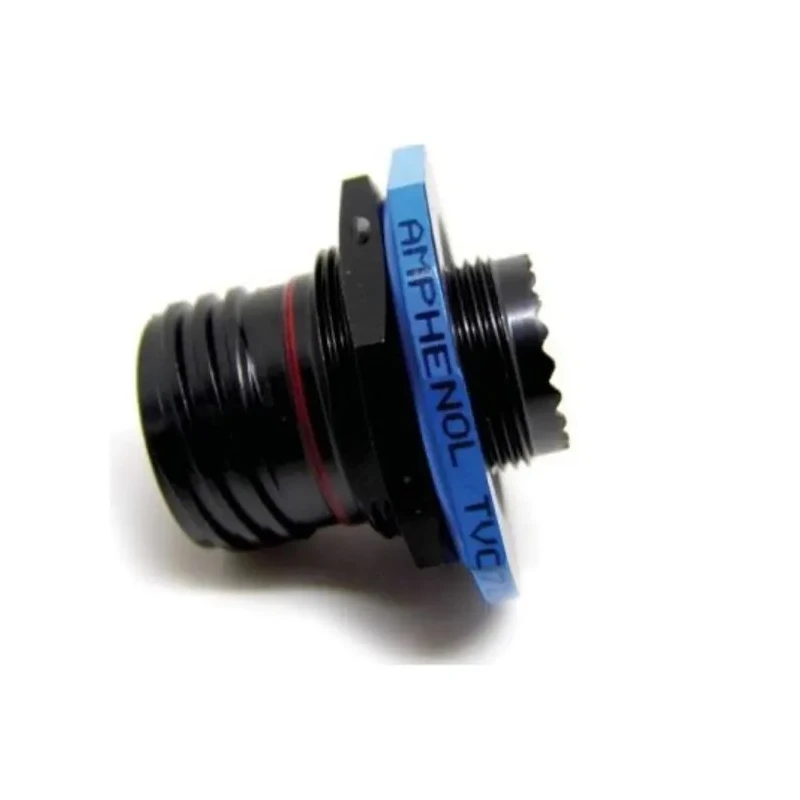

Amphenol Limited Copper Alloy Straight 22 Way Panel Circular Connector Female 550V 5A MIL-DTL-38999 Series D38999/24ZC35SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Amphenol Limited |
| Colour | Silver |
| Orientation | Straight |
| Current | 5A |
| Model | D38999/24ZC35SN |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | D38999 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | C13 |
| Military Standard | MIL-DTL-38999 Series III |
| Mating Type | Self-Locking |
| Connector Size | Subminiature |
| Shell Plating | Electroless Nickel |
Key Features
- This circular connector features female contacts rated for 5 amperes and 550 volts.
- The connector shell is size C13, made from aluminium with electroless nickel plating for corrosion resistance.
- It operates reliably between -65°C to 200°C, suitable for harsh environments.
- The connector incorporates a self-locking mating type with crimp termination and strain relief features.
- Its subminiature size and silver color shell optimize durability and integration in tight spaces.
- Contact material is copper alloy with gold plating to ensure high conductivity and corrosion resistance.
- Meets MIL-DTL-38999 Series III military standard for rugged and severe environment usage.
- The connector is panel mounted and polarized to prevent misconnection.
Product Description
Amphenol Limited D38999/24ZC35SN is a high performance copper alloy straight 22 way panel circular connector part of the MIL-DTL-38999 Series III family. Designed for use in demanding industrial, military, and aeronautic applications, this connector delivers robust and reliable performance under severe environmental conditions.
The 22 contact female socket connector supports a current rating of 5 amperes and voltage rating of up to 550 volts, suitable for power and signal connections. Its aluminium shell with electroless nickel plating provides excellent corrosion resistance and mechanical strength, while the silver finish complements its rugged industrial aesthetic.
Operating over a wide temperature range from -65°C to 200°C, this connector meets rigorous MIL standards ensuring durability in extreme cold and heat. The self-locking mating mechanism and crimp termination ensure secure connections and ease of installation with strain relief to protect against cable stress.
The subminiature size with shell size C13 and 24 jam nut receptacle configuration facilitates compact design integration while maintaining high-performance electrical and mechanical characteristics. Gold-plated copper alloy contacts provide superior conductivity and resistance to corrosion, critical for high reliability.
This connector is ideal for use in military, aerospace, and advanced industrial equipment where environmental resistance, reliability, and secure electrical connections are paramount.
Panel mount configuration with polarization prevents incorrect mating for safe assembly. The robust series D38999 III is widely recognized for advanced rugged connectors used in severe environments. Material and design comply with the MIL-DTL-38999 specification for dependable performance.
Includes strain relief to prolong cable life in demanding applications.
This Amphenol Limited D38999/24ZC35SN copper alloy straight 22 way panel circular connector is suitable for use in industrial manufacturing, defense systems, aerospace, telecommunications, and other commercial or military electronic interconnection systems. Browse the Mil Spec Circular Connectors category for related products and compatible mounting and cabling accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 550 volts and a current rating of 5 amperes, suitable for power and signal connections.
It operates reliably between -65°C to 200°C, making it suitable for harsh environmental conditions.
The housing is made from aluminium with electroless nickel plating, while the contacts are copper alloy with gold plating for high conductivity and corrosion resistance.
This connector features 22 female contacts, designed for secure electrical connections.
It utilizes crimp termination, which ensures secure connections and ease of installation.
Yes, it is designed for panel mounting, which facilitates secure installation in various applications.
The shell size of this connector is C13, which is part of its subminiature design.
It meets the MIL-DTL-38999 Series III military standard, ensuring reliability in severe environments.
This model incorporates a self-locking mating type, which helps prevent accidental disconnection.
It is suitable for use in military, aerospace, telecommunications, and advanced industrial equipment where environmental resistance is crucial.
The shell of this connector is silver in color, complementing its rugged industrial aesthetic.
Yes, it includes strain relief features to protect against cable stress and prolong cable life in demanding applications.
