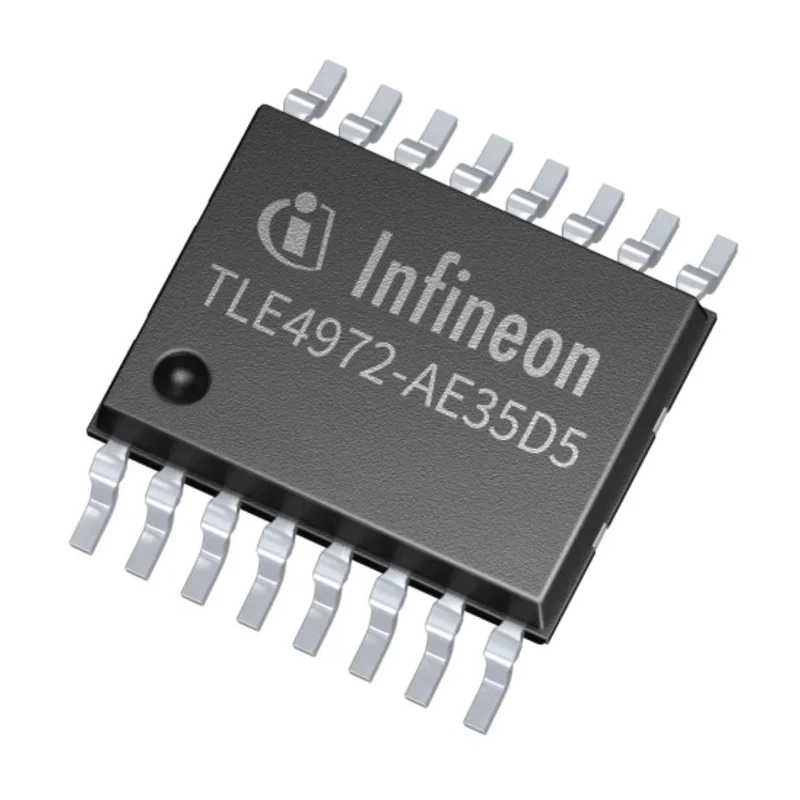

Infineon High Precision Current Sensor IC 16-Pin PG-TDSO-16 Package TLE4972AE35D5XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLE4972AE35D5XUMA1 |
| Mount Type | Surface |
| Bandwidth | 48.2kHz |
| Series | TLE4972 |
| Maximum Operating Temperature | 160°C |
| Package Type | PG-TDSO-16 |
| Minimum Operating Temperature | -40°C |
| Offset Voltage | 1.65 V |
| Standards/Approvals | AEC Q100 and ISO 26262, RoHS |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.5V |
| Minimum Supply Voltage | 3.1V |
Key Features
- High accuracy with scalable measurement for DC and AC currents.
- Low sensitivity error over temperature and device lifetime.
- Excellent offset voltage stability under varying temperature and aging conditions.
- High bandwidth of 48.2 kHz enabling fast response and low phase delay.
- Differential sensor principle providing strong magnetic stray field suppression.
- Two independent fast over-current detection outputs with typical response time of 0.7 μs.
- Operating voltage range from 3.1V to 3.5V supply voltage.
- Wide operating temperature range from -40°C to 160°C, suitable for automotive applications.
Product Description
Infineon TLE4972AE35D5XUMA1 is a highly reliable and precise miniature coreless magnetic Current Sensor IC designed for accurate AC and DC current measurement. Housed in a compact 16-pin PG-TDSO package, this sensor integrates two fast over-current detection pins for advanced system protection applications.
The device offers superior measurement performance with very low sensitivity errors across temperature ranges and operational lifetime. Its differential sensor design ensures excellent immunity to external magnetic stray fields, enhancing measurement accuracy in noisy industrial environments.
Operating at supply voltages between 3.1V and 3.5V, the sensor supports a bandwidth of 48.2 kHz that enables rapid response times and minimal phase delays, ideal for dynamic current monitoring in automotive and industrial systems.
With an offset voltage of 1.65 V and full-scale magnetic flux up to 31 mT, the sensor effortlessly handles high current applications while maintaining energy efficiency and low insertion resistance.
The device's wide temperature rating from -40°C up to 160°C along with compliance to automotive standards such as AEC-Q100 and ISO 26262 makes it particularly suited to rigorous automotive, industrial, and safety-critical applications.
High accuracy and scalability for both DC and AC current measurement. Fast dual over-current detection outputs enhance protection capabilities. Robust offset voltage stability ensures long-term reliable operation. Application versatility from automotive to industrial current sensing.
Compact PG-TDSO-16 package for space saving and easy PCB integration.
Ideal uses include industrial automation systems, power management, battery monitoring, and automotive current sensing modules. This Infineon TLE4972AE35D5XUMA1 sensor IC is a critical component for modern high precision current monitoring solutions.
Explore more sensors and semiconductor components for advanced electronic design and system integration with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for the TLE4972AE35D5XUMA1 is from 3.1V to 3.5V.
This model can operate at a maximum temperature of 160°C.
The bandwidth of this current sensor IC is 48.2 kHz, allowing for fast response and low phase delay.
It comes in a compact 16-pin PG-TDSO-16 package, suitable for surface mounting.
The TLE4972AE35D5XUMA1 operates within a temperature range of -40°C to 160°C.
The offset voltage for this model is 1.65 V.
This sensor complies with automotive standards AEC-Q100 and ISO 26262.
The differential sensor principle provides strong magnetic stray field suppression, enhancing measurement accuracy in noisy environments.
It is suitable for applications in automotive current sensing, industrial automation systems, power management, and battery monitoring.
This current sensor IC features a total of 16 pins.
The typical response time for the two independent fast over-current detection outputs is 0.7 μs.
The country of origin for this current sensor IC is India.
