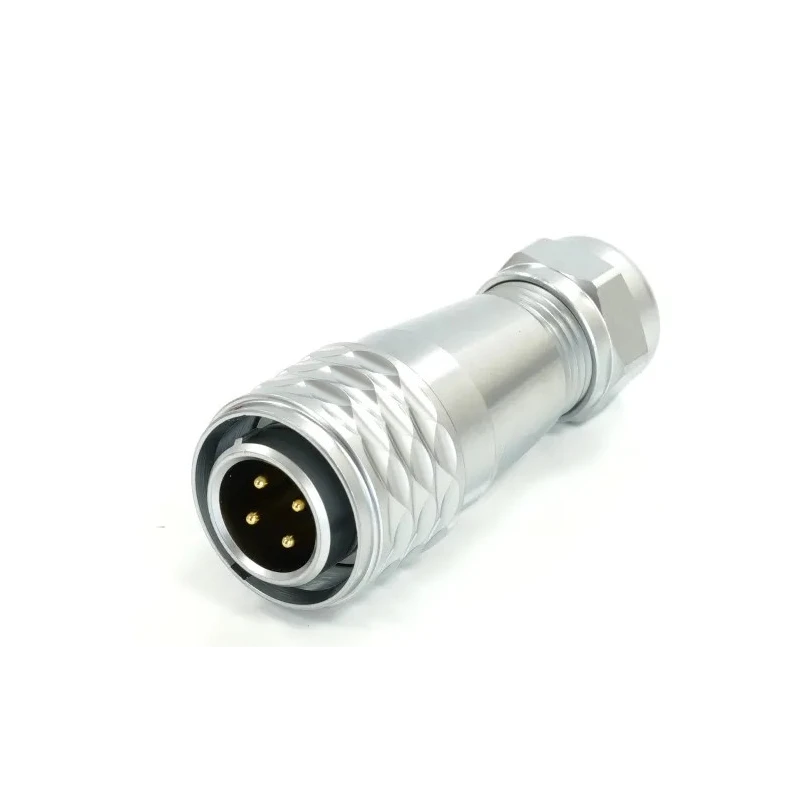

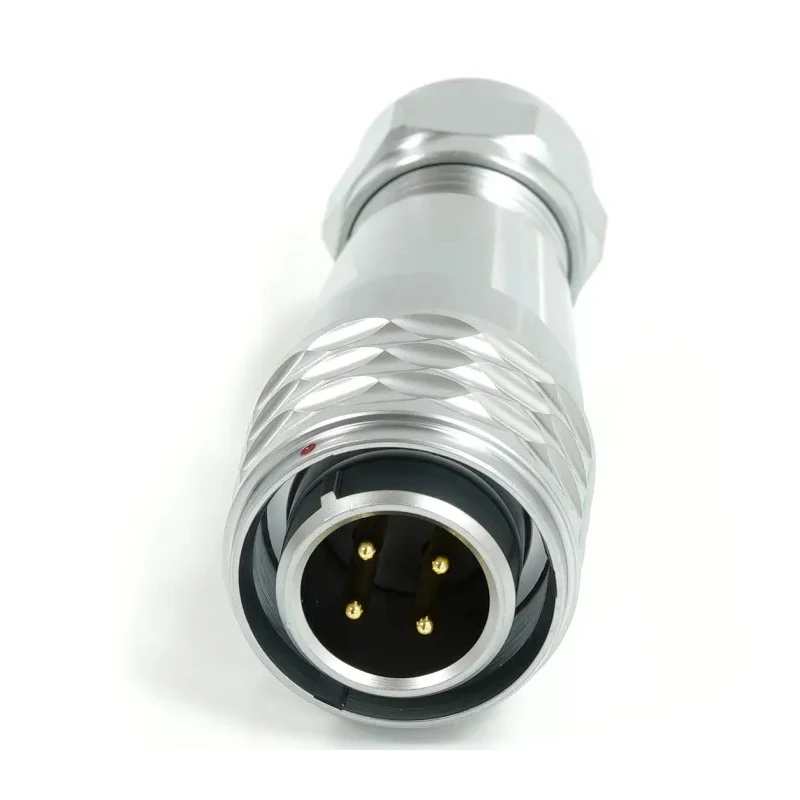

RS PRO Circular Connector 4 Contacts Cable Mount M16 Plug Male IP67 Chrome Plated Brass SF16 Series 233-8157
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 15A |
| Model | 233-8157 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | SF16 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | CE, RoHS |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Mating Type | Push Pull |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- Features 4 gold-plated brass contacts ensuring reliable electrical connectivity.
- Cable mount type with M16 connector size designed for industrial applications.
- Operating voltage of 500V and current rating of 15A for medium-duty environments.
- Constructed with chrome plated brass housing for corrosion and impact resistance.
- Push-pull mating type providing quick and secure coupling and decoupling.
- IP67 rated for waterproof sealing, suitable for harsh indoor and outdoor conditions.
- Temperature range from -40°C to 85°C allowing operation in extreme environments.
- Ideal for automation, robotics, process control, and testing equipment connections.
Product Description
RS PRO 233-8157 is a high-performance circular connector featuring 4 gold-plated contacts within a robust chrome plated brass housing. This cable mount M16 plug male connector offers industrial-grade reliability with IP67 waterproof protection, ensuring resistance against moisture, dust, and mechanical impacts.
Designed for harsh environments, it operates safely at voltages up to 500V and a current of 15A. The push-pull mating type allows quick and secure connections, reducing installation time while preventing mis-mating. Its solder termination and straight orientation facilitate straightforward wiring and integration.
Suitable for industrial applications including automation, robotics, process control, assembly lines, and test instrumentation, this connector withstands temperature extremes from -40°C to 85°C, making it fit for both indoor and outdoor use.
The chrome plated brass housing provides corrosion resistance and durability, enhancing performance in medium-duty conditions. Gold plated brass contacts maintain excellent conductivity and signal integrity.
Certified with CE and RoHS approvals, this connector aligns with industry safety and environmental standards. Its SF16 series design ensures compatibility with a range of existing standards and devices.
Features 4 gold-plated brass contacts ensuring reliable electrical connectivity. Cable mount type with M16 connector size designed for industrial applications. Operating voltage of 500V and current rating of 15A for medium-duty environments.
Constructed with chrome plated brass housing for corrosion and impact resistance. Push-pull mating type providing quick and secure coupling and decoupling. IP67 rated for waterproof sealing, suitable for harsh indoor and outdoor conditions.
Temperature range from -40°C to 85°C allowing operation in extreme environments. Ideal for automation, robotics, process control, and testing equipment connections. Termination type is solder, with a straight connector orientation for easy installation.
Complies with CE and RoHS standards ensuring quality and safety. Explore more in the Electronics & Electricals catalog at EnvMart for RS PRO connectors and related industrial electrical components.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this connector is 500V.
This model has a current rating of 15A.
It has an IP67 rating, providing waterproof sealing suitable for harsh conditions.
The housing is made of chrome plated brass, and the contacts are gold-plated brass.
It operates within a temperature range of -40°C to 85°C.
This connector uses a solder termination type.
It features 4 contacts.
The connector size is M16, and it is a male plug.
It utilizes a push-pull mating type for quick and secure connections.
It is suitable for applications including automation, robotics, process control, and testing equipment connections.
This connector complies with CE and RoHS standards.
The orientation of this connector is straight.
